• Integrated memory controller up to up to 32GB DDR4 2400 +ECC
• DDR4 +ECC soldered memory up to 16GB
• DDR4 +ECC SO-DIMM memory module socket up to 16GB

Mezzanine mass storage

• Mezzanine side card connectors for local expansion e.g. SSD mass storage
• Low profile mezzanine modules available (4HP common front panel)
• Side cards available (8HP common F/P assembly)
• P-HSE1 – configurable as 4 x SATA 6G or 4 x PCIe® Gen3 (from CM238 PCH), 1 x USB3
• P-HSE2 – 4 x PCIe® Gen3 (from CM238 PCH) & 3rd DisplayPort™ (from CPU)
• P-EXP – Legacy interface (from PCH)

• 4HP Low profile mezzanine module preferred options:

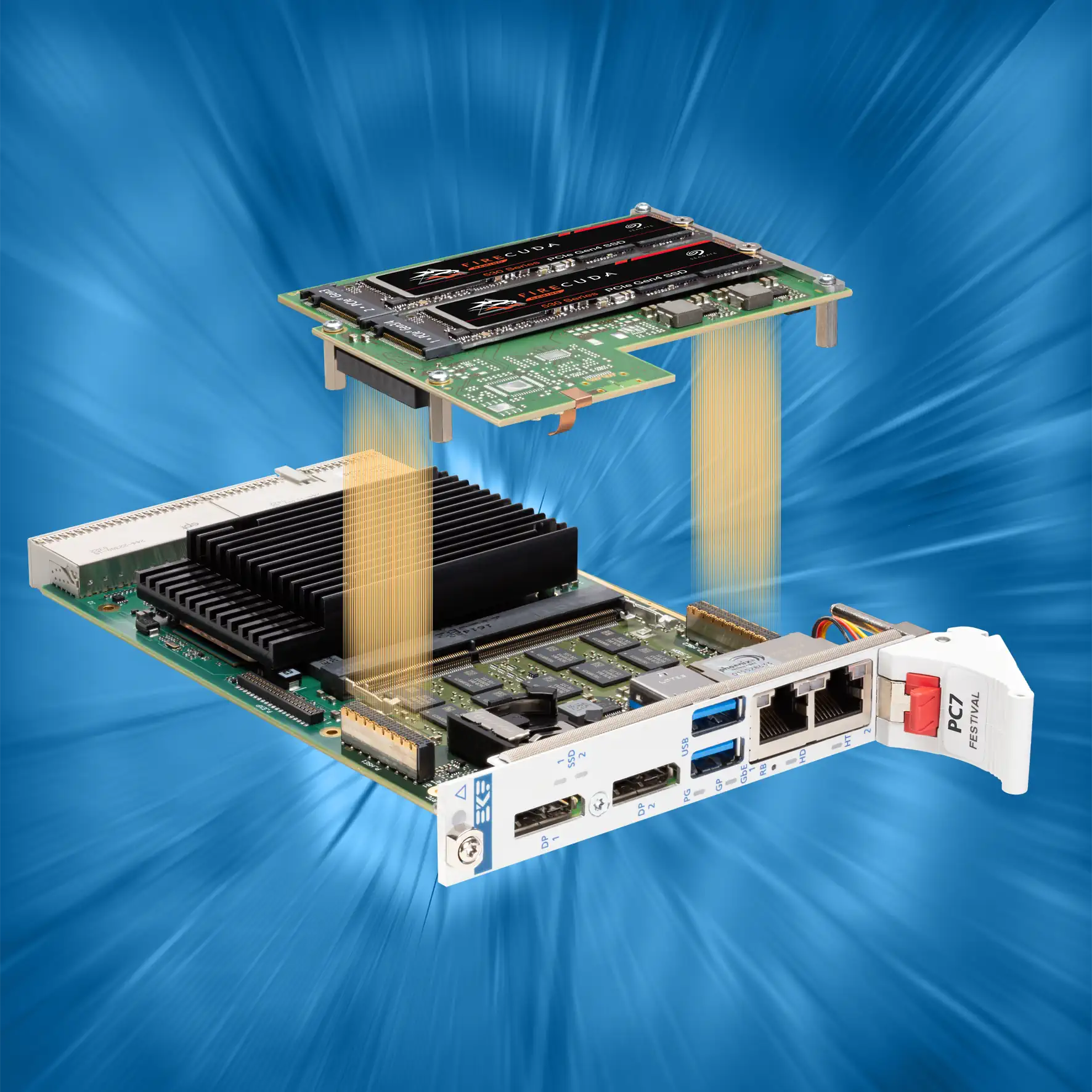

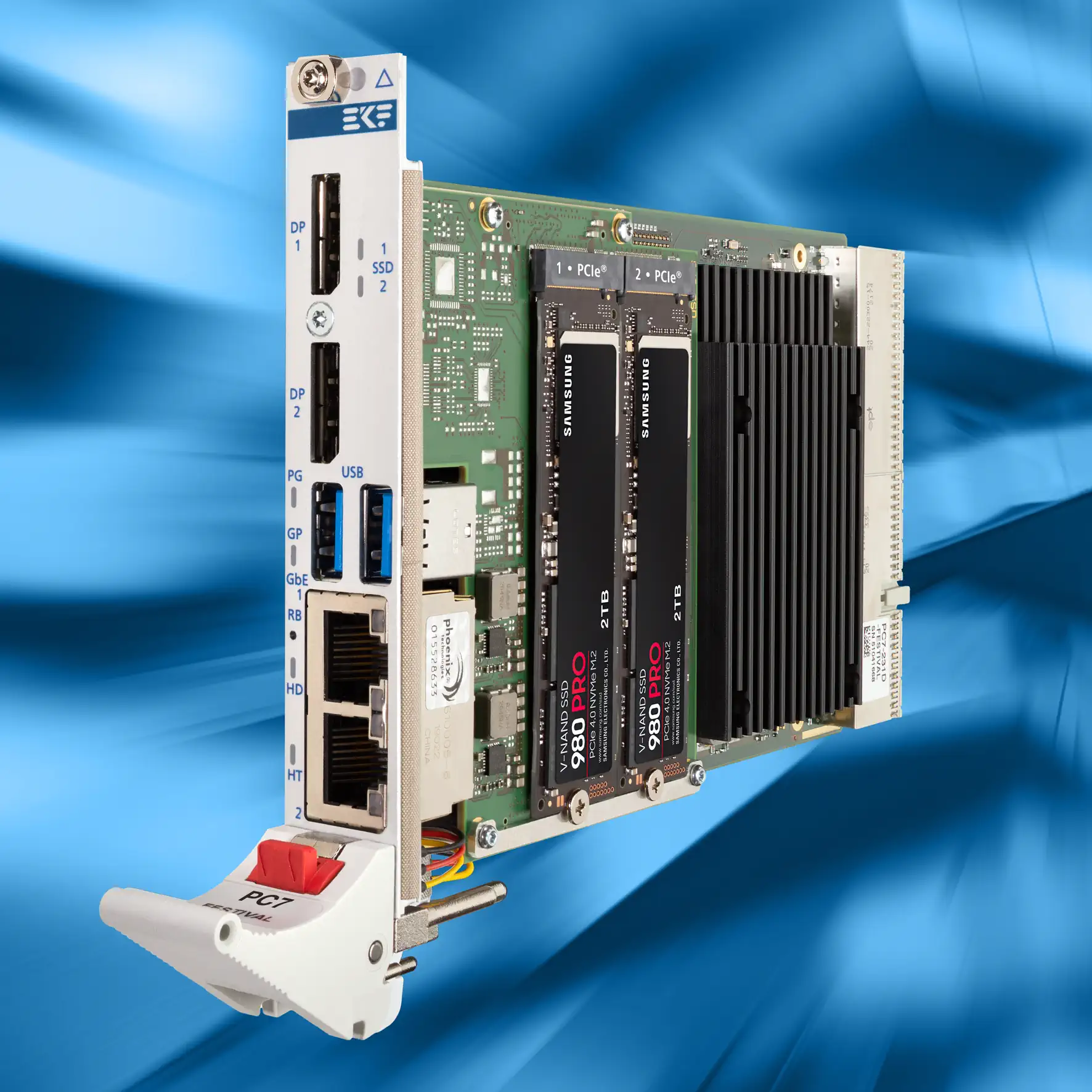

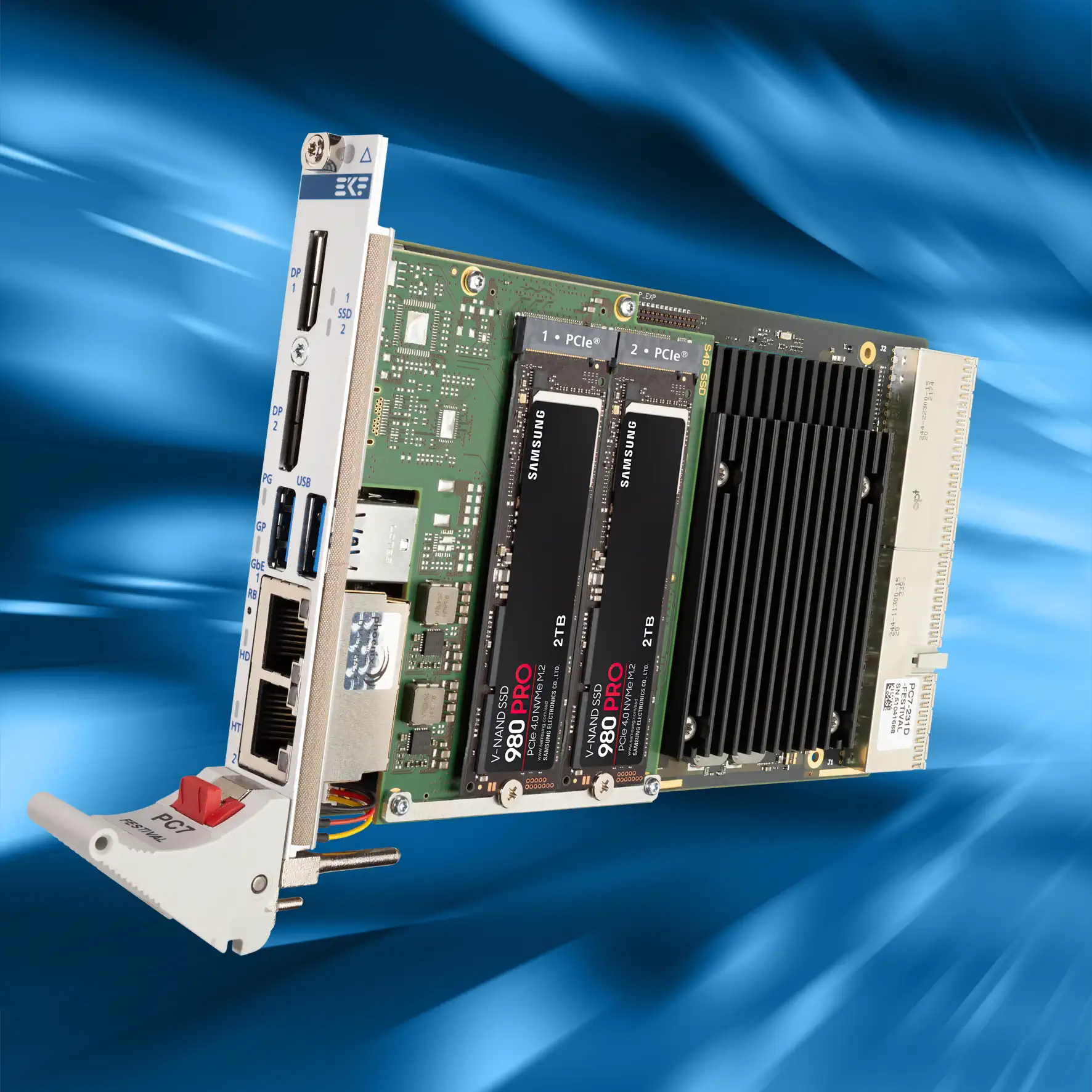

• C48-M2 Mezzanine module – 2 x M.2 2280 SATA SSD sockets

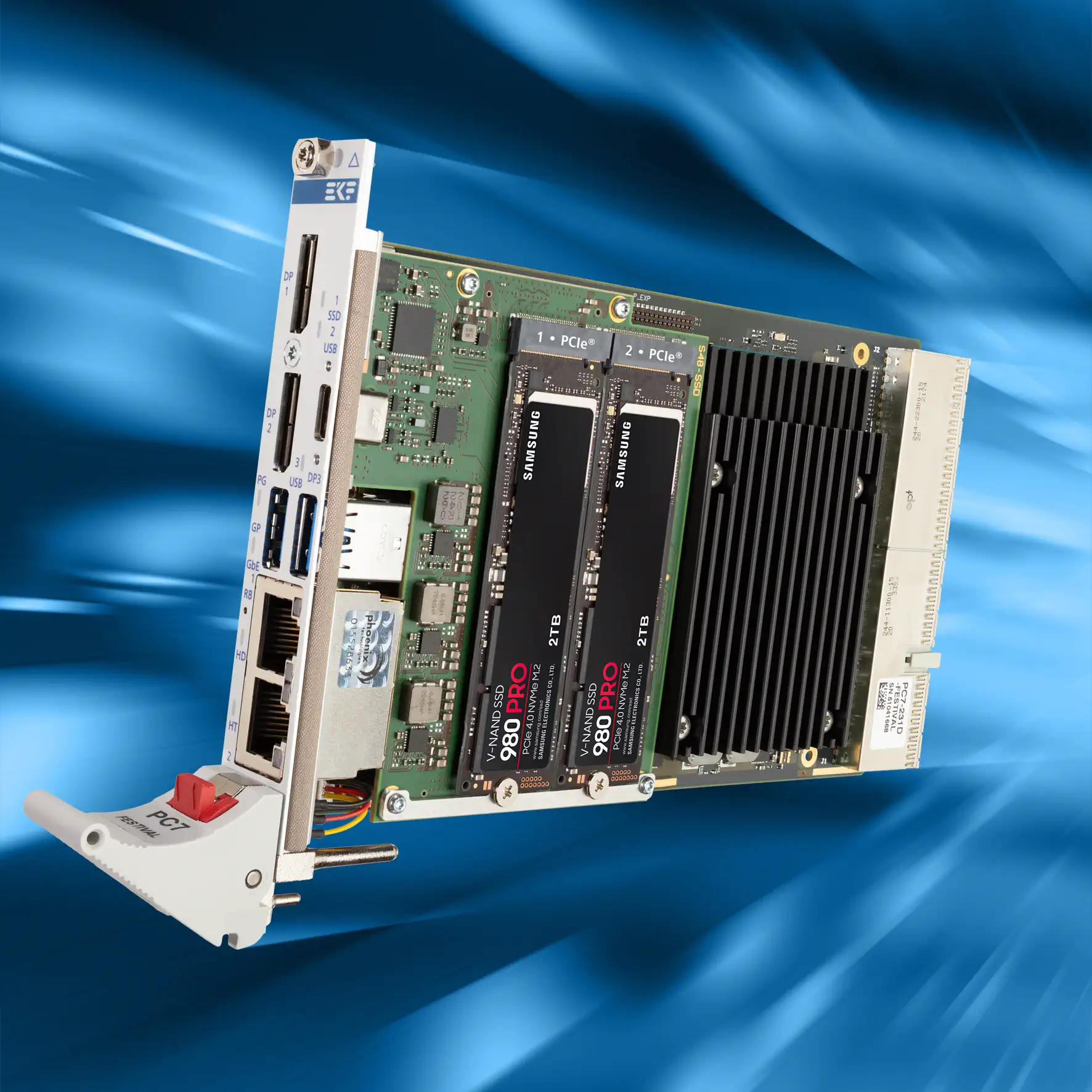

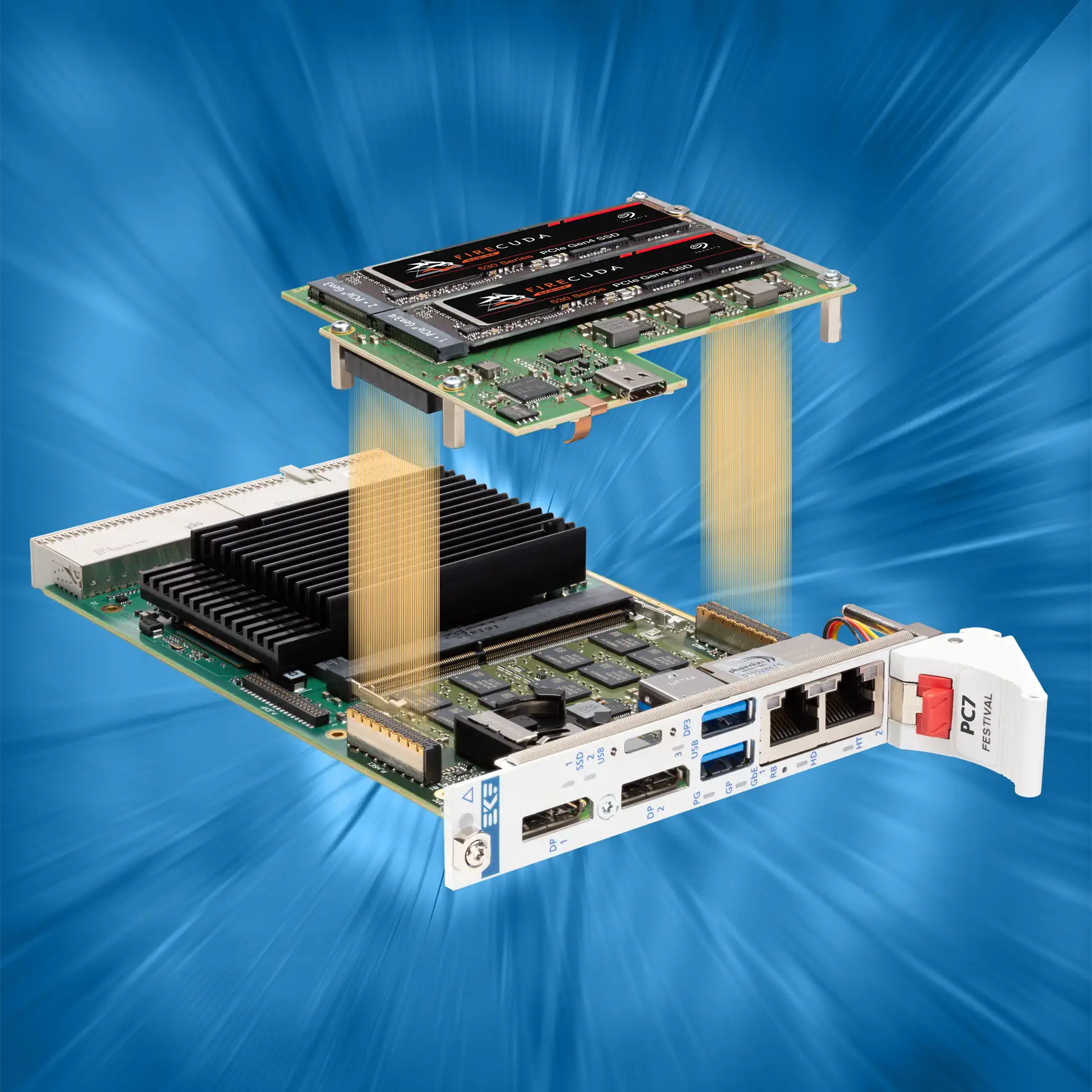

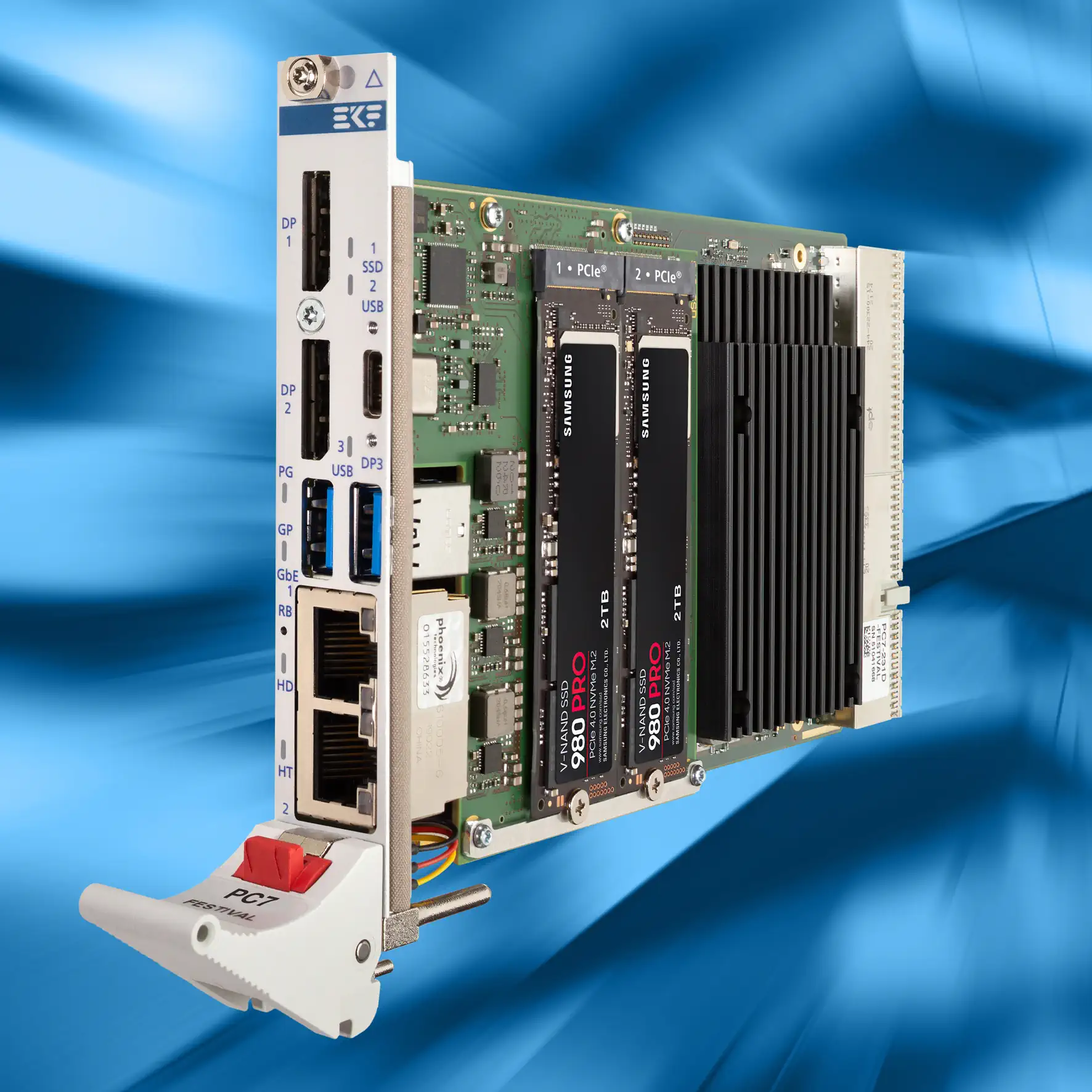

• S48-SSD – 1 x M.2 2280 NVMe® SSD socket, 1 x M.2 2280 NVMe® or SATA SSD socket (autosense), 1 x Type-C USB F/P connector (enabled for DisplayPort alternate mode)

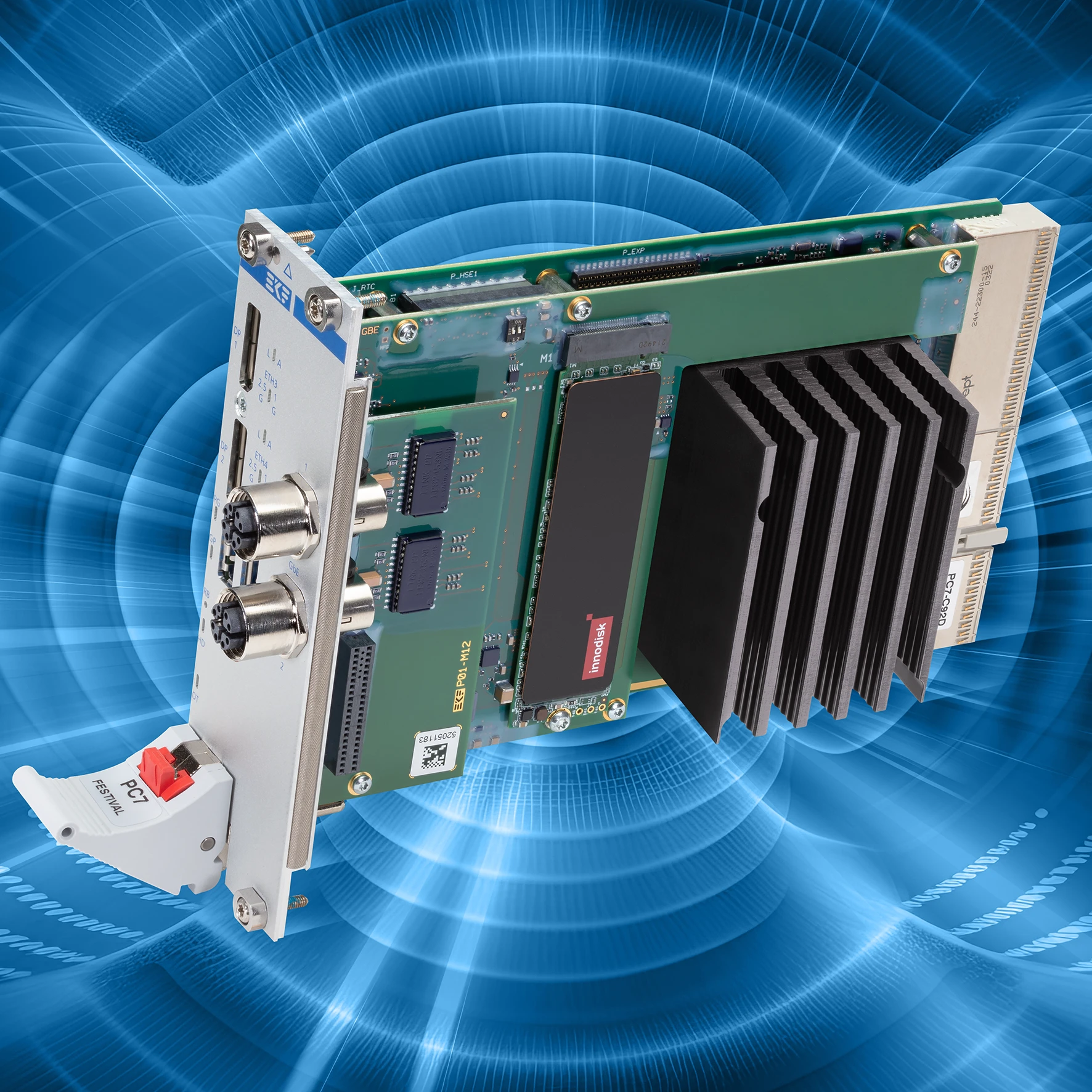

• P82-GBE – 2 x 2.5GBASE-T for J2 backplane connector, 1 x M.2 2280 NVMe® SSD socket

• 8HP/12HP Mezzanine side card options:

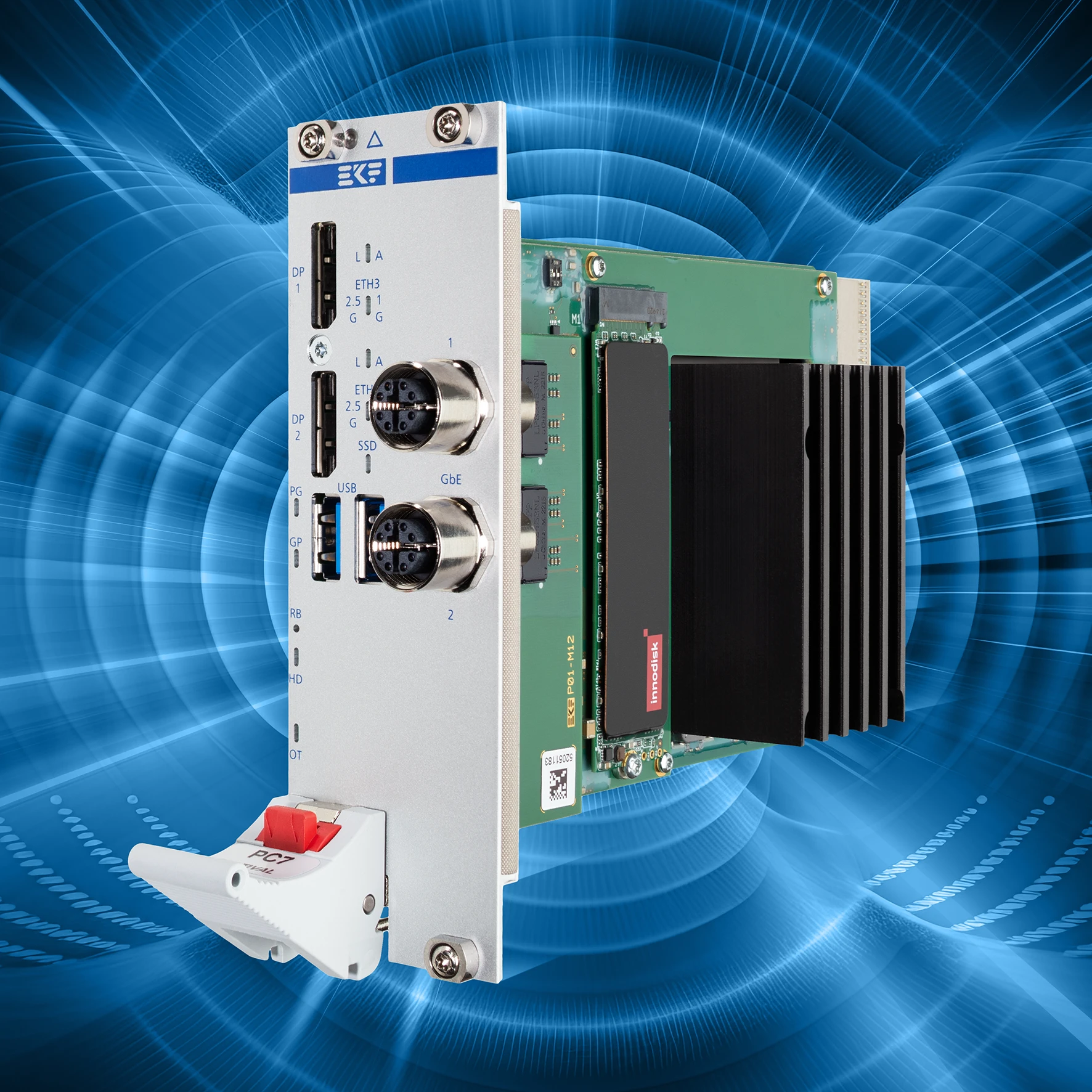

• P01-M12 Replacement for RJ45 GbE jacks by M12-X receptacles
• PCU-UPTEMPO – Side board w. 2 x M.2 SATA SSD sockets & front I/O

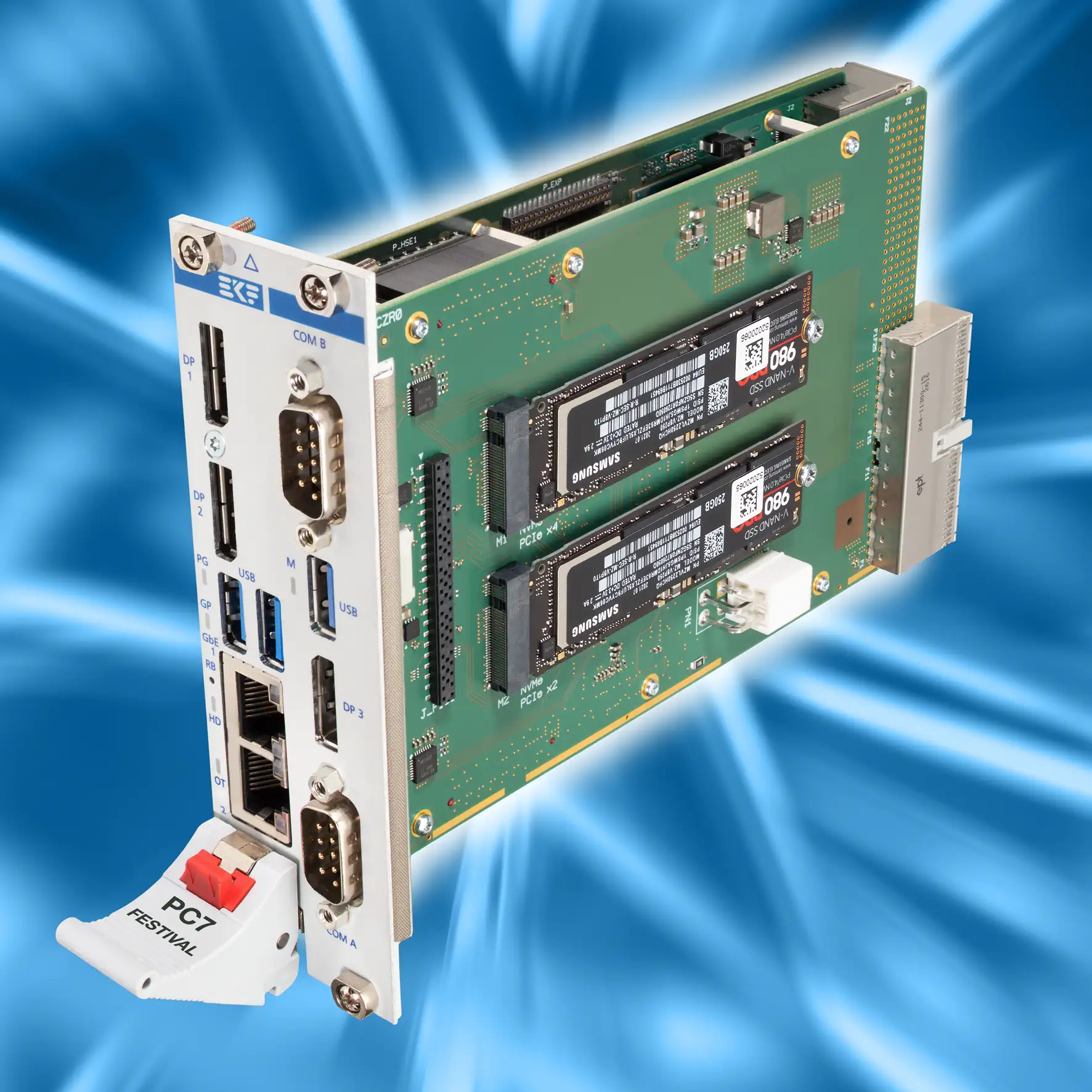

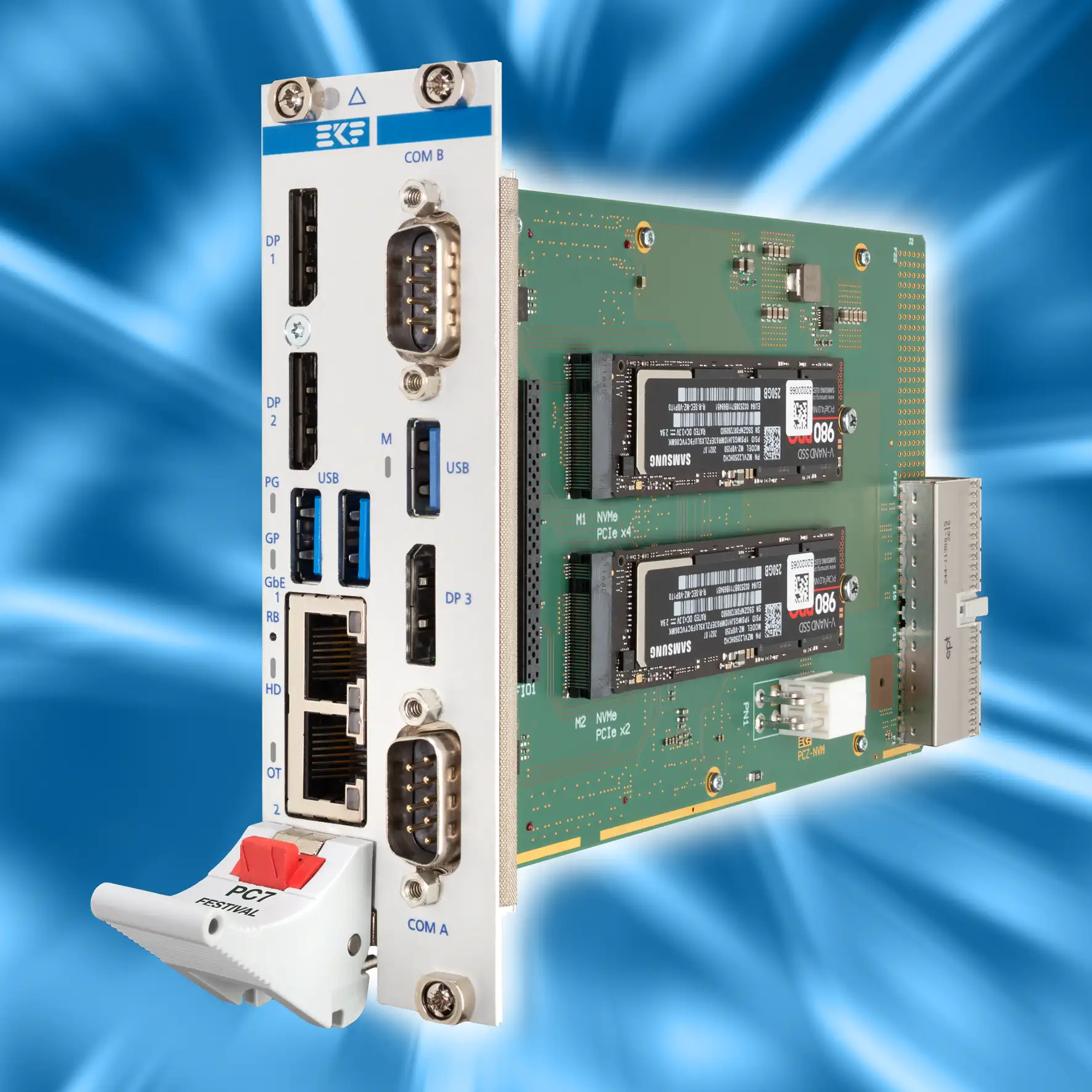

• PCZ-NVM – Side board w. 2 x M.2 NVMe® SSD sockets & front I/O

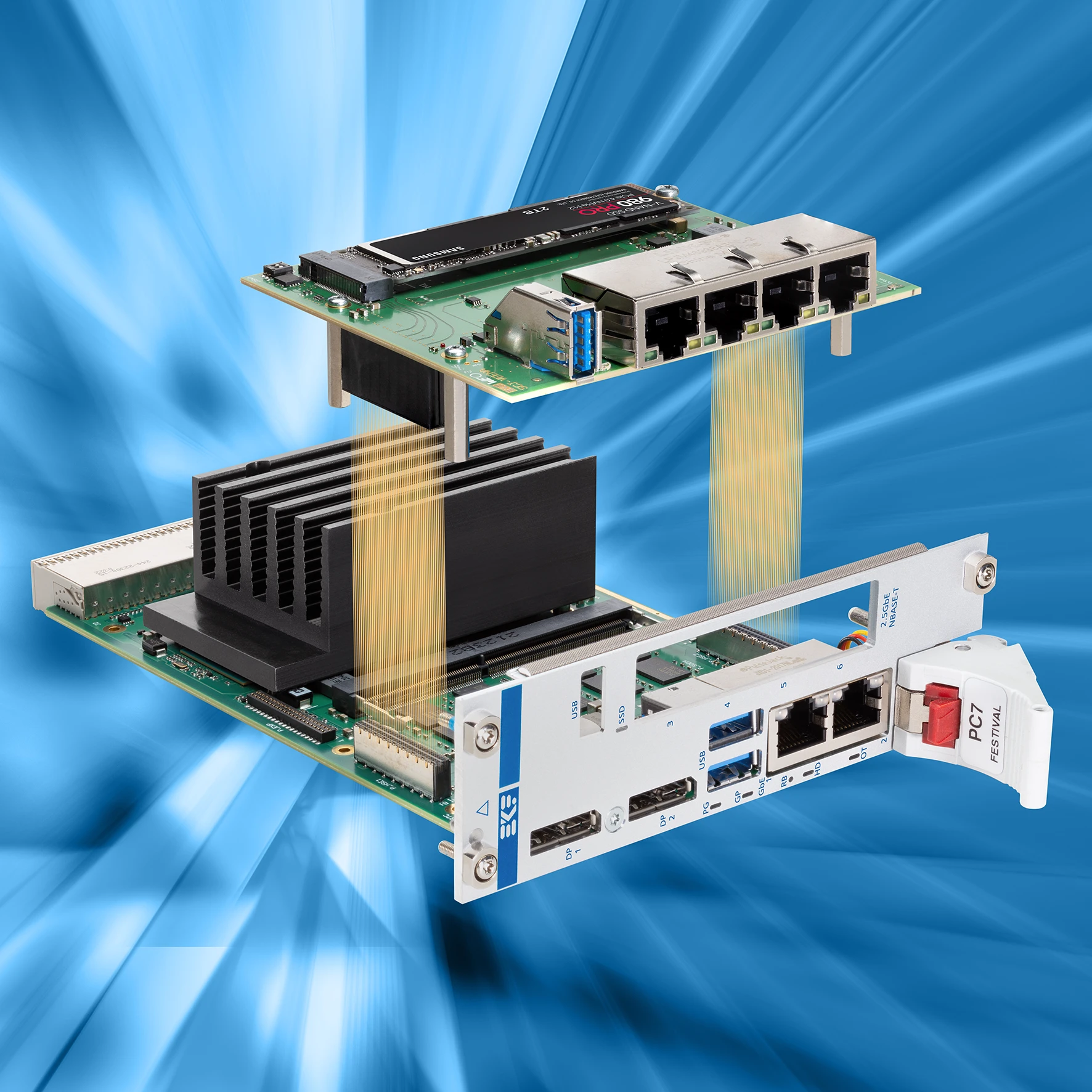

• SCJ-VEENA – M.2 NVMe® or SATA SSD socket (autosense), quad 2.5GBASE-T Ethernet RJ45 jacks
• SCL-RHYTHM – M.2 NVMe® or SATA SSD socket (autosense), quad 1000BASE-T Ethernet M12-X ports

• Custom specific side card design – I/O and storage

Front I/O 4HP

• 2 x Gigabit Ethernet RJ45 (1 = PCH & I219LM – Intel® AMT support, 2 = I210IT)
• 2 x DisplayPort™ (from processor integrated HD graphics engine, standard DP latching receptacles)
• 2 x USB 3.0 Type-A

• Option Type-C USB 3.1 Gen1 w. S48-SSD low profile mezzanine module
• Support for Type-C locking plugs (dual screw) according to the ‘Locking Connector Spec. Rev. 1.0’
• DisplayPort™ Alt Mode on Type-C connector (3rd video monitor output)

Addition Front I/O 8HP

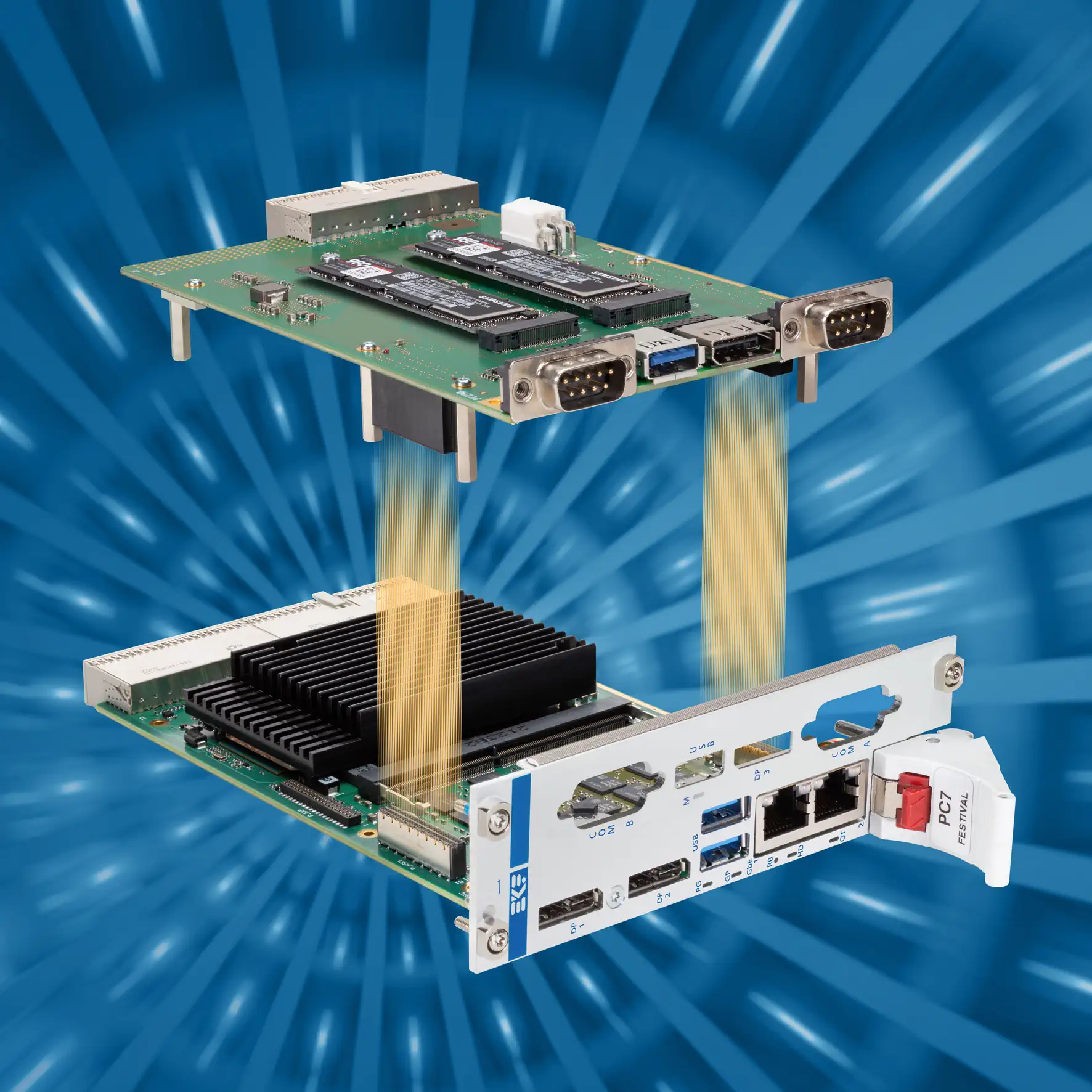

• Option RS-232, USB3, DisplayPort™ w. PCZ-NVM side card

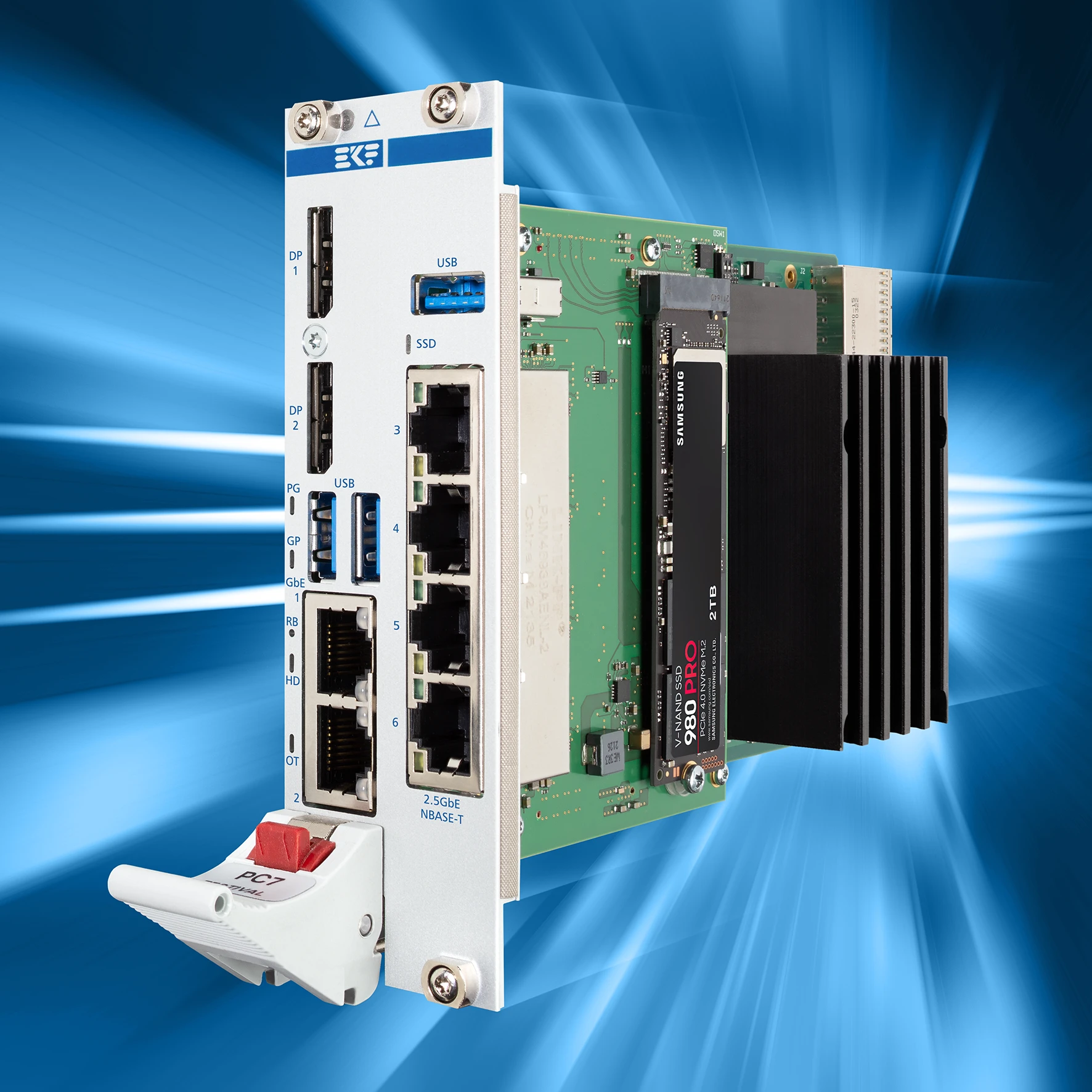

• Option quad port 2.5GbE RJ45 jacks w. SCJ-VEENA side card

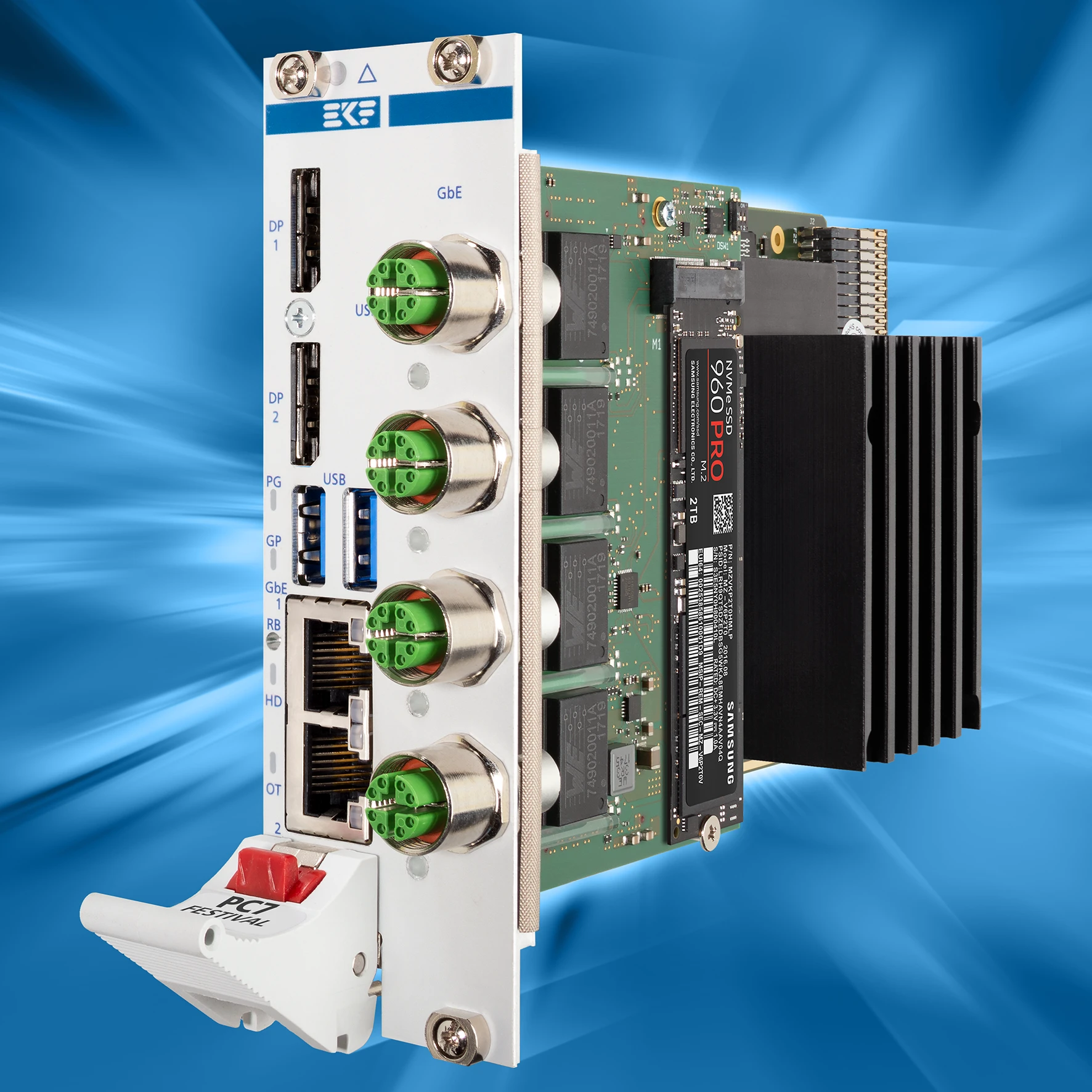

• Option quad port 1GbE M12-X receptacles w. SCL-RHYTHM side card

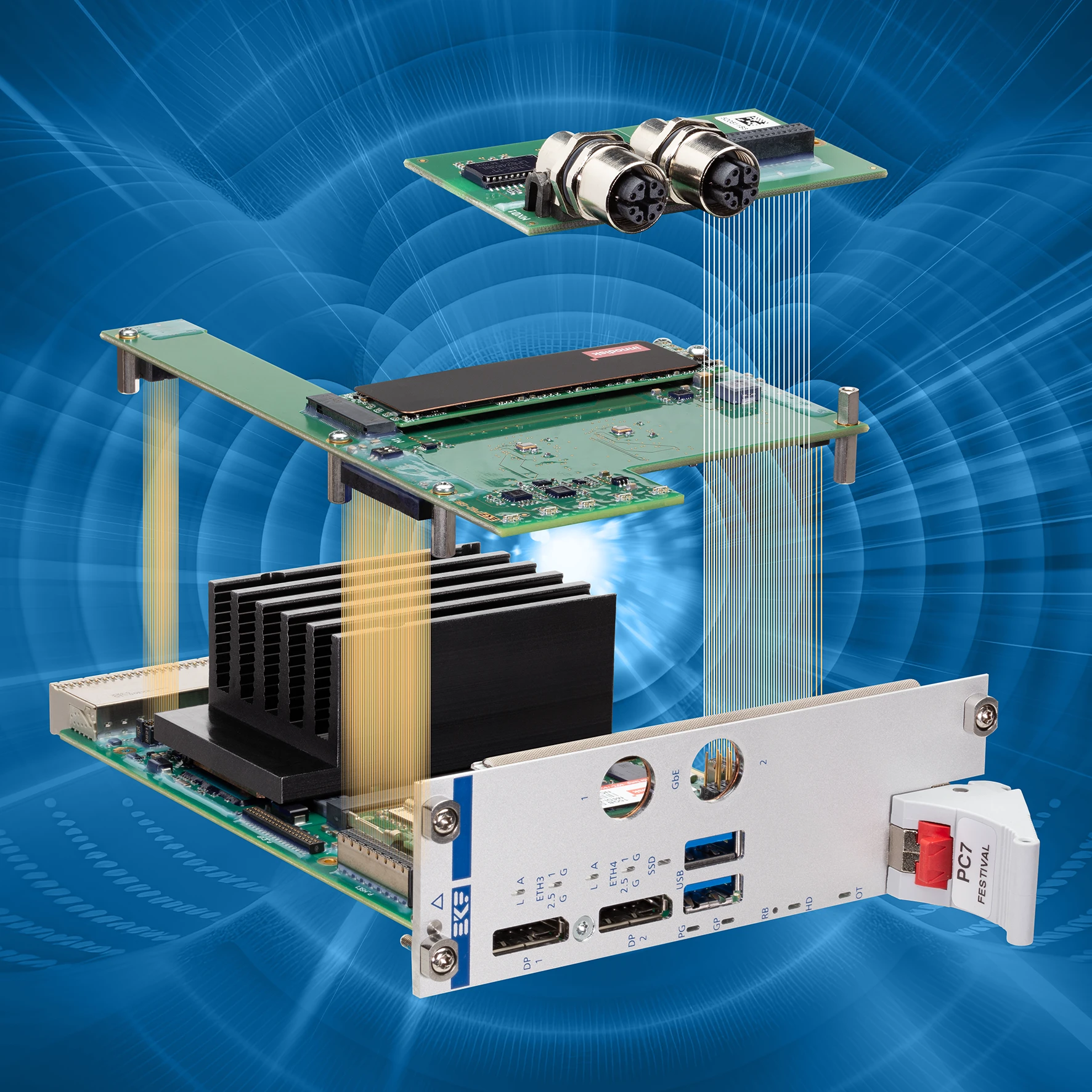

• Option 2 x M12 X-coded receptacles for Gigabit Ethernet (P01, as replacement for RJ45)
• Option RS-232, HD-Audio, USB w. PCU-UPTEMPO side card
• Custom specific front panel and side card design

• Intel® CM238 Mobile Workstation Platform Controller Hub (PCH)
• PCIe® Gen3 8GT/s
• SATA 6G
• USB3
• GbE
• SPI, LPC, Audio, Legacy

• Trusted Platform Module
• Discrete TPM 2.0 for highest level of certified platform protection
• Infineon Optiga™ SLM 9670 cryptographic processor
• Conforming to TCG 2.0 specification
• Option fTPM (firmware-based TPM 2.0) or dTPM (discrete TPM) selectable from UEFI (BIOS) setup
• AES hardware acceleration support (Intel® AES-NI)

• +5V, +3.3V according to CompactPCI® 2.0 via J1 backplane connector
• Total power consumption depends on processor type and mezzanine assembly
• +5V only board design for low cost system power supply with all 25W processors *
• SAC (Stand-Alone Computer) option w. two-pos. 5V/10A terminal block (J1/J2 removed)

* option different SKUs available with 25W processors for +5V/3.3V backplane supply – specify when ordering • on request: PC7-FESTIVAL +5V only can deliver +3.3V to backplane for CompactPCI® peripheral boards

• Integrated graphics engine, 3 symmetric independent displays
• 3D HW acceleration DirectX12, OpenCL 2.x, OpenGL 4.3/4.4, ES 2.0
• HW video decode/encode HEVC10b 10-bit, VP9 10-bit, JPEG
• HDR (High Dynamic Range) Rec. 2020 Wide Color Gamut
• Content protection
• UHD premium content playback
• Front panel options: Dual DisplayPort™ (DP) connectors
• 3rd DisplayPort™ optional via Type-C connector on low profile mezzanine card S48-SSD
• Max resolution 4096 x 2304 @60Hz (any DisplayPort, concurrent operation)
• DisplayPort™ 1.2 Multi-Stream Transport (MST) – display daisy chaining
• MST max resolution via single DP connector 2880×1800@60Hz (2 displays), 2304×1440@60Hz (3 displays)
• Integrated audio (3 independent audio streams)

• Designed & manufactured in Germany
• Long term availability
• Rugged solution
• Coating, sealing, underfilling on request
• Lifetime application support
• Operating temperature 0°C to +70°C
• Operating temperature -40°C to +85°C (industrial temperature range) on request
• Storage Temperature: -40°C to +85°C, max. Gradient 5°C/min
• Humidity 5% … 95% RH non Condensing
• Altitude -300m … +3000m
• Shock 15g 0.33ms, 6g 6ms
• Vibration 1g 5-2000Hz
• MTBF 21.2 years

• EC Regulatory EN55035, EN55032, EN62368-1
• ISO 9001 certified quality management
• RoHS compliant 2002/95/EC

• General industrial computing, ready for x86 based software
• IIoT applications, edge computing, networking
• Medium to high embedded CPU performance
• CompactPCI® Classic systems upgrade
• CompactPCI® Serial peripheral card expansion
• Stand-Alone Computer (SAC)

• Up to four networking interface controllers (NIC), 1000BASE-T, 100BASE-TX, 10BASE-T connections
• Port 1 equipped w. I219LM PHY (suitable for Intel® AMT)
• Port 2 equipped w. Intel® I210-IT -40°C to +85°C operating temperature GbE controller w. integrated PHY
• IPv4/IPv6 checksum offload, 9.5KB Jumbo Frame support, EEE Energy Efficient Ethernet
• IEEE 802.1Qav Audio-Video-Bridging (AVB) enhancements for time-sensivitive streams
• IEEE 1588 and 802.1AS packets hardware-based time stamping for high-precision time synchronization
• Option 2 x 2.5GbE over J2 backplane connector with P82-GBE low profile mezzanine module
• RJ45 front panel jacks (option 2 x M12-X with mezzanine module P01)
• Option quad 2.5GbE RJ45 front panel ports with SCJ-VEENA side card (8HP front panel width)
• Option quad 1GbE M12-X front panel ports with SCL-RHYTHM side card (8HP front panel width)
