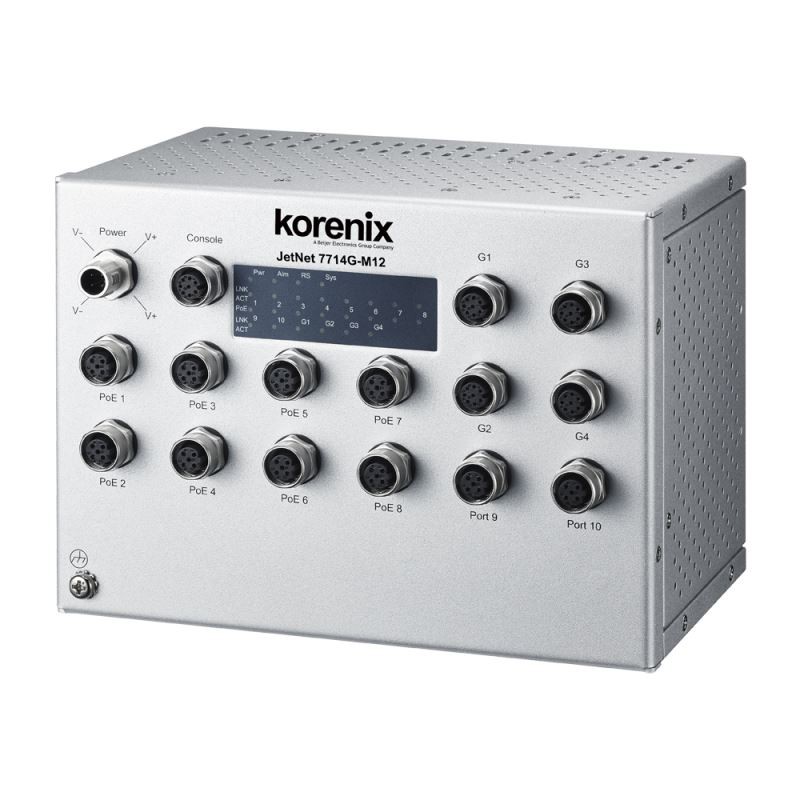

JetNet 7714G-M12 HVDC

Industrial 10 FE/8 4GbE, Managed L3 Routing Switch

Tính năng chính

10 ports Fast Ethernet M12-D, 4 Gigabit M12-A
8 IEEE 802.3at PSE embedded in Fast Ethernet
Non-Blocking, High Speed Network Switching Fabric
EN50155 Railway on-board power system design
Network Redundancy – MSR (Multiple Super RingITU-T G.8032 ERPS, RSTP, MSTP, Super Chain
Fully Device Management – SNMP v1/v2c/v3, RMON, Web UI, Telnet and Local Console
Friendly Device and Network Topology recovery utility – Korenix View, Korenix NMS
Advanced Network Security –MAC security, IEEE 802.1x Port Based access control IEEE 802.1x Radius Server authentication, 802.1x MAB, Deny of Service, IP Source Guard, Deny of ARP Inspection
Layer 2 Network Performance – IEEE802.1Q VLAN, Private VLAN, Trunk, Traffic Filtering, DHCP Server/Client, Traffic Prioritize, Forwarding Rate Control
Layer 3 Network Routing Protocols – Static/Dynamic Route Multicast Routing
Hardware Watchdog for -Recovery
High Level Electromagnetic interference immunity

Giá sản phẩm: Liên hệ

The JetNet 7714G-M12 is a Layer-3 routing Switch with 10 ports Fast Ethernet M12-D, 4 ports Gigabit Ethernet M12-A interfaces, and the Fast Ethernet also embedded 8 ports PSE for application. The system supports wide range power input to compliance most of modern train, and secure the passengers’ safety isolated electrical power system design. The system also design with Ingress protect grade 30 to offer anti-dust, water-proof, anti-vibration/shock for the MRT trains. The 8 PSE interface enabled system powering remote IP cameras, low power 3G/LTE/WiFi device through Ethernet cable. With the JetNet 7714G L3 Switch, it can train Ethernet communication system.

*Ordering Information

JetNet 7714G-M12 HVDC Industrial Gigabit Ethernet L3 PoE M12 Switch, 10 ports FE/M12-D with 8 PoE injectors, 4 ports GbE/M12-A, DC110V Power input

Each Unit include:

JetNet 7714G-M12 x1
Quick Installation Guide
Panel Mounting Ear x2

Technology	IEEE 802.3 10 Base-T Ethernet IEEE 802.3u 100 Base-TX Fast Ethernet IEEE 802.3ab 1000 Base-T IEEE 802.3x Flow Control and Back-pressure IEEE 802.1AB Link Layer Discovery Protocol (LLDP) IEEE 802.1p Class of Service (CoS) IEEE 802.1Q VLAN and GVRP IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.3ad Link Aggregation Protocol (LACP) IEEE 802.1x Port Based Network Access Protocol
Interface	Enclosure Port - 1000 Base-T/Gigabit Ethernet (Port #1): 8 x M12-X Code 8-pin Female (JetNet3508G-LVDC) - 1000 Base-T/Gigabit Ethernet (Port #1): 1 x M12-X Code 8-pin Female (JetNet3508-LVDC) - 10/100 Base-T/TX Fast Ethernet (Port #2~#8): 7 x M12-D Code 4-pin Female (JetNet3508- LVDC) - M12-X (Conductor #): (#1) 0P(D1+), (#2) 0N(D1-), (#3)1P(D2+), (#4)1N(D2-), (#5)3P(D4+) (#6)3N(D4-), (#7) 2N (D3-), (#8) 2P (D3+) - Power: M12 A-Code 5-pin Male LED Indicators - Port 1~8: Link (Green on)/Activity (Green Blinking) - Power: System Power Ready (Green on), Ignition function Activity ( Green Blinking)
Performance	14,880pps for Ethernet and 148,800 for Fast Ethernet, 1488,100 for Gigabit Ethernet
Approval/Compliance	Railway Standard: EN50155, EN 50121-4, EN50121-3-2 Traffic: E-mark E13 10R-05 14802 EMC EMI: EN50121-3-2, FCC Class A, IEC/EN61000-6-4 EMS:EN50121-3-2/EN50121-1, IEC/EN61000-6-2 IEC/EN61000-4-2, IEC/EN61000-4-3, IEC/EN61000-4-4, IEC/EN61000-4-5, IEC/EN61000-4-6, IEC/EN61000-4-8, IEC/EN61000-4-9 Variation/Shock IEC 61373 Free Fall IEC 60068-2-32 with package Note-1 Warranty 5 Years
Environmental	Operating temperature -40~70°C: 100Watts with PoE Loading Operating humidity 0%~90%, non-condensing Storage Temperature 40~85°C Hi-Pot: AC 1KV for Power- Enclosure Interface
MTBF	379,940 hrs
Power Requirements	System Power: Input voltage: DC 12V or DC 24V, variation range DC 9- 36 V Power consumption: 6 Watts @ DC 24V without PD loading
Mechanical	Installation: Wall Mounting Dimensions: 145.2mm(H) x 198mm (W) x 120mm (D)-without mounting ears 145.2mm(H) x 230.6mm (W) x 120mm (D)–with mounting ears Material Housing: Steel Metal with Aluminum Heat Sink Ingress Protection: IP30 protection
