Switch mạng điện lực IEC 61850-3 JetNet 6828Gf-2DC48 V1.0

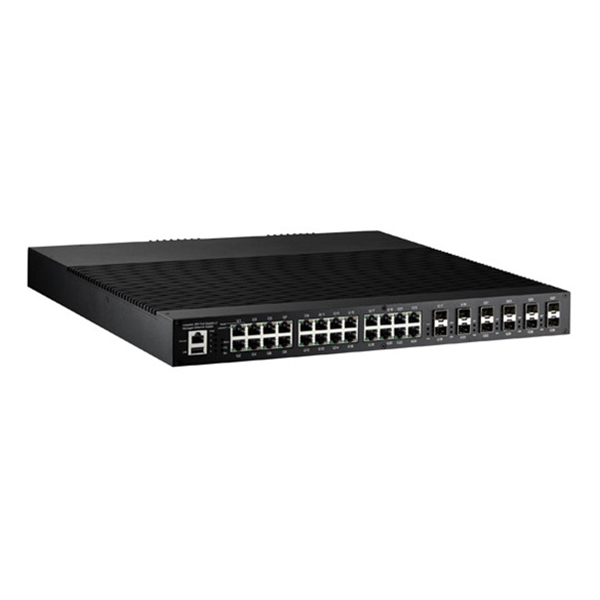

JetNet 6828Gf-2DC48 V1.0

Industrial 28G L3 Full Gigabit Managed Ethernet Switch

Tính năng chính

16 10/100/1000Base-(T)X 8 100/1000 RJ-45/SFP combo ports 4 Gigabit SFP ports
Advanced Cyber Security – DHCP Snooping IP Source Guard Dynamic ARP Inspection ACL L2/L3/L4
Redundancy – MSR ITU-T G.8032 ERPS
USB Firmware upgrade and configuration backup and restore
IEEE 1588v2 PTP with HW time stamping
Compliance with EN50121-4

Giá sản phẩm: Liên hệ

Technology	L3 protocols L3 routing: IPv4/IPv6 routing RIPv1/v2 OSPF v2 Multicast routing: IGMP Mroute VRRP gateway redundancy: Yes SW/Protocol Management: IPv6 RSTP/MSTP: Yes Traffic priority (QoS): 8 Queues/port VLAN, P-VLAN, QinQ, GVRP: 4k VLANs IGMP query, snooping, GMRP: Yes IEEE 802.1AB LLDP network discovery: Yes IEEE 802.3ad LACP, static trunk: Yes IEEE 1588 PTP v1/v2: Yes Jumbo frame/MAC address: 9.2Kbytes/16K Port mirroring: Yes DDM SFP: Yes IEEE 802.1x, IP/port security/SSL/HTTPS,SSH/Telnet: Yes TACACS+, Radius: Yes Industry protocol (ModBus/ TCP,EtherNet/IP): Modbus/TCP EtherNet/IP SNMP/RMON/Trap: Yes CLI/Web/Telnet: Yes Routing: Yes
Interface	Total ports number: 28 10/100/1000TX ports: 16 100/1000M combo: 8 Fiber ports: 4 x 1000M SFP ports DI/DO (dry relay): DO Console/USB: RS 232/USB DC power input: 2xDC48(36-75VDC)
Approval/Compliance	Regulatory/approval: CE/FCC/EN50121-4 /IEEE1613 /IEC61850-3
Environmental	Operating temperature: -40~75°C
Features	Switch type: L3 Managed Network redundancy: MSR MultiRing TrunkRing RDH SuperChain ERPS Broadcast storm protection: Yes Security: IPv4/IPv6 ACL L2/L3/L4 DHCP server (Opt82, port based): Yes
Mechanical	Housing/protection (IP): IP40 Dimension (HxWxD mm): 44 x 438 x 375 Mounting: Rackmount
Management	Layer 3
Hãng	BEIJER ELECTRONICS
