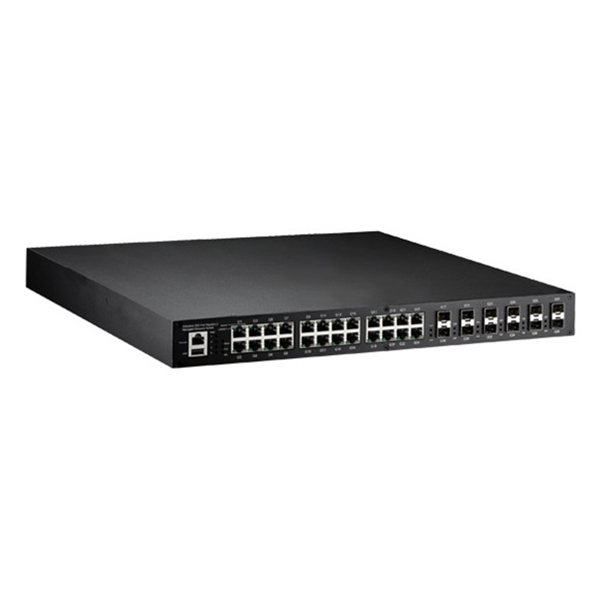

Switch mạng điện lực IEC 61850-3 JetNet 6528Gf-AC-EU V1.0

JetNet 6528Gf-AC-EU V1.0

Industrial 28G Full Gigabit Managed Ethernet Switch AC Input

Tính năng chính

Giá sản phẩm: Liên hệ

Technology	SW/Protocol Management: IPv6 RSTP/MSTP: Yes Traffic priority (QoS): 8 Queues/port VLAN, P-VLAN, QinQ, GVRP: 4k VLANs IGMP query, snooping, GMRP: Yes IEEE 802.1AB LLDP network discovery: Yes IEEE 802.3ad LACP, static trunk: Yes IEEE 1588 PTP v1/v2: Yes Jumbo frame/MAC address: 9.2Kbytes/16K Port mirroring: Yes DDM SFP: Yes IEEE 802.1x, IP/port security/SSL/HTTPS,SSH/Telnet: Yes TACACS+, Radius: Yes Industry protocol (ModBus/ TCP,EtherNet/IP): Yes SNMP/RMON/TrapYesCLI/Web/Telnet: Yes
Interface	Total ports number: 28 10/100/1000TX ports: 16 100/1000M combo: 8 Fiber ports: 4 x 1000M SFP ports Console/USB: RS 232/USB AC power input: 1xAC110/220 (90-264V)
Approval/Compliance	Regulatory/approval: CE/FCC/EN50121-4 /IEEE1613 /IEC61850-3
Features	Switch type: L2 Managed Network redundancy: MSR MultiRing TrunkRing RDH SuperChain ERPS Broadcast storm protection: Yes Security: ACL L2/L3 DHCP server (Opt82, port based): Yes
Mechanical	Housing/protection (IP): IP40 Dimension (HxWxD mm): 44 x 438 x 375 Mounting: Rackmount Operating temperature: -40~75°C
Standards	IEC 61850-3
Hãng	BEIJER ELECTRONICS

DATASHEETS
