SRB 100

Smart robot gateway, maximum robot connections: 2

Tính năng chính

Robot connectivity: YASKAWA, KUKA, ABB, FANUC, TM, UR
R2M communication: Modbus TCP, TCP/IP
R2C communication: OPC UA, MQTT
Supports ROS applications

Giá sản phẩm: Liên hệ

NexCOBOT’s SRB (Smart Robot Box) is a series of robot gateways that connects with major industrial robots. Through Modbus, TCP/IP, OPC, and MQTT protocols, users can easily integrate robot information to HMI, SCADA, or the cloud to implement M2M (machine-to-machine)/M2C (machine-to-cloud) communication.

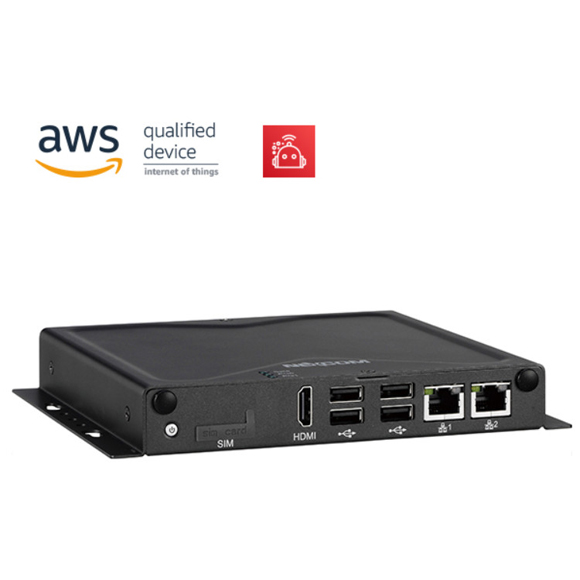

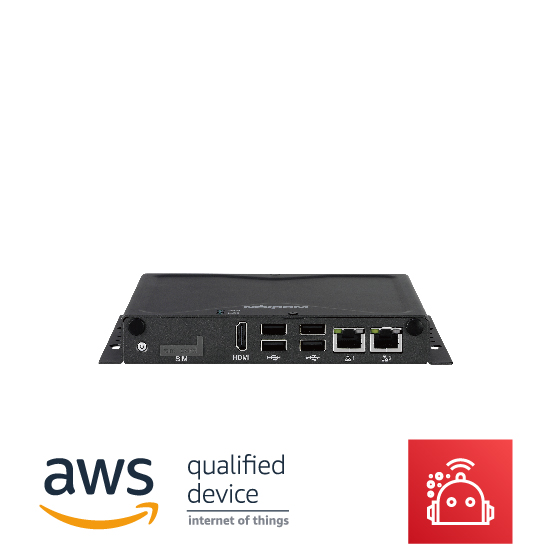

Front I/O Interface	ATX power on/off switch 1 x Storage/2 x GPO programmable LED 1 x SIM card holder 2 x Intel® I210-AT GbE LAN ports; support WoL, teaming and PXE 1 x HDMI display output 4 x USB 2.0 (500mA per each) 2 x Antenna holes for optional Wi-Fi/3.5G antenna
Rear I/O Interface	3 x DB9 for COM1 & COM2 & COM3 - COM1: full RS232 signal - COM2: RS-232, only support Tx/Rx/GND - COM3: RS422/485 auto flow control 1 x Line-out Support 24V DC input
Display	1 x HDMI display
Expansion	4 x GPI and 4 x GPO (programmable to GPI or GPO) 1 x DB9, only support RS232, Tx/Rx/GND single
Power	Power input: 24V DC +/-20% 1 x Optional 24V, 60W power adapter
Environment	Operating temperature: Ambient with air flow: -5°C to 55°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C to 75°C Relative humidity: 10% to 95% (non-condensing) Shock protection: mSATA/EMMC: 50G, half sine, 11ms, IEC60068-2-27 Vibration protection w/ mSATA or EMMC condition: - Random: 2Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Certifications	CE FCC Class A
Physical Characteristics	162mm (W) x 26mm (H) x 150mm (D) without wall-mount bracket
Internal I/O	4 x GPI and 4 x GPO (programmable to GPI or GPO) 1 x DB9, only support RS232, Tx/Rx/GND single
Robot Connectivity	Supported Robots: YASKAWA, KUKA, ABB, FANUC, TM,UR Supported Protocols: Modbus TCP, OPC UA, MQTT Supported Functions: Read parameter,*Write command (2020 Q2) Max Number of Connected Robots: 2

DATASHEETS

SRB100_Datasheet_20200203.pdf

[ SRB100_Datasheet_20200203.pdf , 0.67MB , Jan.19.2024 ]
