Song Bung 4 Hydropower Plant: Application of All-in-One Panel PC in Vibration Monitoring System

In the era of industrial digital transformation, control and monitoring systems at hydropower plants increasingly demand high-performance, stable, and 24/7 operational equipment that can withstand harsh environments. At the Song Bung 4 Hydropower Plant, the NEXCOM IPPC 1880P All-in-One Panel PC has been implemented to support the vibration monitoring system for turbine units H1 and H2 — enhancing operational stability and safety.

Digital Transformation at Song Bung Hydropower Company

Song Bung Hydropower Company has been deploying comprehensive digital solutions to monitor equipment performance and predict anomalies. These efforts enable proactive maintenance, repair, and replacement when necessary to ensure system reliability.

The dam and environmental safety monitoring systems are operated continuously, while disaster prevention and rescue plans are regularly updated and practiced under the “Four On-Site” principle — ensuring absolute safety for both the infrastructure and downstream areas.

IPPC 1880P in the Vibration Monitoring System

The NEXCOM IPPC 1880P is an industrial-grade All-in-One Panel PC designed specifically for automation and industrial monitoring applications.

Key Features:

• 18.5” multi-touch display for intuitive operation

• Intel® Core™ i5 processor for high-performance computing

• IP66-rated front panel for dust and water resistance, ideal for factory environments

• Fanless design to reduce dust ingress and extend lifespan

• Rich I/O interface: 2x LAN, 4x USB, 3x COM, 2x DP, etc.

• Flexible mounting options: panel, wall, stand, or 100x100mm VESA

The IPPC 1880P is widely used across industries such as energy, manufacturing, and transportation

Real-World Implementation at Song Bung 4

In the vibration monitoring system of turbine units H1 and H2, the NEXCOM IPPC 1880P serves as the central display terminal (HMI).

System components include:

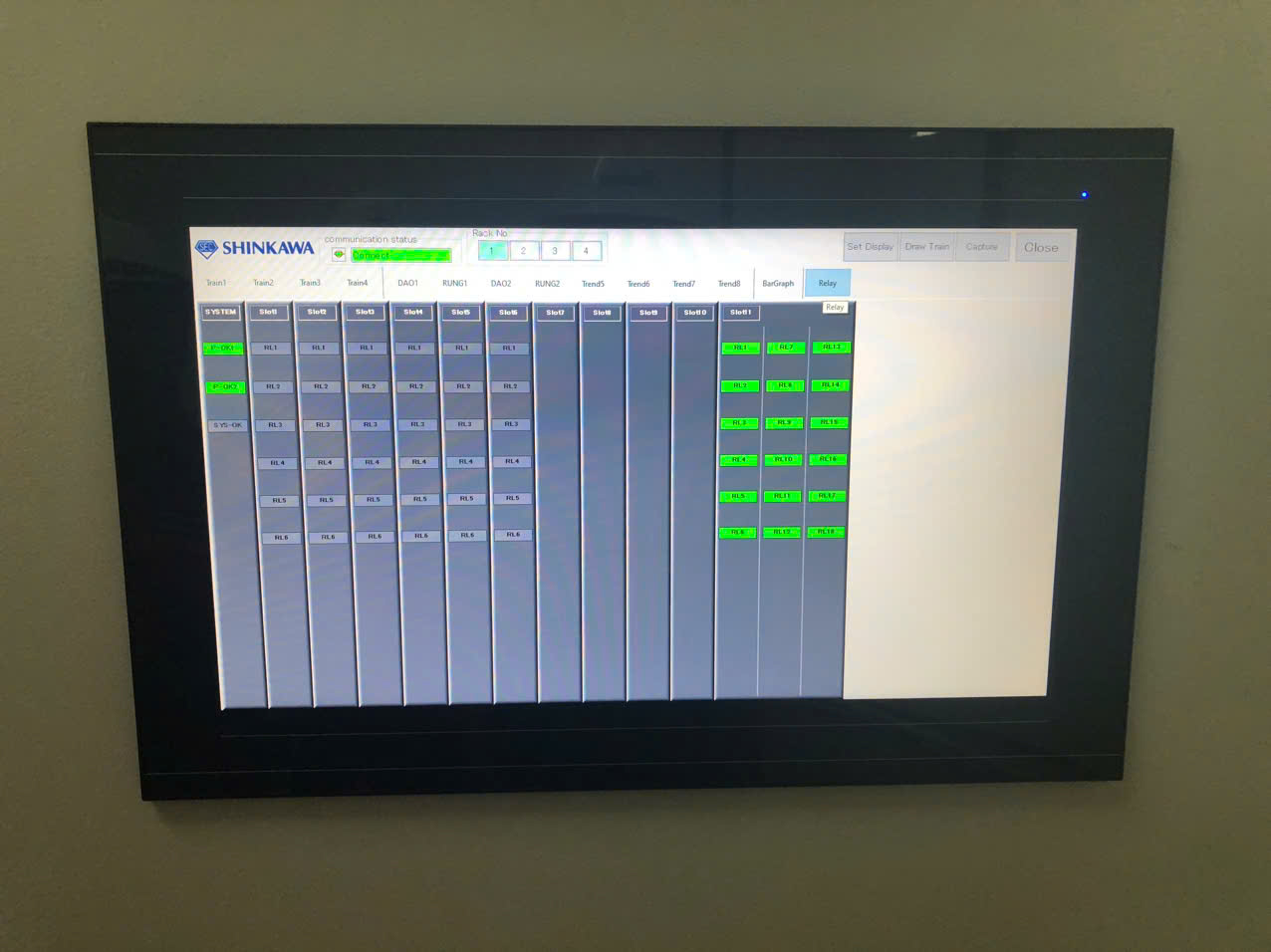

• SHINKAWA monitoring software, which visualizes vibration data, frequency, and alarm signals in real time.

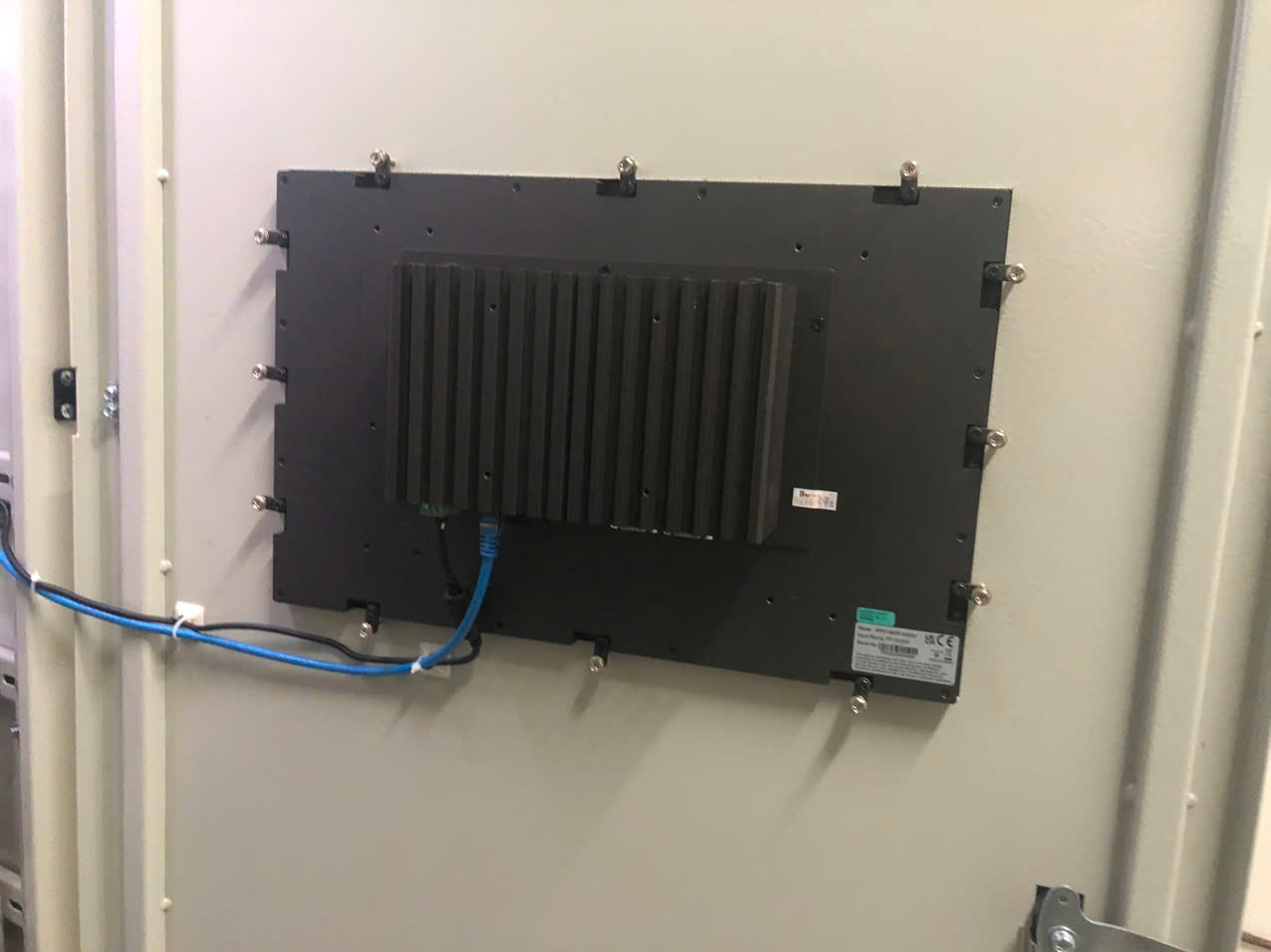

• The IPPC 1880P is installed in the central control cabinet, allowing operators to monitor the generator and turbine conditions directly on-site.

• The device ensures stable continuous operation under high temperature and humidity conditions, with Ethernet connectivity for real-time data transmission to the control center.

Advantages of Using NEXCOM IPPC 1880P

• High performance: Smoothly handles vibration monitoring and signal analysis software.

• Industrial durability: Meets operational standards in hydropower environments with dust, humidity, and mechanical vibration.

• Compact all-in-one design: Saves cabinet space and simplifies maintenance.

• Wide compatibility: Supports multiple industrial communication standards and operating systems.

On-Site Installation

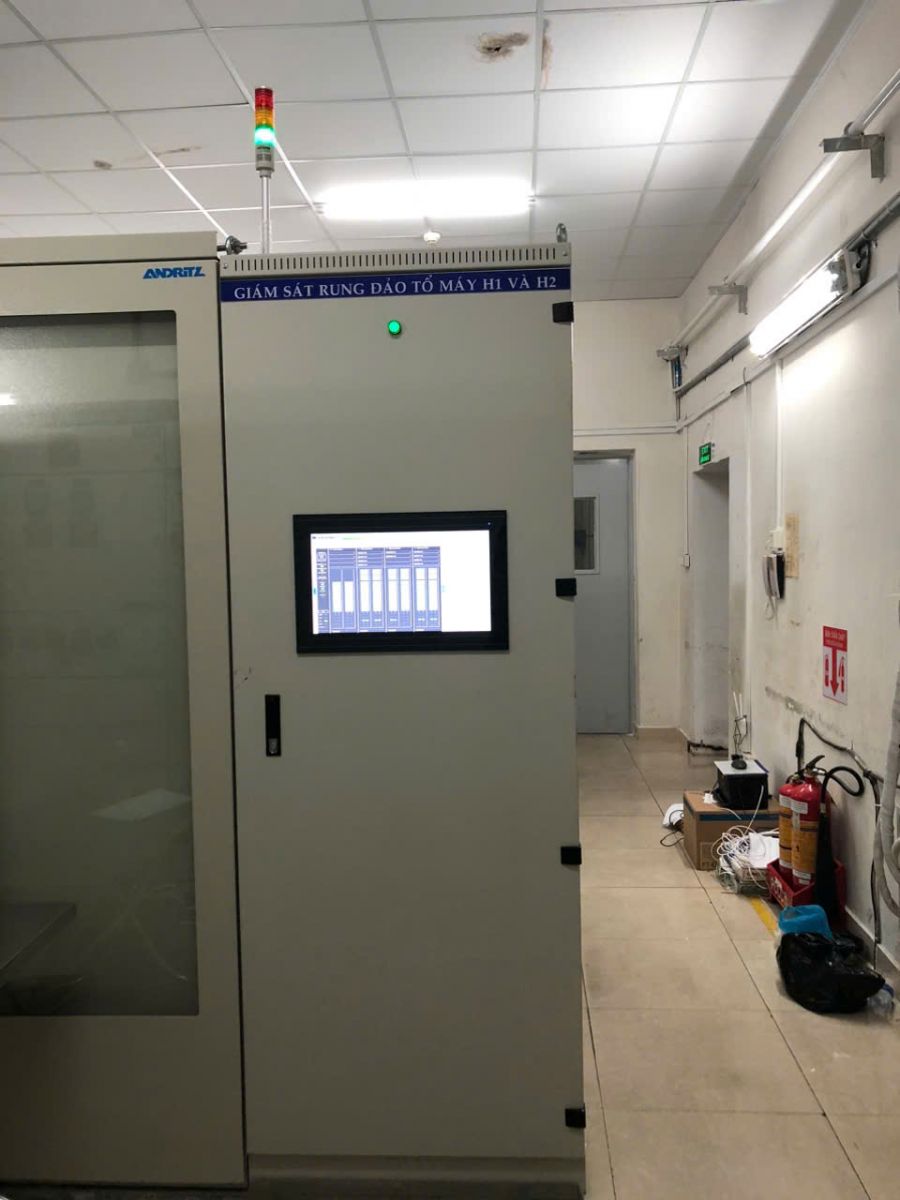

Below are real-world images of the vibration monitoring setup for turbine units H1 and H2 at the Song Bung 4 Hydropower Plant:

(Insert project photos here)

The All-in-One Panel PC IPPC 1880P enhances management efficiency, ensures equipment safety, and optimizes preventive maintenance.

A Reliable and Flexible Solution for Industrial Automation

The IPPC 1880P proves to be a stable, flexible, and well-suited solution for SCADA, HMI, energy monitoring, and industrial automation systems in Vietnam.

With extensive experience in deploying industrial-grade solutions, ICOMTECK is ready to provide consultation and implementation support for Industrial Displays, Touch Panel PCs, and Industrial Ethernet Switches.

Contact ICOMTECK for configuration advice and detailed quotations.
