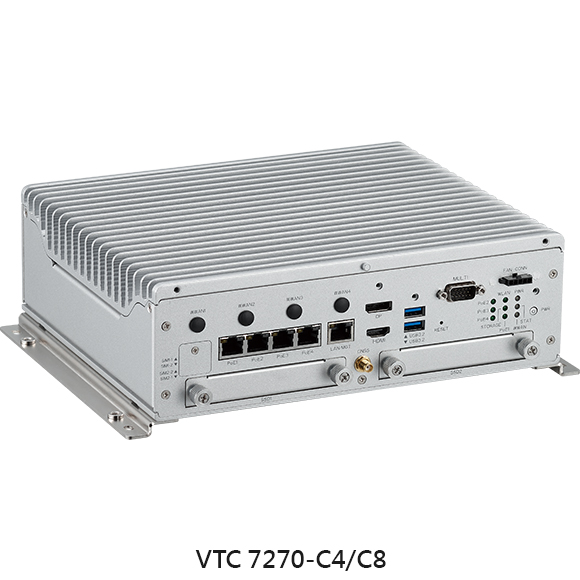

VTC 7270-C4/C8

Fanless AI Powered Vehicle Computer with 12/13th Gen Intel® Core™ CPU

Tính năng chính

  • Powered by 12/13th Gen Intel® Core™ i with DDR5, excellent memory bandwidth, lower latency
  • Rich I/Os, 4/8 x 2.5GbE PoE+, 1 x GbE, 6 x USB 3.2, 2 x CAN FD & 4 x Serials
  • Up to 4 WWAN/WLAN combinations for mobile router applications
  • 2 x 2.5” SSD, 1 x NVMe ultra-speed SSD for data integrity
  • Up to two Hailo AI accelerator (26TOPS workload each) as optional
  • 9~36V DC-IN with ignition control & OCP/OVP
  • Wide range operating temperature of -35°C~65°C (fanless@35W CPU)
  • Military standard for anti-vibration/shock
  • CE/FCC, UKCA, Emark Certified

Giá sản phẩm: Liên hệ

Lượt xem 38

VTC 7270-C4/C8 là máy tính viễn thông trên xe được trang bị bộ xử lý Intel® Core™ Gen.12/13, cung cấp sức mạnh tính toán cao hơn 30% so với phiên bản trước. Đây là một lựa chọn phù hợp cho nhiều ứng dụng trên xe như quản lý đội xe, hậu cần/AMR, ITS, công trình xây dựng, ANPR và giám sát an ninh.
Để hoạt động như AI biên, người dùng có thể cài đặt modem LTE/5G, mô-đun Wi-Fi 5/6 và bộ tăng tốc Hailo AI (26TOPS) để triển khai các dịch vụ AI cộng tác với đám mây SaaS.

* Thông tin đặt hàng

 VTC 7270-C4 (P/N: 10V00727001X0)
12/13th Gen Intel® Core™ , 4 x 2.5GbE PoE+, 1 x GbE, 6 x USB 3.2, 4 x Serial, 2 x 2.5”SSD, 2 x CAN FD, 9~36VDC/IGN


VTC 7270-C8 (P/N: 10V00727002X0)
12/13th Gen Intel® Core™ , 8 x 2.5GbE PoE+, 1 x GbE, 6 x USB 3.2, 4 x Serial, 2 x 2.5”SSD, 2 x CAN FD, 9~36VDC/IGN

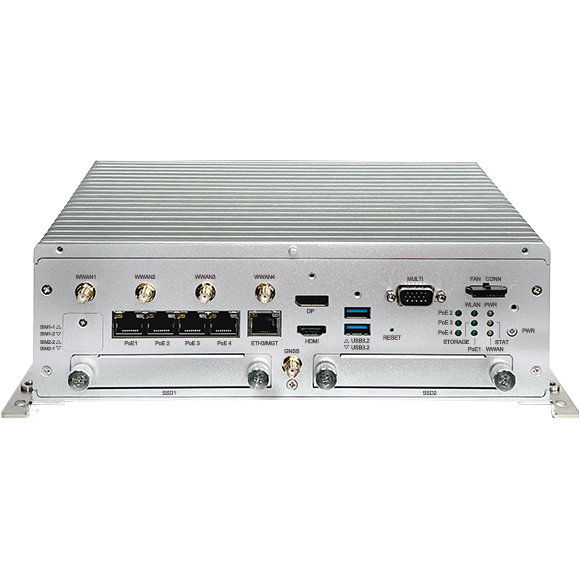

Front I/O Interface
  • ATX power & reset button
  • 9 x LED Indicators
  • 4 x Nano SIM slots (SIM1-1, SIM1-2, SIM2-1, SIM2-2)
  • 2 x USB 3.2 Type A
  • 1 x HDMI, 1 x DPFan power connector
  • 4 x 2.5GbE PoE (RJ45), 1 x GbE (RJ45)
  • 2 x Removable 2.5” SSD bay
  • 1 x Multi-port DB15 (4 x DI, 4 x DO, 2 x CAN FD)
  • 1 x PR-SMA for GNSS, 2/4 x SMA for LTE/5G ant.

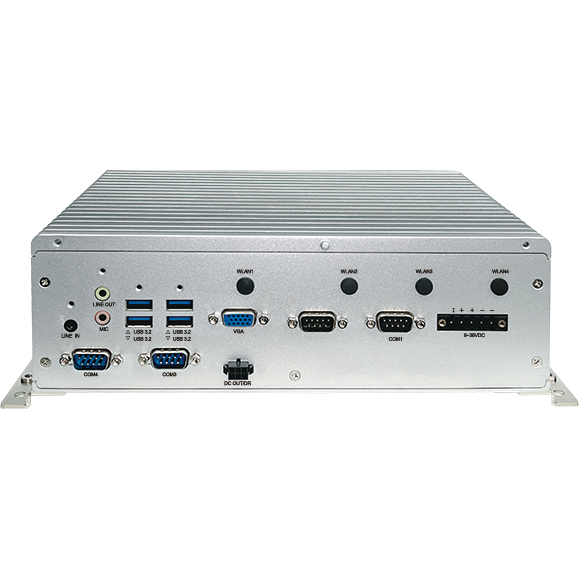

Rear I/O Interface
  • 2 x RS232 (DB9), 2 x RS232/422/485 (DB9)
  • 4 x USB 3.2 type A
  • Audio jack for Line-in, Line-out, MIC-in
  • 1 x VGA
  • 5-pin Phoenix for 9~36VDC-in
  • 1 x Mini-fit connector (DR signal & DC-OUT)
  • 2/4 x PR-SMA for Wi-Fi ant.
  • 4 x 2.5GbE PoE (RJ45) with LED Indicators (VTC 7270-C8)
Display
  • 1 x HDMI 2.0a/b, up to 3840x2160@60Hz
  • 1 x VGA, up to 1920x1200@60Hz; 1 x DP, 4096x2304@60Hz
Expansion
  • 1 x mPCIe slot (PCIe 3.0, SATA 3.0, USB 2.0), Wi-Fi in default, optional for mSATA module
  • 1 x mPCIe slot (USB 3.2, PCIe 3.0, SATA 3.0), SIMs support, LTE (default), Wi-Fi/mSATA in option by DIP S/W setting
  • 1 x M.2 3042/50/52 Key B socket (USB 3.2/2.0), SIMs support for LTE/5G modem
  • 1 x M.2 3030 Key E socket (PCIe 3.0x2 & USB 2.0), Wi-Fi (default), Hailo card (option)
Power
  • Nominal voltage: 9~36V
  • Cranking voltage: 6V~9V (less than 20 sec)
  • OCP & UVP (shut down once exceeding 37V)
  • Ignition on/off control & programmable on/off delay timer
  • Optional for remote power on/off control
Environment
  • Operating temperatures: -35°C~60°C/65°C (35W CPU, fanless, 120W/60W PoE)
  • Operating temperatures: -35°C~60°C/65°C (65W CPU, w/ fan, 120W/60W PoE)
  • Storage temperatures: -40°C~85°C
  • Relative humidity: 10%~95% (non-condensing)
  • Vibration in operating:
    - MIL-STD-810H, 514.8C Procedure 6, Category 4
    - IEC 60068-2-64: 2.0g@5~500 Hz Vibration in storage:
    - MIL-STD-810H, 514.8E Procedure 1, Category 24, 7.7g
  • Shock:
    - MIL-STD-810H, 516.8 Procedure I, trucks and semi-trailers=40g
    - Crash hazard: Procedure V, ground equipment=75g
Certifications
  • CE approval, FCC Class A, UKCA, E13 Certified
Physical Characteristics
  • Dimensions: 260.0mm x 210.0mm x 81.0mm (w/o mount bracket)
  • 293.0mm x 210mm x 90.0mm (w/ mount bracket)
  • Weight: 5.7kg, 6.8kg (w/ fan kit)
Specifications
  • 2.5GbE: PoE+4-port independent 2.5GbE, RJ45 connector

- IEEE 802.3af/at, total 60W
- 9Kbyte Jumbo frame
- PTP (IEEE 1588) support
- Controller: Intel® I226-IT

Additional 4-port 2.5GbE PoE, 60W, VTC 7270-C8GbE/MGT1-port independent

  • GbE, RJ45 connector

- vPro (iAMT) support (option)
- 9KB Jumbo frame
- PTP (IEEE 1588) support
- Wake-up function (WoL)
- Boot from PXE (Legacy & UEFI)

  • USB: 6 x USB 3.2 Gen 2:

- Host Type-A connector
- 5V@900mA each
- Up to10Gbit/s link speed & compliance with USB 2.0 (LS/FS/HS link speed)

  • Serial Port:

- 2 x Full RS232/422/485

- 2 x Full RS232RS232 working voltage, +- 9V, baud rate up to 115.2kb/s

- 2-wire/4-wire RS-485 (Baud rate: 300~115.2Kbps)

  • Security: TPM 2.0: Infineon SLB9670VQ2.0 FW7.62
  • Audio & DC-OUT:

- Line-out, unbalance stereo, left & right channel

- Line-in & MIC-in, stereo

  • DC-OUT: 12VDC@2A
  • MEMS Sensor: 3D accelerometer and 3D gyroscope, ST LSM6DSLTR
  • DI/DO (isolation)

4-bit input

- Source: 9~36VDC (12V@1.1mA/24V@2.2mA)
- External: 0~33VDC pull-high, high/low level 3.3 – 33/ 0 - 2 VDC

4-bit output

  • Source: 9~36VDC (nominal 35mA@24V)

- External: 5~27VDC pull-high, sink current w/ 220mA for each bit, 500mA max (@25C)

Source or external can be selected by DIP S/W (default: source type)

  • CAN Bus:

- 2 x CAN FD, compatible with CAN2.0A/2.0B

- Up to 5Mb/s in data transmit, 2.5KV isolated

- IEC 61000-4-2 Electrostatic Discharge (ESD): ± 4KV/8KV (contact/air)

  • GNSS:

- u-blox NEO-M9N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou

- Optional DR (Dead Reckoning) function, M9V/M8L
