VTC 7250-7C8

Fanless 8-CH PoE Mobile NVR with Intel® Core™ 8th Gen. CPU

Tính năng chính

  • Intel® Core™ 8th Gen. desktop, i7-8700T, up to 4 GHz, 6 Core
  • 8 x 10/100/1000 PoE 802.3af/at
  • 1 x VGA and 1 x HDMI video output
  • ultraONE+ for 10-Meter video + audio output
  • 2 x External SSD and 2 x mSATA for RAID 0, 1
  • 2 x WWAN module and 3 x SIM socket with eSIM option
  • 3 x mini-PCIe and 1 x M.2
  • CE/FCC/E mark

Giá sản phẩm: Liên hệ

Lượt xem 31

VTC 7250-7C8 trang bị bộ xử lý Intel® Core™ i7-8700T Gen. 8 cung cấp giải pháp tích hợp kết hợp sức mạnh tính toán cao, 8 cổng PoE, truyền thông không dây (2 x WWAN + 3 x SIM) và kết nối hiển thị khoảng cách xa (lên đến 10 mét), theo dõi GNSS với hỗ trợ Dead Reckoning (DR) tùy chọn để ghi lại các hoạt động, vị trí, video chất lượng cao, kiểu lái xe và chẩn đoán phương tiện cho xe buýt và phương tiện tuần tra để đạt được các biện pháp quản lý và an toàn tốt hơn.

* Thông tin đặt hàng

VTC 7250-7C8 (P/N: 10V00725000X0)
Intel® Core™ 8th Gen. i7-8700T, 2 x 4GB industrial grade memory, 8 x PoE 802.3af/at, 3 x mini-PCIe, 1 x M.2, 3 x SIM

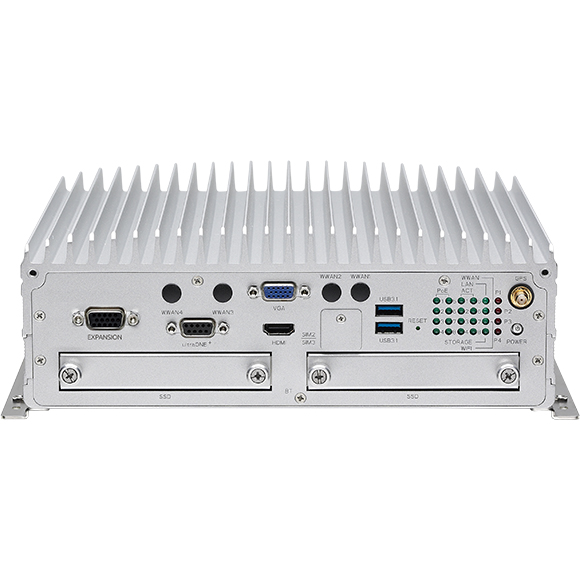

Front I/O Interface
  • 24 x LED indicators (including 4 x programmable LED)
  • 1 x HDMI 1.4b
  • 1 x VGA
  • 1 x ultraONE+ for 10M video + audio output + 24VDC output
  • 2 x USB 3.1 type A (5V/1A)
  • 2 x Externally accessible SIM card sockets
  • 2 x 2.5” removable SSD tray
  • 1 x Reset button
  • 1 x Power button
  • 5 x SMA antenna

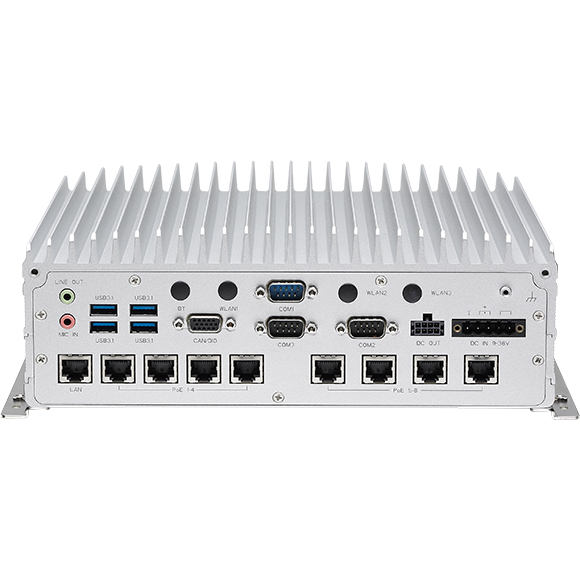

Rear I/O Interface
  • 8 x PoE 802.3af/at (max. 60W)
  • 1 x RJ45 LAN port, 10/100/1000 Mbps
  • 1 x 5-pin terminal block for 9V~36V DC
  • 1 x Mic-in, 1 x Line-out
  • 1 x Connector (4 x 2) for 12VDC/2A output, power button, 2 x MDI
  • 2 x DB9 for full RS232
  • 1 x DB9 for full RS232/422/485 (RI, 5V/0.5A, 12V/0.5A)
  • 1 x DB15

- 1 x Isolated CANBus 2.0B
- 1 x GPS DR (option)
- 4 x DI and 4 x DO

  • 4 x SMA antenna
  • 4 x USB 3.1 type A (5V/1A)
Expansion
  • 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0/SATA 3.0 auto detection)
  • 1 x Full size mini-PCIe socket (USB 2.0), optional M.2 3042 B key (USB 2.0, USB 3.1) with 1 x external SIM3, 1 x internal SIM2
  • 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0, optional SATA 3.0 setup by BIOS)
  • 1 x M.2 3042 B key (USB 2.0, USB 3.1) with 1 x external SIM1, 1 x internal SIM2
GNSS and Onboard Sensor
  • 1 x Default U-blox NEO-M8N GNSS module for GPS/Glonass/QZSS/ Galileo/Beidou
  • Optional M8U/M8L modules with dead reckoning available
  • TPM 2.0 by Infineon SLB9665TT2
  • G Sensor (3-axis, 10-bit resolution)
LAN / PoE
  • 8-Port LAN, 10/100/1000 Mbps I210-IT GbE, PoE 802.3af/at, max. 60W
  • 1-Port LAN, 10/100/1000 Mbps I210-IT GbE
Power

Power Management & Software

  • SupportSelectable boot-up & shut-down voltage for low power protection by software
  • Setting 8-level power on/off delay time by software
  • Support S3/S4 suspend mode
  • 10~255 seconds WDT support, setup by software
  • SDK (Windows/Linux) including utility and sample code
Environment
  • Operating temperatures: -20°C~60°C (w/industrial SSD) with air flow
  • Storage temperatures: -40°C~80°C
  • Relative humidity: 90% (non-condensing)
  • Vibration (random)

- 2g@5~500 Hz (in operation, SSD)

  • Vibration (SSD)

- Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
- Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity testShock (SSD)
- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g
- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g

Certifications
  • CE approval, FCC Class A, E13 mark
Physical Characteristics
  • Dimensions: 260 x 256 x 90.1 (W x D x H) (mm)
  • Weight: 5.8kg
Video Output
  • Chipset Intel® UHD Graphics 630
  • 1 x HDMI 1.4b up to 4096 x 2160 @ 30Hz
  • 1 x VGA up to 1920 x 1200 @ 60Hz
  • 1 x ultraONE+ compatible with specific monitor

DATASHEETS
VTC7250-7C8.pdf
[ VTC7250-7C8.pdf , 0.58MB , Apr.12.2024 ]
