• 1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. Default 4GB

• 2 x 2.5" SSD/HDD SATA 3.0 (compatible with 15mm drive)
• 1 x SD memory card 3.0 (externally accessible)
• 1x USB EDC for USB DOM

• 12 x LED indicators (including 3 x programmable LED)
• 2 x Externally accessible SIM card socket with cover
• 2 x 2.5" removable SSD tray
• 1 x Externally accessible SD card socket with cover
• 1 x Reset button
• 1 x Power button
• 1 x USB 3.0 type A (5V/0.9A)
• 2 x HDMI 1.4b
• 1 x Mic-in, 1 x Line-out

• 1 x 3-pin terminal block for 9V~48V DC
• 1 x RJ45 10/100/1000 Mbps
• 4 x PoE 802.3af/at (max. 60W)
• 1 x VGA
• 1 x DB9 full RS-232
• 4 x SMA antenna
• 2 x USB 2.0 type A (5V/0.5A)
• 1 x Line-out
• 1 x DB15 (DIO)

- 4 x DI with isolation
- 4 x DO with isolation
- Vin, GND for GPIO

• 1 x DB15 (MULTI PORT)

- 1 x RS422/RS485
- 1 x RS232 (TX/RX)
- 1 x CAN 2.0B
- 1 x 12VDC, 2A output (Vout, GND)

• 1 x Full size mini-PCIe socket (USB 2.0), BOM optional M.2 Key B (USB2.0 + USB 3.0) with 2 x external SIM
• 1 x Full size mini-PCIe socket (USB 2.0 + PCIe 2.0)
• 1 x Half size mini-PCIe socket (USB 2.0 + PCIe 2.0)

• 1 x Default U-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/Beidou
• G Sensor (3-axis, 10-bit resolution)
• TPM 2.0 (optional)

• 4-Port LAN, 10/100/1000 Mbps I210-IT GbE, PoE 802.3af/at, max. 60W
• 1-Port LAN, 10/100/1000 Mbps I210-IT GbE

• Power input 9~48 VDC
• Selectable boot-up & shut-down voltage for low power protection by software
• Setting 8-level power on/off delay time by software
• Support S3/S4 suspend mode
• 10~255 seconds WDT support, setup by software
• SDK (Windows/Linux) including utility and sample code

• Operating temperatures: -20°C~60°C (w/ Google Edge TPU & industrial SSD) with air flow
• Storage temperatures: -40°C to 80°C
• Relative humidity: 10% to 90% (non-condensing)
• Vibration (SSD)

- Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
- Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test

• Shock (SSD)

- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g
- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g

• CE
• FCC Class A
• E13 mark

• Dimensions: 260mm (W) x 196mm (D) x 66.5mm (H)
• Weight: 3.2kg

• Chipset Intel® HD graphics 505
• 2 x HDMI 1.4b up to 4096 x 2160 @30Hz
• 1 x VGA up to 1920 x 1200 @60Hz

• Debian Linux and other variants

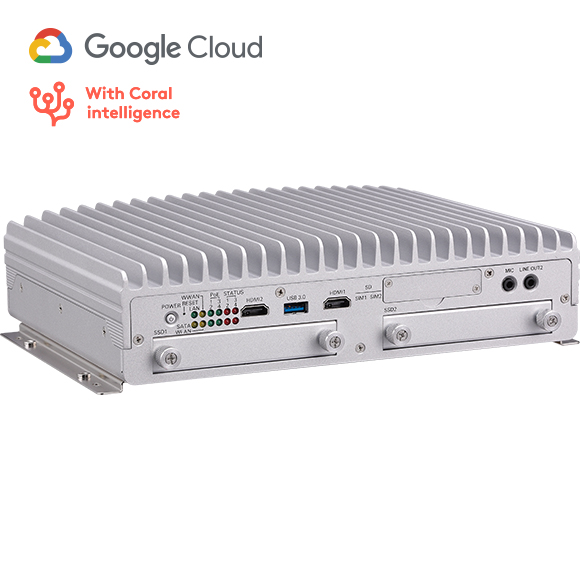

• VTC 6222-GCIoT (P/N: TBD)

Intel Atom® processor E3950 up to 2.0GHz CPU, 4GB DDR3L SO-DIMM, Google Edge TPU, DC input 9~48 VDC, 1 x VGA, 2 x HDMI, 1 x LAN, 4 x PoE, 2 x RS-232, 1 x RS-422/485, 8 x GPIO, 1 x USB 3.0, 2 x USB 2.0

• Hardware interface: mini-PCIe (half size)
• Serial interface: PCIe Gen2 x1
• Performance: 4TOPS @2Watt
• Operating voltage: 3.3V +/- 10 %
• Dimensions: 30mm x 26.8mm x 2.5 mm
