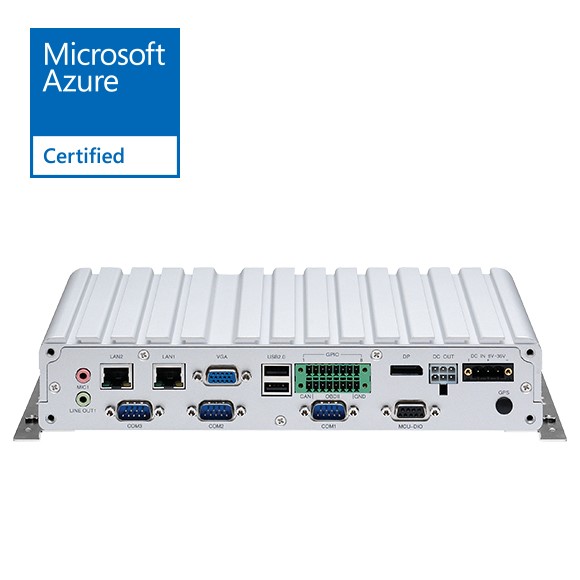

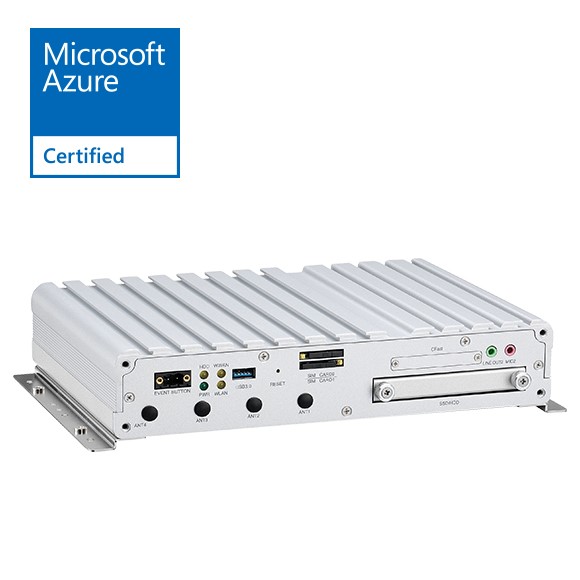

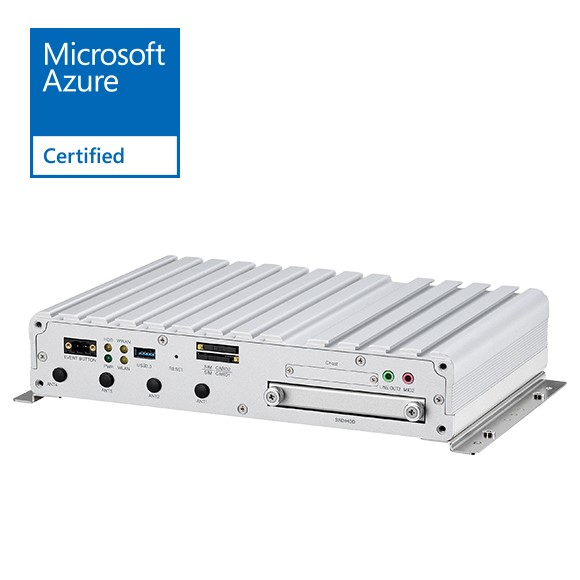

• 1 x 9 ~ 36VDC input with ignition and 19W typical power consumption
• 2 x Type A USB 2.0 compliant host, supporting system boot up
• 2 x RJ45 10/100/1000 Fast Ethernet with LED
• 1 x Phone jack 3.5mm for 1 x Mic-in
• 1 x Phone jack 3.5mm for 1 x Line-out
• 1 x DB-15 VGA, resolution up to 2560 x 1600 @60Hz
• 1 x DP port, resolution up to 2560 x 1600 @60H
• 1 x Antenna hole for GPS2 x DB-9 RS-232 (RI/12V selectable)
• 1 x DB-9 RS-422/485
• 1 x DB-9 for CAN 2.0B (optional CAN Bus 2.0B mini-PCIe card), 2 x MCU-DI and 2 x MCU-DO
• 1 x 16-pin terminal block

- 1 x CAN Bus 2.0B (on board)
- 1 x optional CAN/OBDII module (CAN Bus 2.0B or OBDII SAE J1939)
- 8 x GPIO (Programmable Digital Input or optional isolation)

• Input Voltage (internal type): 5VDC TTL (default)
• Input Voltage (source type): 3 ~ 12VDC (Programmable digital input and digital output)
• Digital output (sink type): 5VDC TTL (default), max current: 20mA
• Digital output (source type): 3 ~ 24VDC, max current: 150mA
• 1 x 12VDC output (2A), SM Bus

• 1 x Full size mini-PCIe socket (USB 2.0)
• 1 x Full size mini-PCIe socket (USB 2.0)
• 1 x Full size mini-PCIe socket (USB 2.0 + PCIe)
• 1 x Half size mini-PCIe socket (USB 2.0 + PCIe)

Power Management

• Selectable boot-up & shut-down voltage for low power protection by software
• Setting 8-level power on/off delay time by software
• Status of ignition and low voltage can be detected by software
• Support S3/S4 suspend mode

• Operating temperatures: -30°C to 70°C (w/ industrial SSD) with air flow

-20°C to 50°C (w/ commercial HDD) with air flow

• Storage temperatures: -35°C to 85°C
• Relative humidity: 10% to 90% (non-condensing)
• Vibration (random): 1g@5 ~ 500 Hz (in operation, HDD), 2g@5 ~ 500 Hz (in operation, SSD)
• Vibration (SSD/HDD): Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier

US highway truck vibration exposure
Storage: MIL-STD-810G, Method 514.6, Category 24, minimum
integrity test

• Shock (SSD/HDD):

Operating: MIL-STD-810G, Method 516.6, Procedure I, functional
shock=20g
Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash
hazard shock test=75g

• CE approval
• FCC Class A
• E13 Mark

• Dimensions: 260mm (W) x 176mm (D) x 50mm (H) (10.24" x 6.93" x 1.97")
• Weight: 2.1kg
