VMC 320

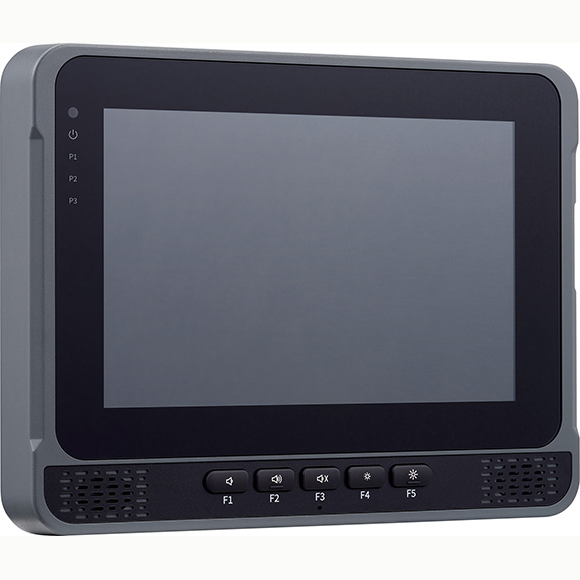

10.1" Rugged Vehicle Mount Computer with i.MX 8M Plus Processor, Projected Capacitive Touch Screen

Tính năng chính

  • 10.1" TFT LCD monitor with projected capacitive touch screen
  • Wide viewing angle with high resolution 1280 x 800
  • Touch panel cover thickness 3mm for IK08 protection
  • 1,000nits brightness with sunlight readable capability
  • Built-in NXP i.MX 8M Plus low-power processor, 4-core
  • HDMI output for 2nd display
  • On screen F1 ~ F5 programmable function keys
  • Wide range DC input 9V ~ 60V
  • Front panel IP65 rating
  • Optional back-up battery available

Giá sản phẩm: Liên hệ

Lượt xem 14

VMC 320, 10.1-inch all in one robust vehicle mount computer, is designed for the warehouses, port, logistic and material handling markets. It implements the NXP i.MX 8M Plus low-power processor on both of Android and Linux platforms, and offers front panel IP65 and IK08. LCD panel: 1,000nits typ. guarantees to reach sunlight-readable. Wide-range power input (9V~60V) can let VMC 320 to be capable of setting up in various facilities and vehicles. The M.2 slot x 2 are designed for WLAN and WWAN wireless connectivity.

Processor
  • NXP i.MX 8M Plus processor with 1.6 GHz frequency
  • Quad Arm® Cortex®-A53 core
Memory
  • Onboard LPDDR4 2133MHz SDRAM 3GB

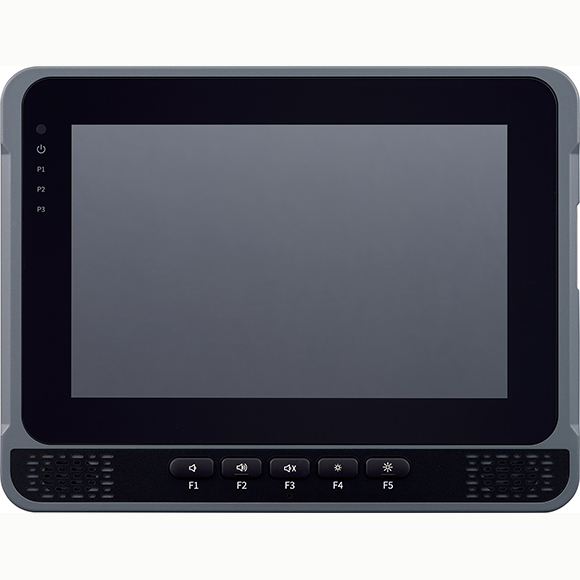

Front I/O Interface
  • F1 ~ F5 programmable function keys (or volume control keys (+/-), brightness control keys (+/-), volume mute)
  • 1 x Light sensor
  • 4 x LED indicators (1 x power, 3 x programmable)
  • 2 x Built-in 2W speakers
  • 1 x Mic

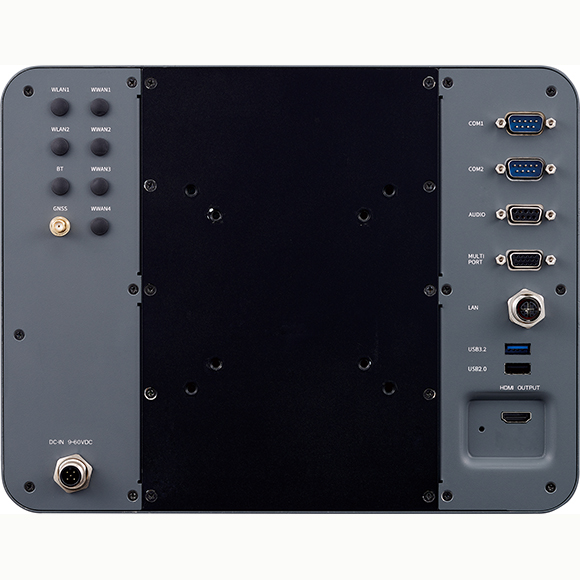

Rear I/O Interface
  • 2 x DB9 (COM1/2) for full RS232/422/485
  • 1 x Power connector, M12 A-coded 5-pin
  • 1 x 10/100/1000 Mbps LAN, M12 X-coded 8-pin
  • 1 x USB 3.2 Gen1 type A
  • 1 x USB 2.0 type A
  • 1 x HDMI output
  • 1 x DB9 female (audio) for Mic-in (mono), 1 x Line-out (stereo)
  • 1 x DB15 (multi port)

- 2 x GPI
- 2 x GPO
- 1 x Isolated CAN FD, compatible with CAN2.0A/2.0B
- PWM (speed)+Direction+GND

  • 4 x SMA connector hole for WWAN
  • 2 x RP-SMA connector hole for WLAN
  • 1 x RP-SMA connector hole for Bluetooth
  • 1 x SMA connector for GNSS

*I/O Interface-LateralRight Side
- 1 x Power button
- 1 x USB 2.0 type A connector w/ cover
- 1 x System reset button w/ cover
- 1 x MicroSD slot w/ cover
- 1 x Dual Nano-SIM slot w/ cover
Power

Power Management

  • 9V ~ 60V DC in
  • Reverse protection/over voltage protection/under voltage protection
  • Ignition on/off control & programmable on/off delay timing
  • Wake up by SMS, RTC, LAN and ignition
Environment
  • Operating temperatures: Ambient with air -30°C to 70°C, ambient with air
  • Storage temperatures: -40°C to 80°C
  • Relative humidity: 10% to 90% (non-condensing)
  • Vibration (random)

- 2g@5~500 Hz (in operation)

  • Vibration

- Operating: MIL-STD-810H, 514.8 Procedure 1, Category 4
- Storage: MIL-STD-810H, 514.8E Procedure 1, Category 24
- IEC 60068-2-6: Sinusoidal 5~500MHz 2G

  • Shock

- Operating: MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers = 40g
- Crash hazard: MIL-STD-810H, Method 516.8, Procedure V, ground equipment = 75g
- IEC 60068-2-27

  • Operating: half sine, 20G 11ms
  • Non-operating: half sine, 50G 11ms
Certifications



  • CE/FCC class B/E13
Physical Characteristics
  • Cooling system: fanless
  • Enclosure: metal
  • IK rating: IK08 (housing and touch screen)
  • Mounting: VESA 75/100
  • Ingress protection: front panel IP65
  • Dimension: 294.0mm (W) x 227.5mm (H) x 37.2mm (D)
  • Weight: 3.6kg
Support OS
  • Linux Ubuntu 22.04 (Weston + Wayland)
Brightness 1000
IP Rating IP65
Size 10" - 11"
Hãng NEXCOM
Operating System Linux

DATASHEETS
VMC320.pdf
[ VMC320.pdf , 0.4MB , Jul.09.2024 ]
