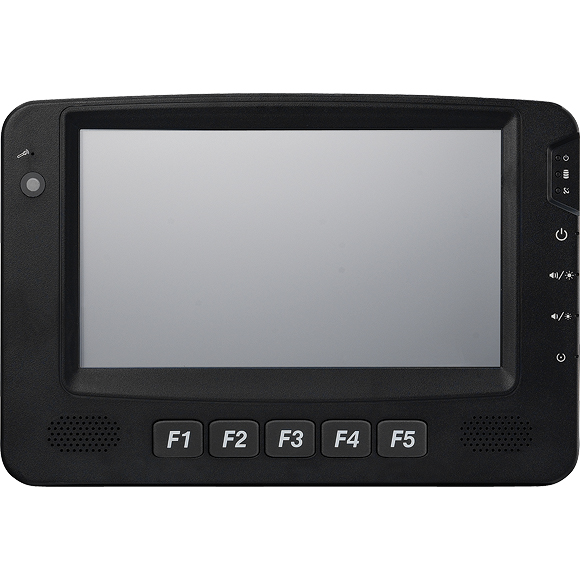

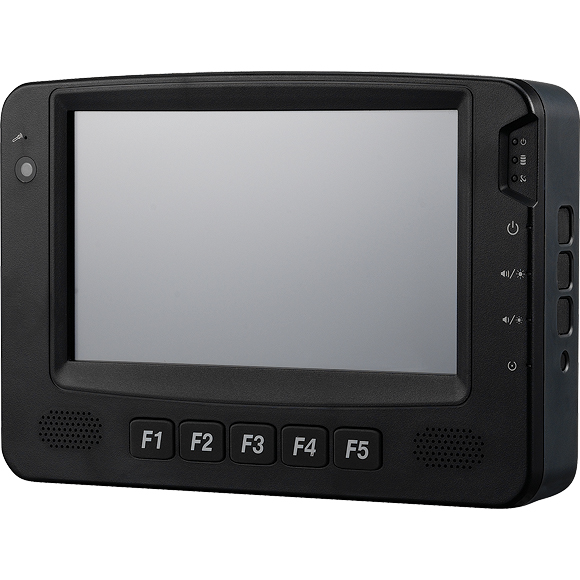

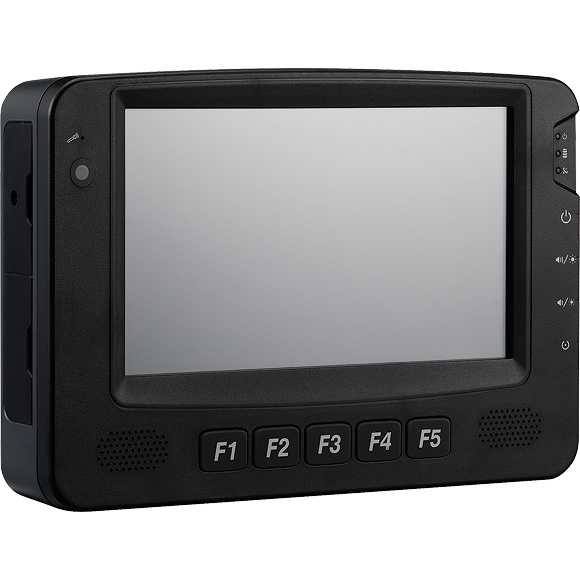

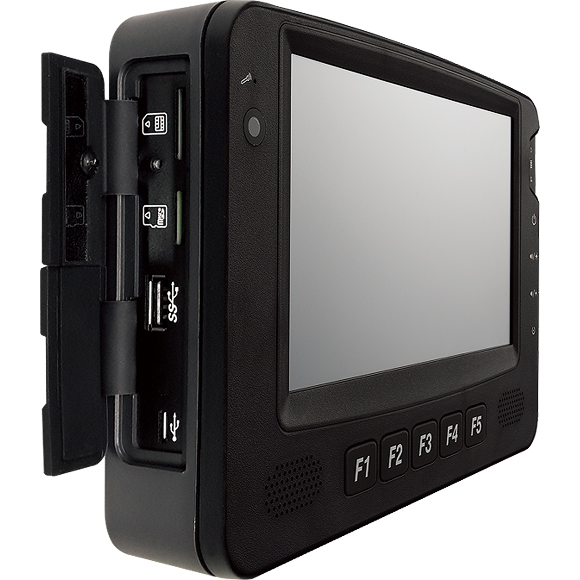

VMC 110

7" Mobile Data Terminal with ARM® Cortex®-A9 platform

Tính năng chính

  • 7" 1024 x 600 TFT LCD monitor with resistor touch screen
  • ARM® Cortex®-A9 Dual Core Processor with 1GHz frequency
  • Compact and fanless design
  • On screen F1 ~ F5 programmable function keys
  • Linux and Android operating system
  • GPS/Wi-Fi/3G/LTE supported (Dead Reckoning included)
  • iButton & RFID for ID identification
  • Dual CAN Bus 2.0B
  • OBDII (ISO15765-4)/SAE J1939 protocol
  • Wide Range DC input from 9 ~ 36V
  • SW Utility for function demonstration on Android platform
  • CE/FCC/Emark

Giá sản phẩm: Liên hệ

Lượt xem 47

VMC 110/111, a 7-inch all in one mobile data terminal , targets the fleet management, transportation and logistic applications. Its compact and rugged design with flexible expansion capability is perfect to the limited space on the driver cabinet and strog requirement on the wireless communication. For wireless communication, VMC110/111 is capable of supporting GPS, Dead Reckoning, Wifi, 3G and LTE. Besides, VMC 110/111 works on the both of Android and Linux operating systems, which are the main stream of operating system in the future. 7" 1024 x 600 resolution with 500nits brightness and resistive touch is suitable on the driver cabinet. Abundant I/O support, such as 2 x CAN bus 2.0B, OBDII/J1939, RS232, RS485, USB, GPIO, LAN… can help to get real-time vehicle information and connect with different sensors or equipment, such as ticketing machine, RFID scanner..... VMC 110/111 with Android and Linux platform is no doubt suitable to implement into various truck, forklift, crane... in port, transportation and logistic application.

Processor
  • ARM® Cortex®-A9 Processor with 1GHz frequency
  • Freescale Dual Core
Memory
  • On-board DDR3L 2GB
Storage
  • 1 x Micro SDHC Slot
  • EMMC: 8G on board
Front I/O Interface
  • F1 ~ F5 programmable function keys
  • Light Sensor
  • Internal Mic-in
  • 2 x Built-in 2W speakers
  • 3 x LED indicators (Power, Storage and WWAN)
Rear I/O Interface
  • 1 x lockable power input with ignition
  • 1 x RJ45 for LAN
  • 2 x USB 2.0 Type A

- DB-15 connector
- Full RS-232
- RS-232/485
- CAN1 2.0B

  • DB-15 connector

- GPI x 3
Sink type: 5VDC TTL (default)
Source type: 3 ~ 28VDC
- GPO x 3
Sink type: 5VDC TTL (default), max current: 20mA
Source type: 3 ~ 28VDC, max. current: 150mA
- GPS DR (Speed, direction, GND)
- CAN2 2.0B (Default) & (BOM optonal for OBD II (ISO 15765-4 & J1939))
- iButton

  • 1 x Mic-in
  • 1 x Line-out
  • 3 x Antenna on I/O

- Rear: 1 x GPS, 1 x WWAN
- Bottom: 1 x GPS, 2 x WWAN

  • 2 x Antenna on housing for Wi-Fi
Display

LCD Panel

  • 7-inch TFT LCD Panel with LED Backlight
  • 1024 x 600 pixels
  • Brightness: 500 cd/m² (typical)
  • Contrast ratio: 800:1 (typical)
  • Viewing angle: 150(H), 145(V)
  • 4-wire resistant touch
  • Anti-glare coating surface
  • Transmission rate: 80% ± 3%
Expansion
  • 1 x half-size mini-PCIe (PCIe + USB) for WLAN
  • 1 x full-size mini-PCIe (USB + UART) for WWAN
  • OBDII: ISO15765-4 & SAE J1939 (Default: None, BOM optional)
  • RFID (optional)
Environment
  • Operating temperatures: Ambient with air -20°C to 70°C
  • Storage temperatures: -30°C to 80°C
  • Relative humidity: 10% to 90% (non-condensing)
  • Vibration

Vibration test: IEC 60068-2-64, 2.5G
Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4
Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24

  • Shock

MIL-STD-810G, 516.6 Procedure 1, trucks and semi-trailers=40g
Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment=75g
Certifications
  • CE/FCC class B/E-Mark
Physical Characteristics
  • Cooling System: Fanless
  • Enclosure: Plastic PC/ABS + Metal heat-sink
  • Mounting: VESA 75/100 & Desktop mounting
  • Ingress Protection: Front panel IP54
  • Dimension: 212.9mm (W) x 144.97mm (H) x 40mm (D)(8.4" x 5.7" x 1.6")
  • Weight: 1.3kg
Support OS
  • Linux YOCTO 2.0 by Request
  • Android 5.1
Brightness 400 - 500
Size 7"
Ordering Information

VMC 110 (P/N: 10VC0110005X0)
VMC 110-D1A 7" I/O on the back w/i.MX6 Dual Lite, 2GB, 8G EMMC, 4w T/S, Android

VMC 111 (P/N: 10VC0111000X0)
VMC 111-D1A 7" I/O on the bottom w/i.MX6 Dual Lite, 2GB, 8G EMMC, 4w T/S, Android
Hãng NEXCOM
Operating System Linux, Android

DATASHEETS
VMC110_111.pdf
[ VMC110_111.pdf , 1.55MB , Jul.09.2024 ]
