Máy tính lắp đặt trên xe VMC 3030

VMC 3030

10.1" Rugged Vehicle Mount Computer with Intel Atom® x7433RE Processor, Projected Capacitive Touch Screen

Tính năng chính

10.1" TFT LCD monitor with projected capacitive touch screen
Wide viewing angle with high resolution 1280 x 800
Touch panel cover thickness 3mm for IK08 protection
1,000nits brightness with sunlight readable capability
Built-in Intel Atom® x7433RE processor, 4-core
HDMI output for 2nd display
On screen F1 ~ F5 programmable function keys
Wide range DC input 9V ~ 60V
Front panel IP65 rating
Optional back-up battery available

Giá sản phẩm: Liên hệ

VMC 3030, 10.1-inch all in one robust vehicle mount computer, is designed for the warehouses, port, logistic and material handling markets. It implements the Intel Atom^® x7433RE processor on both of Windows and Linux platforms, and offers front panel IP65 and IK08. LCD panel: 1,000nits typ. guarantees to reach sunlight-readable. Wide-range power input (9V~60V) can let VMC 3030 to be capable of setting up in various facilities and vehicles. The M.2 slot x 2 and mPCIe slot x 1 are designed for WWAN and WLAN wireless connectivity.

Processor	Intel Atom® processor x7433RE, 1.5GHz, 9W, 4 core
Memory	1 x 262-pin DDR5 SO-DIMM socket support 4800MHz up to 16GB Default 4800MHz, 8GB
Storage	1 x M.2 2280 Key M for SATA 3.0 1 x mSATA (occupied mini-PCIe slot) 1 x Micro SDXC Slot (BOM optional)

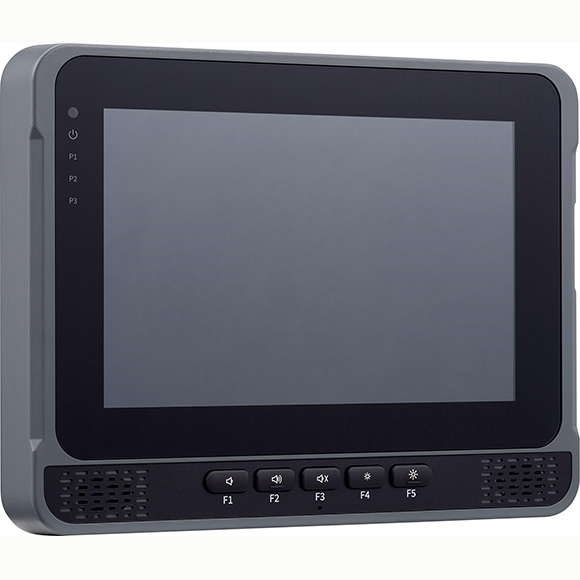

Front I/O Interface	F1 ~ F5 programmable function keys (or volume control keys (+/-), brightness control keys (+/-), volume mute) 1 x Light sensor 4 x LED indicators (1 x power, 3 x programmable) 2 x Built-in 2W speakers 1 x Mic

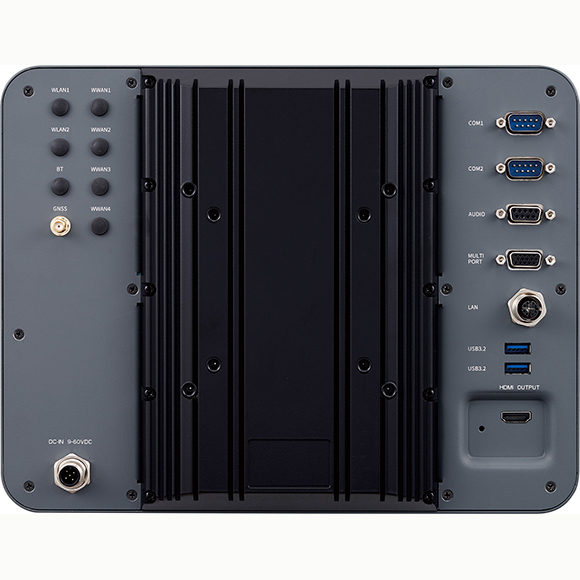

Rear I/O Interface	2 x DB9 (COM1/2) for full RS232/422/485 1 x Power connector, M12 A-coded 5-pin 1 x 10/100/1000/2500 Mbps LAN, M12 X-coded 8-pin 2 x USB 3.2 Gen1 type A 1 x HDMI output 1 x DB9 female (audio) for Mic-in (stereo), 1 x Line-out (stereo) 1 x DB15 (multi port) - 2 x GPI - 2 x GPO - 1 x Isolated CAN FD, compatible with CAN2.0A/2.0B - PWM (speed)+Direction+GND 4 x SMA connector hole for WWAN 2 x RP-SMA connector hole for WLAN 1 x RP-SMA connector hole for Bluetooth 1 x SMA connector for GNSS * I/O Interface-Lateral: Right side - 1 x Power button - 1 x USB 2.0 type A connector w/ cover - 1 x System reset button w/ cover - 1 x MicroSD slot w/ cover (BOM optional) - 1 x Dual Nano-SIM slot w/ cover
Power	9V ~ 60V DC in Reverse protection/over voltage protection/under voltage protection Ignition on/off control & programmable on/off delay timing Wake up by SMS, RTC, LAN and ignition
Environment	Operating temperatures: Ambient with air -30°C to 60°C, ambient with air Storage temperatures: -40°C to 80°C Relative humidity: 10% to 90% (non-condensing) Vibration (random) - 2g@5~500 Hz (in operation) Vibration - Operating: MIL-STD-810H, 514.8 Procedure 1, Category 4 - Storage: MIL-STD-810H, 514.8E Procedure 1, Category 24 - IEC 60068-2-6: Sinusoidal 5~500MHz 2G Shock - Operating: MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers = 40g - Crash hazard: MIL-STD-810H, Method 516.8, Procedure V, ground equipment = 75g - IEC 60068-2-27 Operating: half sine, 20G 11ms Non-operating: half sine, 50G 11ms
Certifications	CE/FCC class B/E13
Physical Characteristics	Cooling system: fanless Enclosure: metal IK rating: IK08 (housing and touch screen) Mounting: VESA 75/100 Ingress protection: front panel IP65 Dimension: 294.0mm (W) x 227.5mm (H) x 54.0mm (D) Weight: 4.5kg
Support OS	Windows 10/11Linux
Brightness	1000
IP Rating	IP65
Size	10" - 11"
Hãng	NEXCOM
Operating System	Windows 10, Windows 11Linux

DATASHEETS

VMC3030.pdf

[ VMC3030.pdf , 0.44MB , Jul.09.2024 ]
