• 1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. Default 4GB

• 1 x eMMC 64GB (BOM optional 128GB)
• 1 x mSATA (occupied mini-PCIe slot)

• Volume control keys (+/-) with LED
• Brightness control keys (+/-) with LED
• F1~F4 programmable function keys with LED
• 1 x Shift key with LED
• 1 x Light sensor
• 4 x LED indicators (power, WWAN, WLAN, storage)
• 2 x Built-in 2W speakers
• 1 x Built-in Mic

• 1 x Full RS232 (COM, w/ 5VDC, 12VDC)

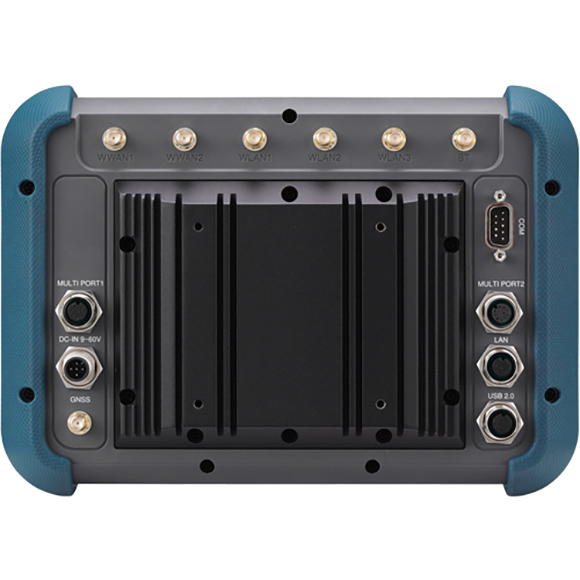

• 1 x Power connector, M12 A-coded 5-pin
• 1 x 10/100/1000 Mbps LAN, M12 A-coded
• 1 x M12 A-coded 8pin for 2 x USB 2.0
• 1 x M12 (MULTI PORT1, A-coded 8-pin)

- 2 x GPI
- 2 x GPO
- 1 x Isolated CANBus 2.0B1 x M12 (MULTI PORT2, A-coded 12-pin)
- 1 x RS232 (Tx, Rx)
- 1 x RS232 (Tx, Rx)/RS422/RS485
- PWM (speed)+direction+GND, optional 4 x composite video input/ CAN-06

• 2 x SMA connector for WWAN
• 3 x SMA connector for WLAN
• 1 x SMA connector for Bluetooth
• 1 x SMA connector for GNSS

*I/O Interface-Lateral

Left Side
- 1 x System reset button w/ cover
- 2 x Nano SIM slot w/ cover

Right Side
- 1 x Power button
- 1 x USB 3.0 type A connector w/ cover
- 1 x Mic-in, 1 x Line-out w/ cover

• 8-inch TFT LCD panel with LED backlight
• 1280 x 720 pixels (HD)
• Brightness: 1000 cd/m² (typical)
• Viewing angle: 170° (H)/170°(V)
• Contrast ratio: 1000:1 (typical)
• Projected capacitive
• Anti-glare coating surface
• Transmission rate: 80 ± 3%

• 1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0)
• 1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0/SATA 3.0)
• 1 x M.2 3042/3050/3052 Key B socket (USB2.0, USB 3.0/PCIe 2.0 (BOM optional)) for LTE/5G NR module with 2 x external Nano-SIM slot

GNSS and Onboard Sensor

• 1 x Default u-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/Beidou
• Optional M8U modules with dead reckoning available
• G Sensor (3-axis, 10-bit resolution)
• LAN: 1-port LAN, 10/100/1000 Mbps Intel® I210-IT GbE
• Security: TPM 2.0: Infineon SLB9665TT2.0FW5.62 (BOM optional)
• RFID Module (optional, occupied 1 x USB 2.0)

13.56-MHz RFID/contactless standard protocols

Compatibles with all major global secured baseband ISO standards including ISO14443 Type A, MIFARE classic cards, and Smartlabel ISO15693

Power Management

• 9V~60V DC in
• Reverse protection/over voltage protection/under voltage protection
• Ignition on/off control & programmable on/off delay timing
• Wake up by LAN, SMS, RTC and ignition

• Operating temperatures: Ambient with air -30°C to 60°C, ambient with air and without battery
• Storage temperatures: -40°C to 80°C
• Relative humidity: 10% to 90% (non-condensing)
• Vibration (random)

- 2g@5~500 Hz (in operation)

• Vibration

- Operating: MIL-STD-810G, 514.6 Procedure 1,Category 4
- Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24

• Shock

- Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and
semi-trailers = 40g
- Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, groundequipment = 75g

• CE/FCC class B/E13/IK08

• Cooling system: fanless
• Enclosure: plastic
• IK Rating: IK08 (housing and touch screen)
• Mounting: VESA 75
• Ingress protection: complete IP65
• Dimension: 250 x 179 x 67.5 mm
• Weight: 2.6 kg

• Windows 10
• Linux (Kernel 4.x)

• VMC 2020-PC1 (P/N: 10VC0202000X0)

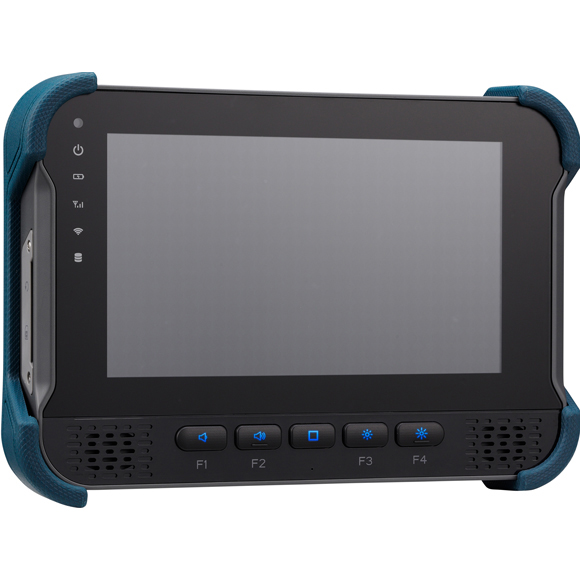

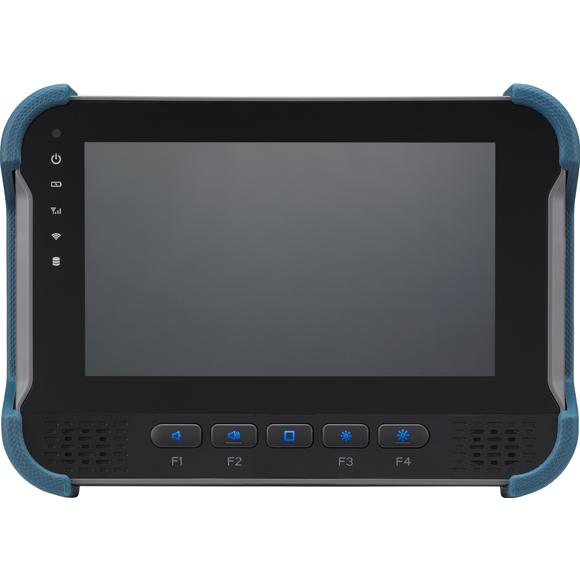

8" rugged vehicle mount computer with Intel Atom® E3950 1.6 GHz CPU, projected capacitive touch screen and complete IP65, 4GB DDR3L SO-DIMM, DC input 9~60 VDC
