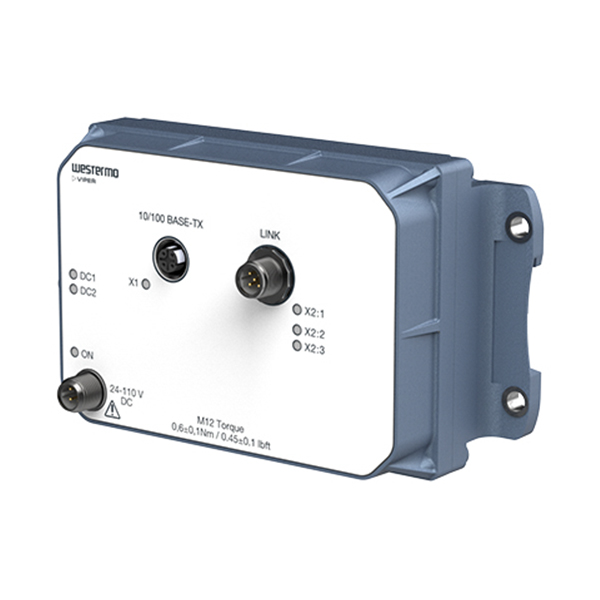

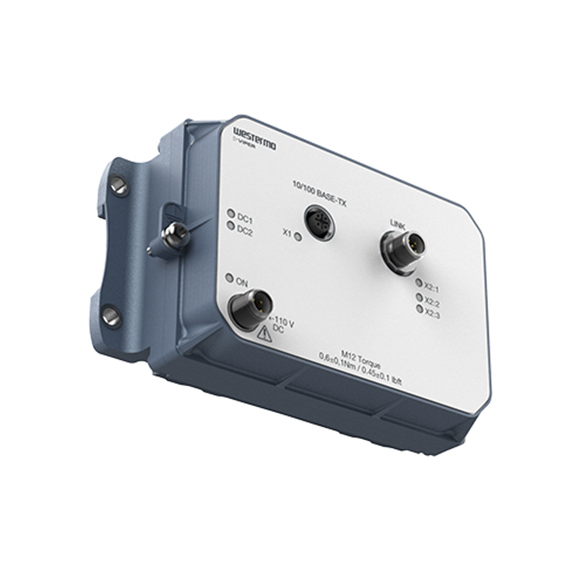

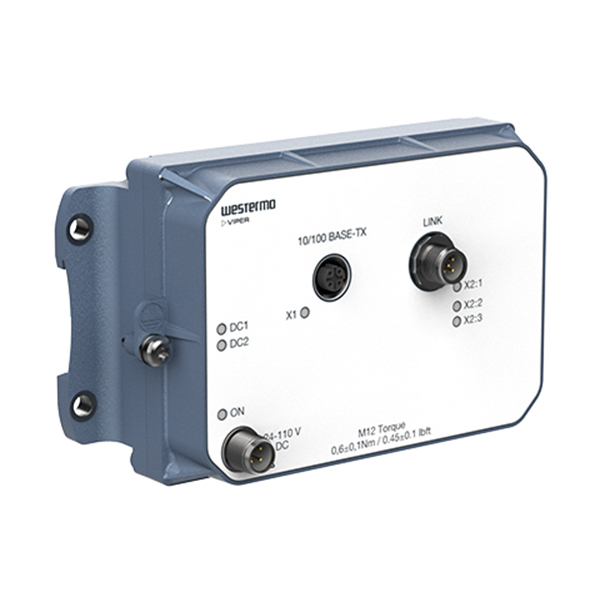

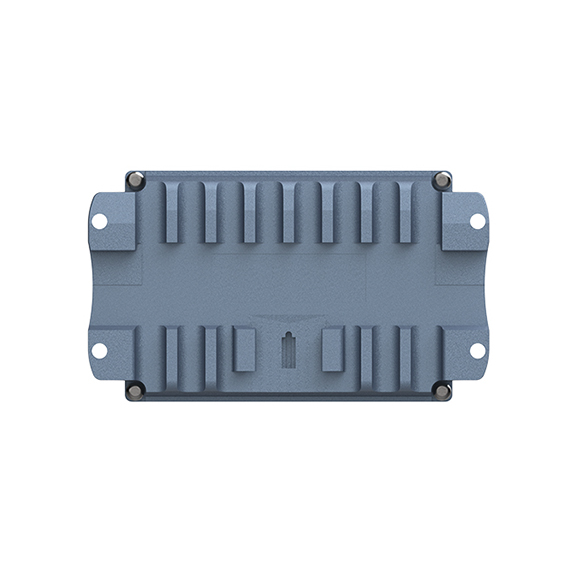

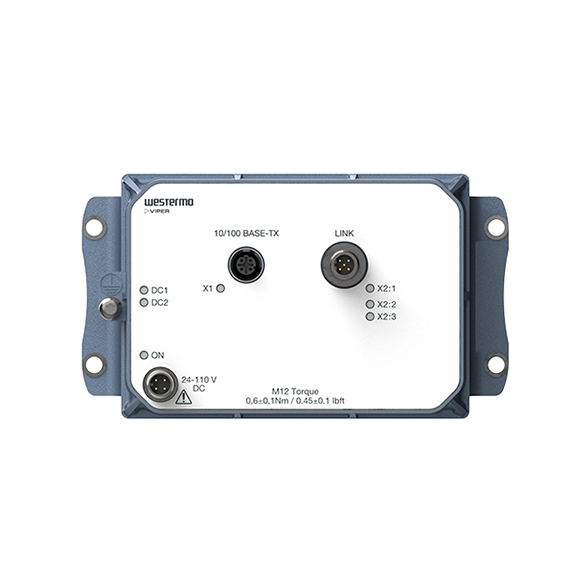

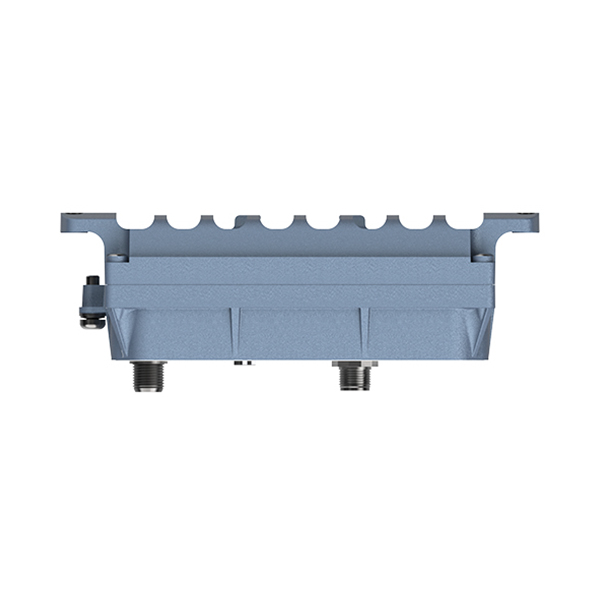

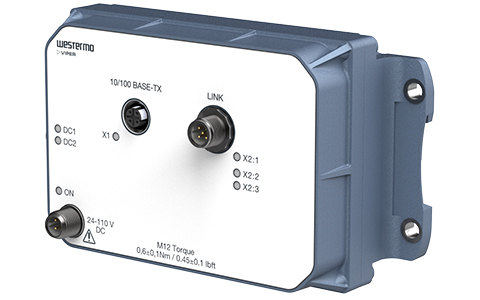

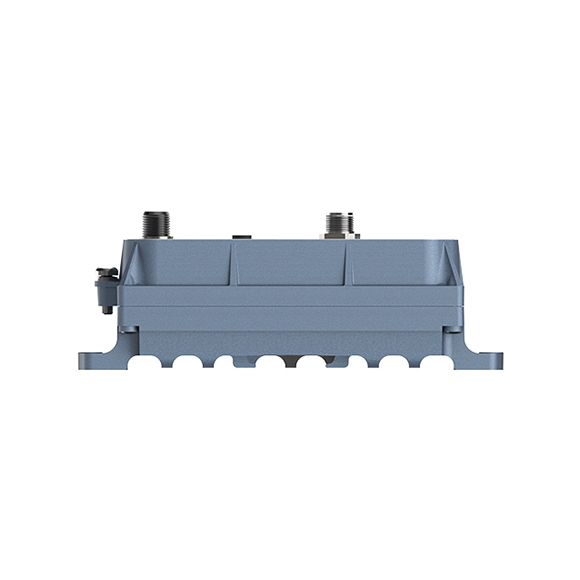

EN 50155 Ethernet Powerline Bridge Viper-002-PL

Viper-002-PL

EN 50155 Ethernet Powerline Bridge

Tính năng chính

EN 50155 Ethernet Powerline Bridge
1 x 100 Mbps Ethernet port
1 x 2-wire cable port

Giá sản phẩm: Liên hệ

✓ Compact rail-approved Ethernet broadband bridge

• Single model 24 – 110 VDC power range
• 1 x 100 Mbit/s Ethernet port
• 1 x 2-wire cable port

✓ Externally tested and verified to EN 50155

• Surge resistance and isolation
• Magnetic field immunity & conducted emission
• Shock and vibration

✓ Designed for long life and extreme operational environments

• IP67 anti-condensation GORE-TEX® membrane
• Ambient temperature -40° to +70°C (-40° to +158°F)
• Integrated M12 threading and high MTBF hours

The Viper-002-PL series consists of Ethernet extenders and bridges for propagating Ethernet traffic over existing cabling.

Interface	Ethernet 100 Mbps (D-coded): 1 pcs Powerline (B-coded): 1 pcs Input power (A-coded): 1 pcs
Approval/Compliance	Climate EN 50155 class OT4 / IEC 60571 class TX, Railway applications - Electronic equipment used on rolling stock IEEE 1478 class 1, condition E4 (incl Salt Mist), Environmental conditions for transit rail car electronic equipment EMC EN/IEC 61000-6-2, Immunity industrial environments EN/IEC 61000-6-4, Emission industrial environments EN 50121-4/IEC 62236-4, Railway signalling and telecommunications apparatus EN 50121-3-2/IEC 62236-3-2, Railway applications – Rolling stock – apparatus Tested and verified for Class S1, DB EMC Regulation 06, Commodity team Radio compatibility in VDB Rev 1.0 (Shunting Radio) Tested and verified for FCC part 15b class A (CFR 47) Mechanical (Shock and vibration) EN 61373 category 1, class A and B EN 60068-2-27 20 g, 11 ms Insulation (Coordination and test) EN 50124-1, Railway applications – Insulation coordination EN 50155/IEC 60571, Railway applications - Electronic equipment used on rolling stock Fire protection EN 45545-2, Fire protection on railway vehicles Safety EN/IEC/UL 62368-1, Safety Requirements for audio/video, information and communication technology equipment
Environmental	Operating temperature: -40 to +70 °C (-40 to +158°F) Storage and transport temperature: -40 to +85 °C (-40 to +185 °F) Ingress protection: IP67 Humidity (operating): 5 to 95 % relative humidity Altitude: 2000 m/80 kPa
MTBF	MIL-HDBK-217F2 1,285,000 hours
Power Requirements	Rated voltage: 24 to 110 VDC Operating voltage: 16.8 to 143 VDC (14.4 VDC for 100 ms, 154 VDC for 1 second)
Mechanical	Dimensions (W x H x D): 175 x 65 x 100 mm Weight: 1.2 kg Housing: Full metal
Hãng	WESTERMO

DATASHEETS

westermo_ds_viper-002-pl_2311_en_reva.pdf

[ westermo_ds_viper-002-pl_2311_en_reva.pdf , 1.08MB , Jun.22.2024 ]
