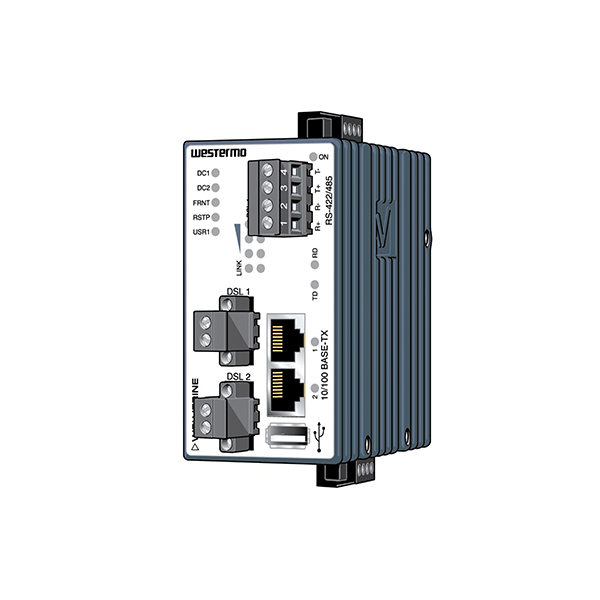

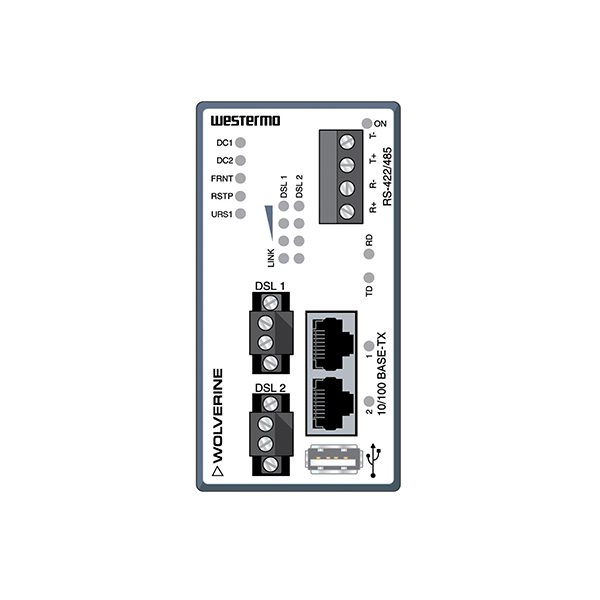

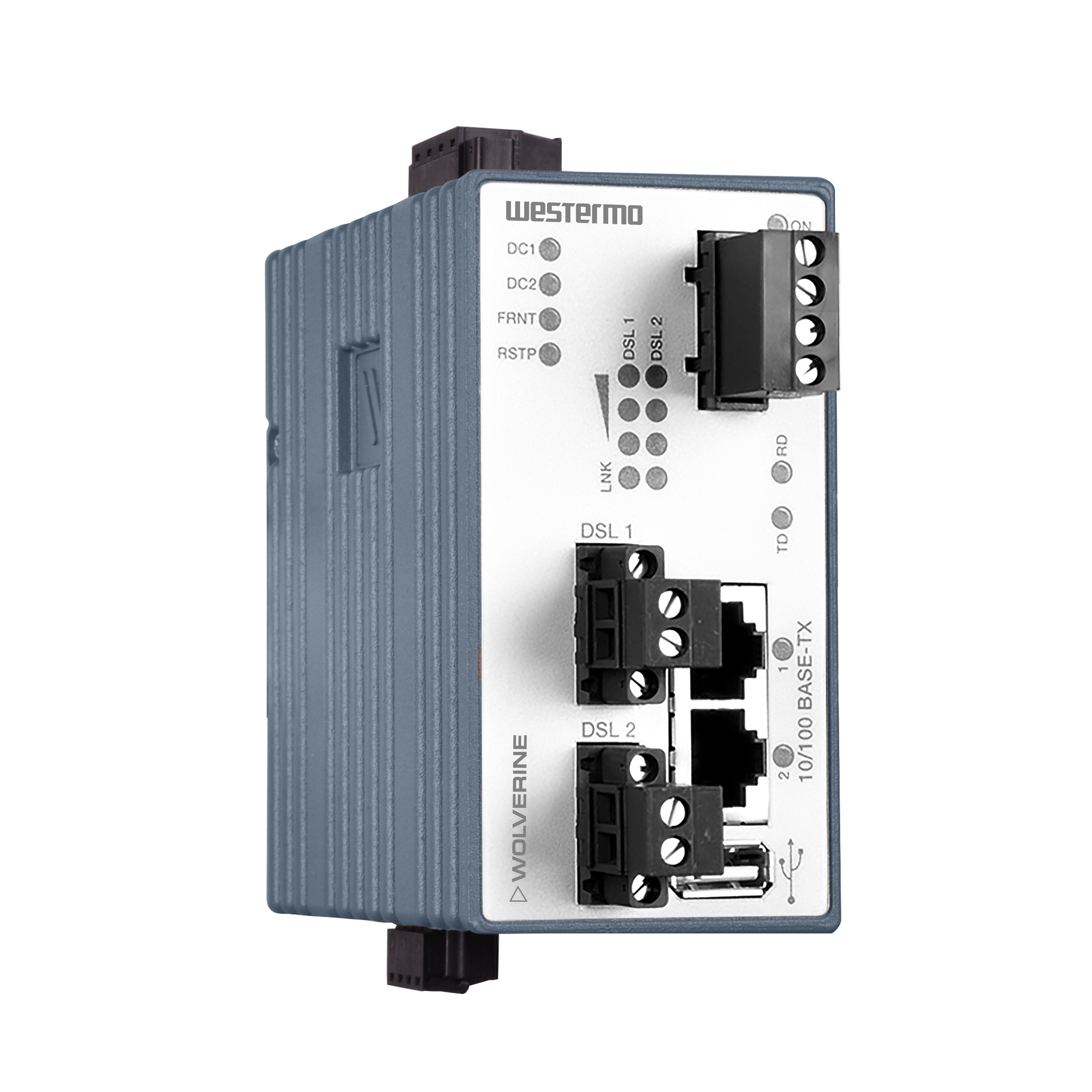

Industrial Ethernet Extender DDW-142-485

DDW-142-485

Industrial Ethernet Extender

Tính năng chính

Industrial Ethernet Extender
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x 4-position detachable screw terminal for RS-422/485 port

Giá sản phẩm: Liên hệ

✔ Save time and money reusing old cable and equipment

• Up to 15.3 Mbit/s Ethernet over twisted pair or 30.6 Mbit/s with bonding
• 2 port 100 Mbit L2 switch supporting VLAN and QoS
• Legacy connection via RS-422/485 port

✔ Security, legacy resilient networking from WeOS

• Port access control (802.1x) or MAC authentication
• RSTP and multimedia ring solutions
• Modem replacement, serial to IP, Modbus Gateway functions

✔ Easy to Use

• Basic installation with no configuration needed
• Web screen for simple configuration and CLI for professional use
• USB fluid configuration for easy maintenance

✔ Robustly designed for mission critical applications

• 435 000 hours MTBF to MIL- HDBK -217F for extreme reliability
• Extensive line diagnostics and fault I/O contact and SNMPv3
• Robust design for vibration, temperature and dual power input

Approval/Compliance	EMC EN 61000-6-1, Immunity residential environments EN 61000-6-2, Immunity industrial environments EN 61000-6-3, Emission residential environmentsa EN 61000-6-4, Emission industrial environments EN 50121-4/IEC 62236-4, Railway and telecommunications apparatus Marine DNV GL rules for classification - Ships and offshore units EMI FCC Part 15.105 class B Environmental NEMA TS2: Traffic Controller Assemblies with NTCIP Requirements Arema Safety UL 60950-1, IT equipment
Environmental	Operating temperature: -40 to +70°C (-40 to +158°F) Storage and transport temperatures: -50 to +85°C (-58 to +185°F) Ingress protection: IP40 Humidity (operating): 5-95% relative humidity Corrosive gases: IEC 60068-2-60 Altitude: 2000 m/80 kPa
Power Requirements	12 VDC power supply Rated voltage:12 to 48 VDC Operating voltage: 9.6 to 60 VDC Rated current (without USB load): 475 mA at 12 VDC 245 mA at 24 VDC 124 mA at 48 VDC Galvanic isolation to all ports: Yes 24 VDC power supply Rated voltage: 24 to 48 VDC Operating voltage: 19 to 60 VDC Rated current (without USB load): 245 mA at 24 VDC 124 mA at 48 VDC Galvanic isolation to all ports: Yes
Mechanical	Dimensions (W x H x D): 52 x 100 x 101 mm (2.04 x 3.93 x 3.97 inches) Housing: Full metal Weight: 0.7 kg
Hãng	WESTERMO

DATASHEETS

westermo_ds_ddw-x42-series_2206_en_revg (1).pdf

[ westermo_ds_ddw-x42-series_2206_en_revg (1).pdf , 1.34MB , Jun.26.2024 ]
