nROK 7270

Fanless Rolling Stock Computer with 12/13th Gen Intel® Core™ CPU

Tính năng chính

  • Powered by 12/13th Gen Intel® Core™ CPU
  • Fanless, compact and rugged design
  • Designed with DDR5, excellent memory bandwidth, lower latency
  • 2 x 2.5” SSD for data integrity (compatible with 15mm disk)
  • 5G/Wi-Fi, PoE, 10GbE, daughter board expansion support
  • Two video outputs, one VGA and one HDMI
  • 4 x Independent 10/100/1000/2500 Mbps PoE 802.3 af/at, total 60W (nROK 7270-AC4)
  • Military standard for anti-vibration/shock
  • EN 50155, class OT3 conformity

Giá sản phẩm: Liên Hệ

Lượt xem 8

nROK 7270 đạt được hiệu quả hoạt động của dịch vụ và giao thông công cộng. Dựa trên CPU socket-type FCLGA1700 Gen. 12/13 Intel® và PoE 4/12 cổng 802.3 af/at, cung cấp một giải pháp tích hợp kết hợp sức mạnh tính toán cao. Với việc hỗ trợ hai thẻ SIM trên mỗi modem, nROK 7270 cho phép sao lưu hai thẻ SIM để có chất lượng kết nối tốt hơn bằng phần mềm. RAID 0, 1 đảm bảo an toàn cho dữ liệu trong 2 x SSD ngoài. Với thiết kế mở rộng daughter board, tùy chọn thêm 1 x mini-PCIe (BOM tùy chọn cho M.2 Key E) và 2 khe cắm M.2 Key B, Bộ chuyển mạch Ethernet 8 cổng 1Gbps GbE, PoE 802.3af/at, tối đa 60W hoặc 2 cổng 10GbE M12 được mã hóa X, nROK 7270 duy trì tính linh hoạt để đáp ứng nhu cầu về các ứng dụng đầu máy toa xe khác nhau, chẳng hạn như thông tin giải trí, bộ định tuyến di động, video server và giám sát video.

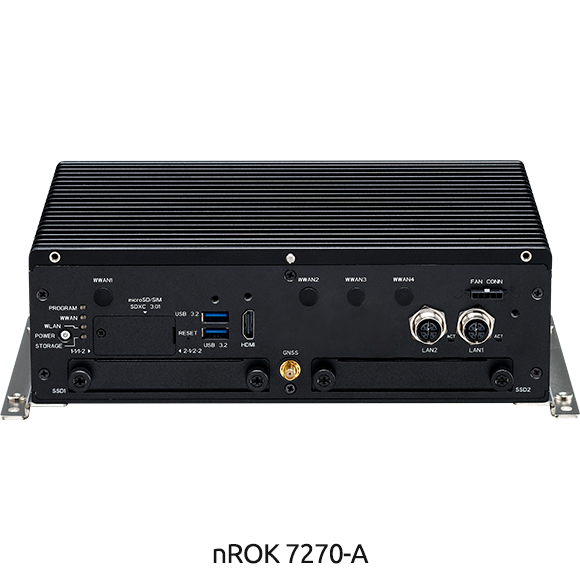

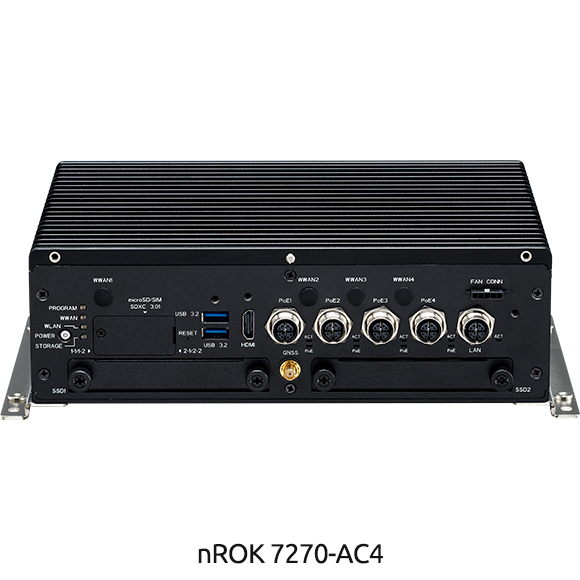

Front I/O Interface
  • 4 x LED indicators (storage/WWAN/WLAN/programmable)
  • 1 x HDMI 2.0a/b
  • 2 x USB 3.2 Gen 2 type A (5V/0.9A)
  • 2 x Externally accessible dual nano-SIM card sockets with cover
  • 1 x microSD card slot with cover
  • 2 x 2.5” removable SSD tray
  • 1 x Reset button
  • 1 x Power buttonn

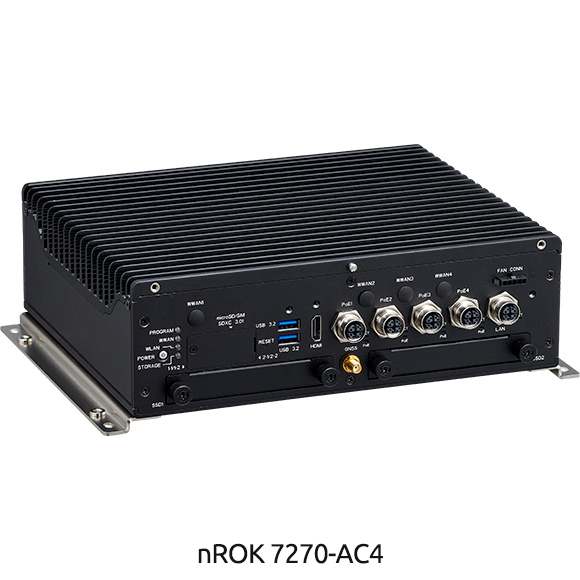

ROK 7270-AC4:

- 1 x M12 X-coded LAN port
- 4 x M12 X-coded PoE 802.3af/atnROK 7270-A:
- 2 x M12 X-coded LAN port

  • 1 x Fan power connector
  • 1 x SMA connector for GNSS
  • 4 x SMA connector holes for WWAN

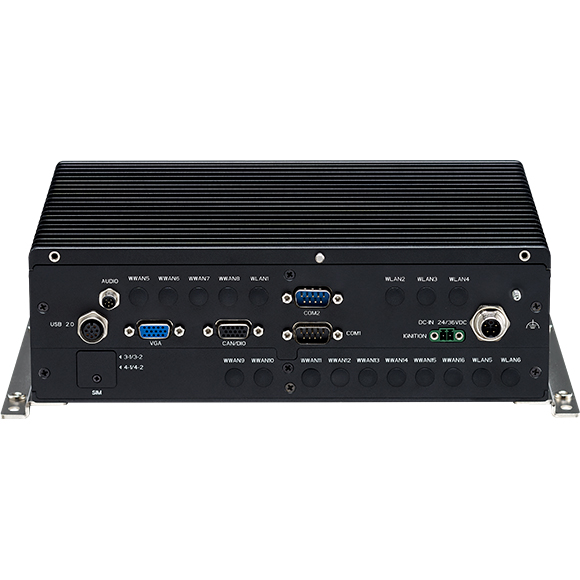

Rear I/O Interface
  • 1 x VGA
  • 1 x M12 A-coded 8-pin for 2 x USB 2.0
  • 1 x M8 (Audio) for 1 x Mic-in, 1 x Line-out
  • 2 x DB9 (COM1/2) for full RS232/422/485 (isolation)
  • 1 x DB15 (CAN/DIO)

- 2 x Isolated CAN FD, compatible with CAN2.0A/2.0B
- 4 x DI and 4 x DO (isolation), power in source for DIO isolation, 14~48VDC

  • 1 x M12 K-coded 5-pin for power input
  • 1 x Connector 2-pin for ignition input
  • 4 x SMA connector holes for WWAN
  • 4 x RP-SMA connector holes for WLAN
  • 2 x Externally accessible dual nano-SIM card socket holes with cover, 8 x SMA connector holes for WWAN, and 2 x RP-SMA connector holes for WLAN (reserved for 5G/Wi-Fi expansion board
Expansion
  • 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0/SATA 3.0)
  • 2 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 2, SATA 3.0) for LTE/5G NR module with 1 x external dual nano-SIMs
  • 1 x M.2 2230 Key E socket (USB 2.0, PCIe 3.0 x2), BOM optional M.2 2230 Key E socket (USB 2.0, PCIe 3.0, PCIe 3.0)
GNSS and Onboard Sensor
  • 1 x Default U-blox NEO-M9N GNSS module for GPS+QZSS/Glonass/Galileo/Beidou
  • 1 x 3D accelerometer and 3D gyroscope
LAN and Power over Ethernet

nROK 7270-AC4:
- 1-port LAN M12 X-coded, 10/100/1000/2500 Mbps Intel® I226 GbE (support WOL)
- 4-Port Independent LAN M12 X-coded, 10/100/1000/2500 Mbps Intel® I226-IT GbE, PoE 802.3af/at, max. 60W (non-isolation)nROK 7270-A:
- 2-port LAN M12 X-coded, 10/100/1000/2500 Mbps Intel® I226 GbE (support WOL)
Security
  • TPM 2.0: InfineonSLB9665TT2.0FW5.62
Power
  • Power input 24VDC/36VDC (14~48VDC) w/o isolationSelectable boot-up & shut-down voltage for low power protection by software
  • Setting 8-level power on/off delay time by software
  • Support S3/S4 suspend mode10~255 seconds WDT support, setup by software
  • SDK (Windows/Linux) including utility and sample cod
Environment
  • Operating temperatures

- EN 50155, class OT3 (-35°C ~70°C), 85°C for 10 minutes (w/35W TDP CPU, 60/120W PoE, 8GB memory, industrial SSD) with air flow

  • Storage temperatures: -40°C to 80°C
  • Relative humidity: 90% (non-condensing)

- Vibration (random)
- 2g@5~500 Hz (in operation, SSD)

  • Vibration (SSD)

- Operating: MIL-STD-810H, Method 514.8C, Procedure 1, Category 4, common carrier US highway truck vibration exposure
- Storage: MIL-STD-810H, Method 514.8E, Procedure 1, Category 24, minimum integrity test

  • Shock (SSD)

- Operating: MIL-STD-810H, Method 516.8, Procedure I, functional shock=40g
- Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g
Certifications
  • CE/UKCA/FCC Class A
  • EN 50155: 2017

- Ambient temperature EN 50155, Class OT3 (-35°C ~70°C), 85°C for 10 minutes
- Interruptions of voltage supply class S1
- Supply change over class C1
- EMC EN 50121-1: 2017, EN 50121-3-2: 2016+A1: 2019
- Environment EN 60068-2-1, EN 60068-2-2, EN 60068-2-30
- Shock and vibration IEC 61373 Class B
- Protective coating class PC1 (PC2, by request)

  • EN 45545-2: 2020
Physical Characteristics
  • Dimensions: 260 x 210 x 80 (W x D x H) (mm)
  • Weight: nROK 7270-AC4: 5.41kg; nROK 7270-A: 5.36kg
Video Output
  • 1 x HDMI 2.0a/b, up to 3840 x 2160@60Hz
  • 1 x VGA, up to 1920 x 1200@60Hz
Ordering Information
  • nROK 7270-AC4 (P/N: 10A00727000X0)

System bare-bone. Intel® 12/13th Gen CPU with DDR5, DC input 24/36V (w/o isolation), 1 x LAN M12 X-coded, 4 x PoE M12
X-coded, 2 x CAN FD

  • nROK 7270-A (P/N: 10A00727001X0)

System bare-bone. Intel® 12/13th Gen CPU with DDR5, DC input 24/36V (w/o isolation), 2 x LAN M12 X-coded, 2 x CAN FD

  • (Optional) VIOD-WWB4S-01 5G/Wi-Fi expansion board kit for nROK 7270 (P/N: 88A00727000X0)

Additional expansion:
- 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0), BOM optional M.2 2230 Key E socket (USB 2.0, PCIe 3.0)
- 2 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 1) for LTE/5G NR module with 1 x external dual nano-SIMs

  • (Optional) VIOD-L1M8P-01 PoE expansion board kit for nROK 7270 (P/N: 88A00727001X0)

Additional PoE port:
- 8-port LAN M12 X-coded, 10/100/1000 Mbps Ethernet Switch GbE, PoE 802.3 af/at, max. 60W (isolation)

  • (Optional) VIOD-LTM2-W01 10GbE expansion board kit for nROK 7270 (P/N: 88A00727002X0)

Additional 10GbE port and expansion:
- 2-port 10GbE M12 X-coded
- 1 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 1) for LTE/5G NR module with 2 x external dual nano-SIMs
- 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0), BOM optional 1 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 1) for LTE/5G NR module with 2 x external dual nano-SIMs
Hãng NEXCOM

DATASHEETS
nROK7270-Series.pdf
[ nROK7270-Series.pdf , 0.64MB , May.02.2024 ]
