ICS-P770

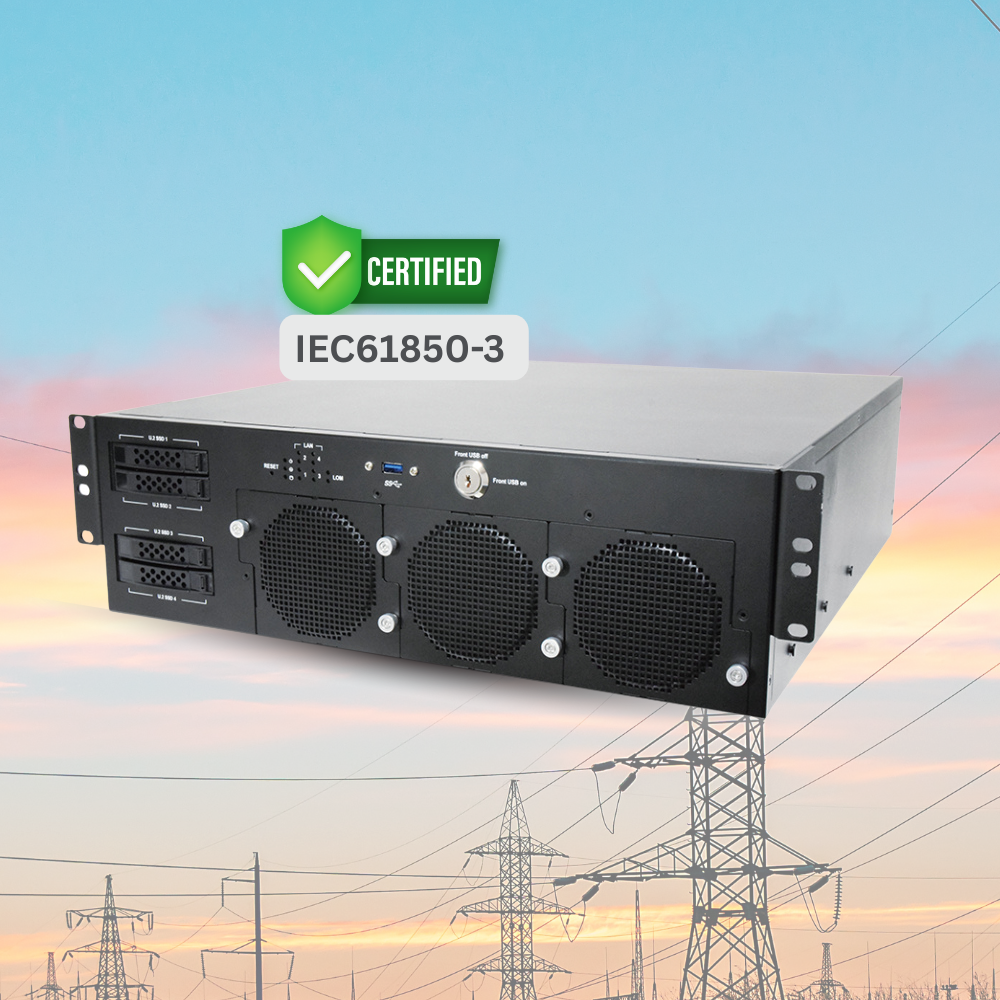

Máy tính công nghiệp IEC61850-3 cho trạm điện

Tính năng chính

Intel® Xeon® 6 Processor (Sierra Forest-SP)
DDR5 Memory Up to 512GB
4x 2.5GbE RJ45; 4x 25GbE SFP28 or 2x GbE SFP & 2x 10GbE SFP+ or 2x GbE RJ45 & 2x 10GbE RJ45 w/ SRIOV (by SKU)
1x Console, 5x USB 3.1, 1x VGA
2x FHFL PCIe x16, 1x FHFL PCIe Gen5 x8, 1x FHFL PCIe Gen5 x4
4x 2.5” U.2 NVMe Hot-Swappable Drive Bays, 1x M.2 2280/22110 M-Key (NVMe)

Giá sản phẩm: Liên hệ

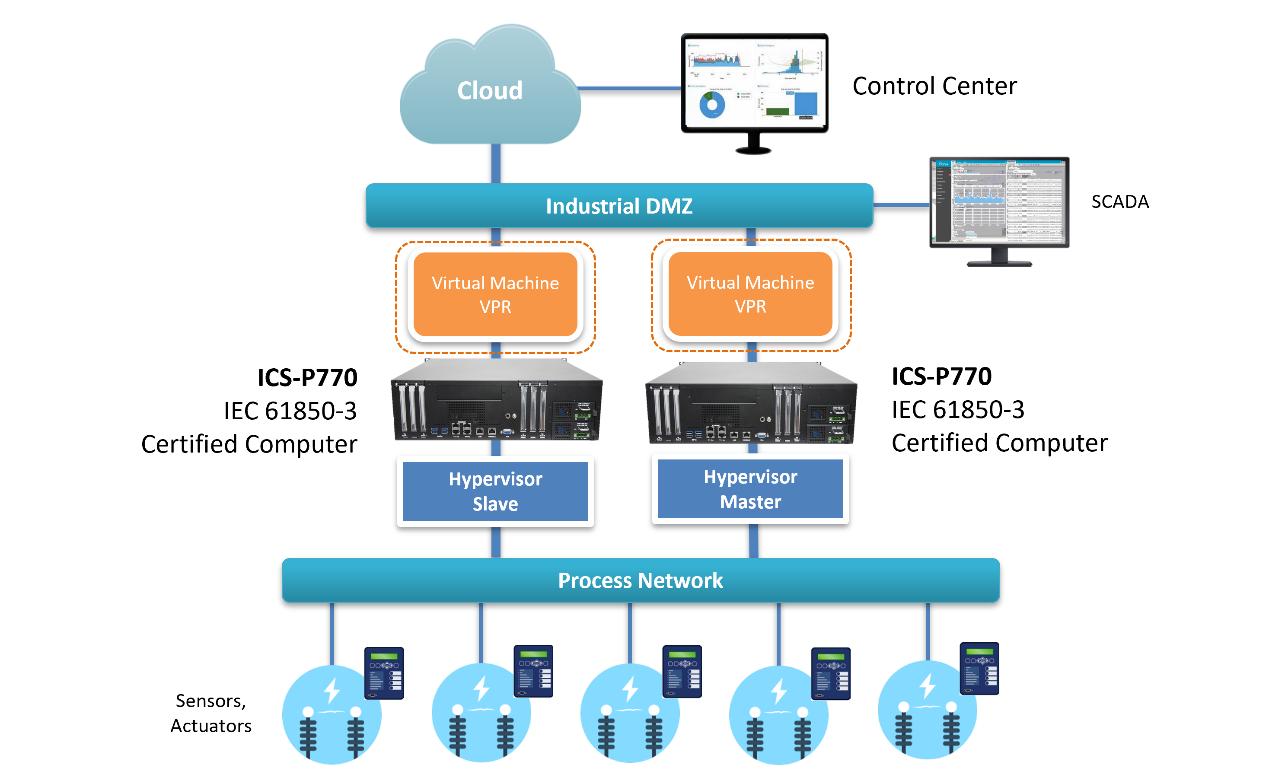

The ICS-P770 series is a powerful 3U box designed for vPAC Substation Server applications. It features an Intel® Xeon® 6 Processor (Sierra Forest-SP), up to 512GB DDR5 memory, and versatile networking options (including 2.5 GbE, 25 GbE, 10 GbE, and GbE ports with SR-IOV), ensuring high performance and flexibility. With PCIe Gen5 expansion and an IP30-rated rackmount chassis with innovative cooling, it’s built for reliability and scalability.

Processor	CPU: Intel® Xeon® 6 Processor, Sierra Forest-SP/6710E 64C/64T 2.4GHz, Single Socket SOM TDP: up to 25W Security Acceleration: Intel® QuickAssist Technology BIOS: AMI SPI Flash BIOS
Memory	Technology: 8x DDR5 6400 MHz RDIMM with ECC Max. Capacity: 512 GB

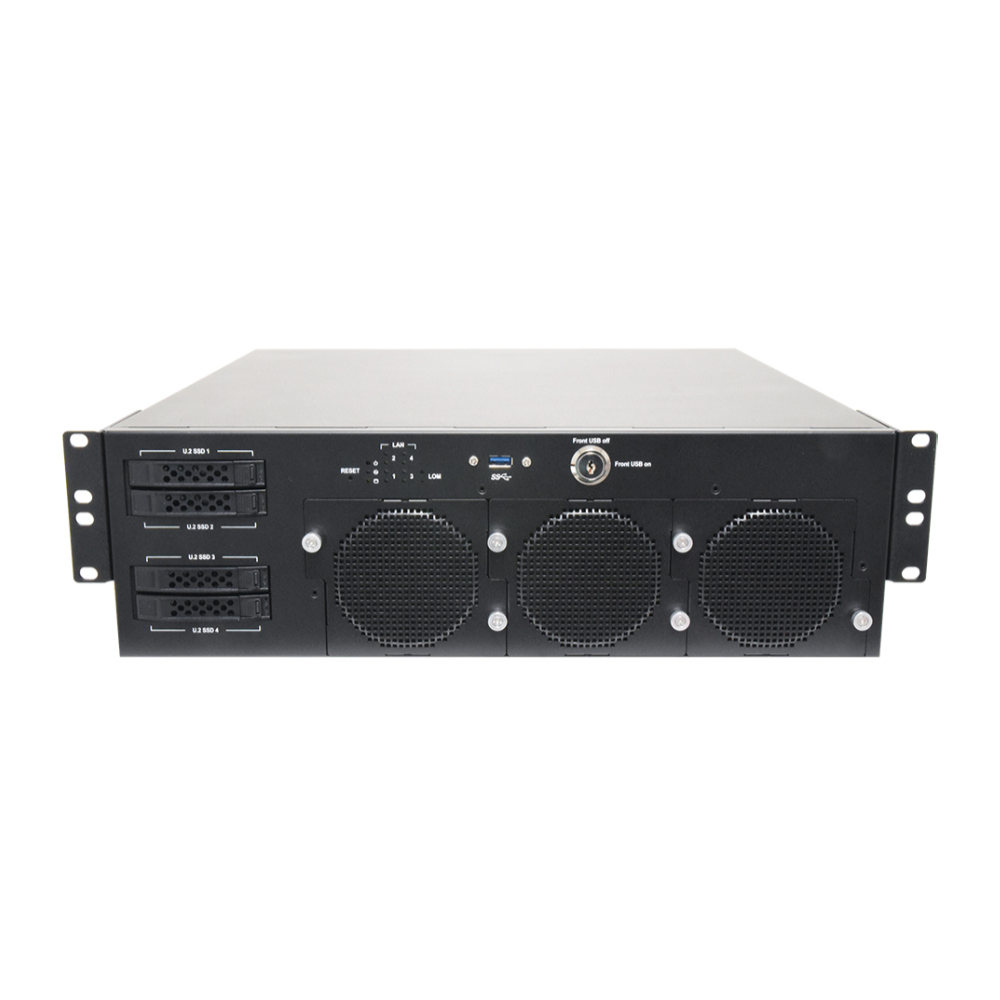

Storage	HDD/SSD Support: 4x 2.5” U.2 NVMe Hot-Swappable Drive Bays Onboard Slots: 1x M.2 2280/22110 M-Key (PCIe Gen5)
Expansion	PCIe 2x FHFL PCIe Gen5 x16 1x FHFL PCIe Gen5 x8 1x FHFL PCIe Gen5 x4
Cooling	Processor: Passive CPU Heatsink System: Fanless
Power	Type / Watts: Dual Power Input Up to 750W each Input: ±100 ~ 240VAC / ±110 ~ 240VDC
Environment	Temperature: -40ºC~55ºC Humidity (RH)5~90% Operating; 5~95% Non-Operating
Certifications	EMCCE/UKCA, FCC Class A, RoHS, MTBF Safe: EN 50121-4, UL + CB, IEC-61850-3, IEEE 1613

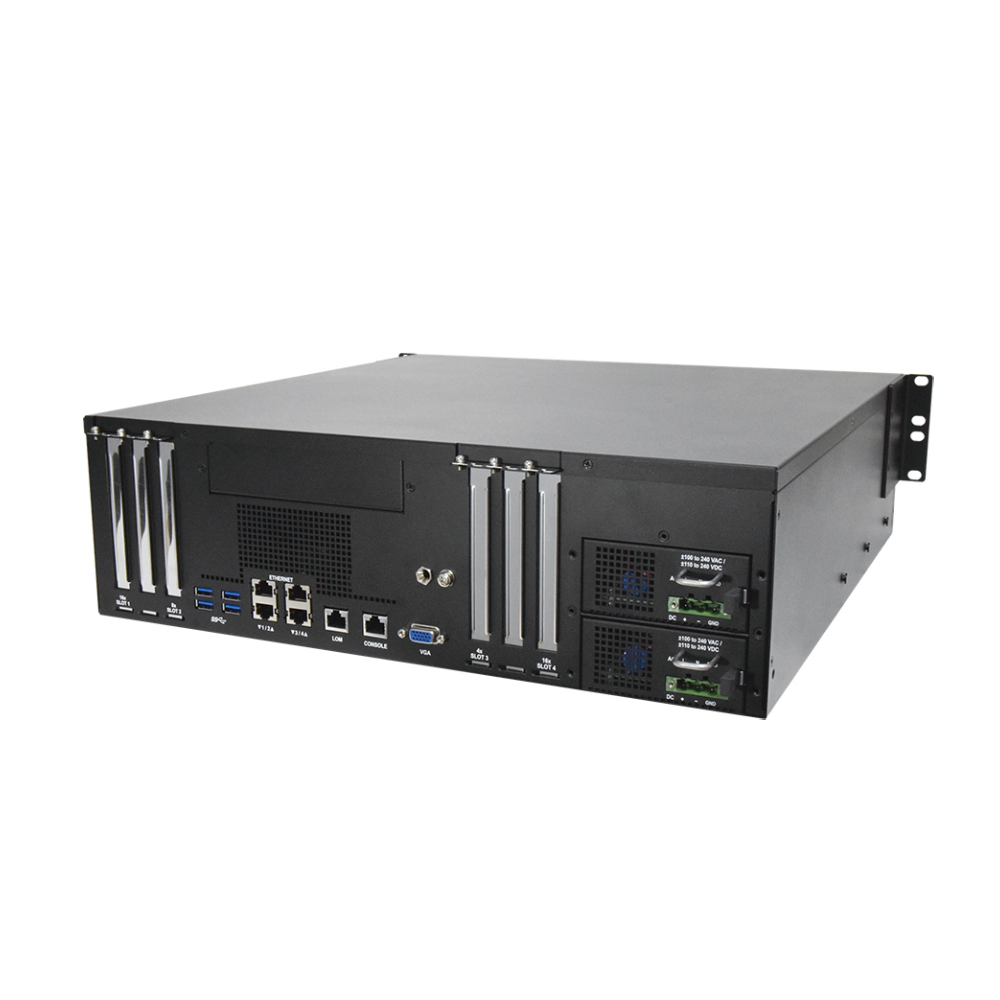

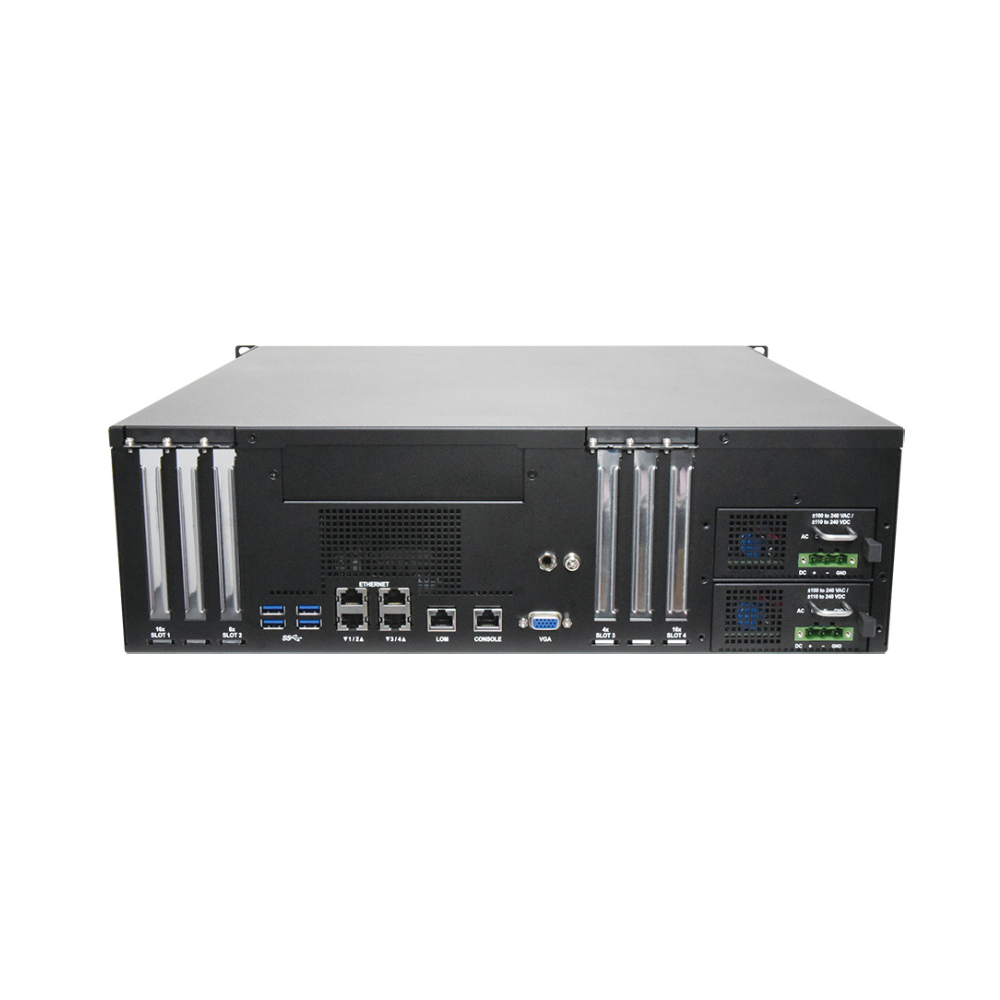

I/O Ports	Reset Button: 1 Serial: 1x RJ45 Console Display: 1x VGA USB: 5x USB 3.1 Gen1
Ethernet controller	Interface: 4x 2.5GbE RJ45; (By SKU) 4x 25GbE SFP28 or 2x GbE SFP & 2x 10GbE SFP+ or 2x GbE RJ45 & 2x 10 GbE RJ45 w SRIOV Speed: 10/100/1000/2500 Mbps Bypass: N/A
Physical Characteristics	W x H x D: 438 x 131.8 x 455 mm Weight: TBD Mounting: 3U 19” Rackmount, IP30
Support OS	Linux
Hãng	LANNER
Operating System	Linux

DATASHEETS

ICS-P770-DM_20250324.pdf

[ ICS-P770-DM_20250324.pdf , 1.84MB , Mar.31.2025 ]
