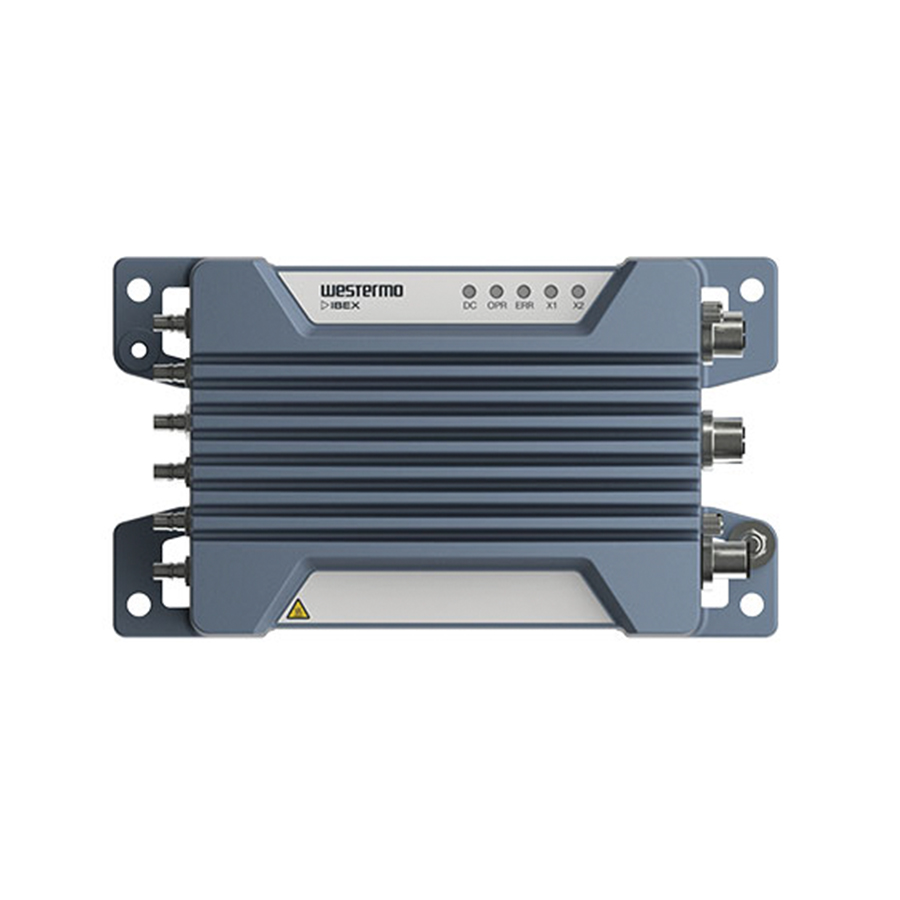

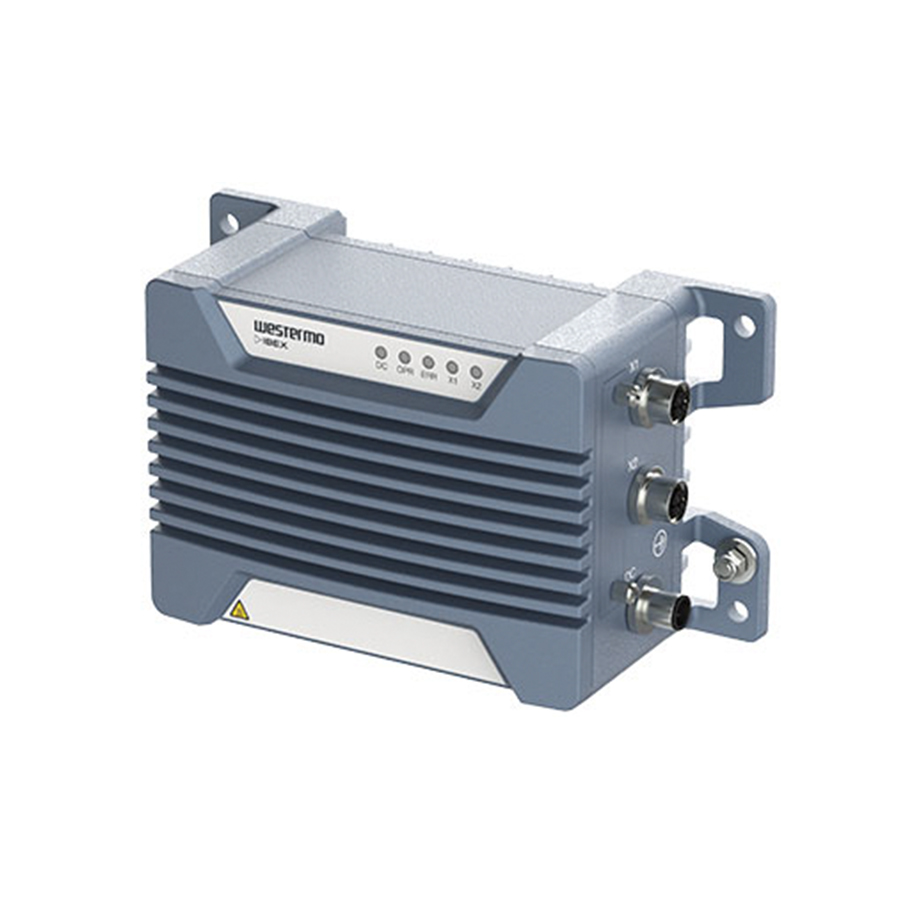

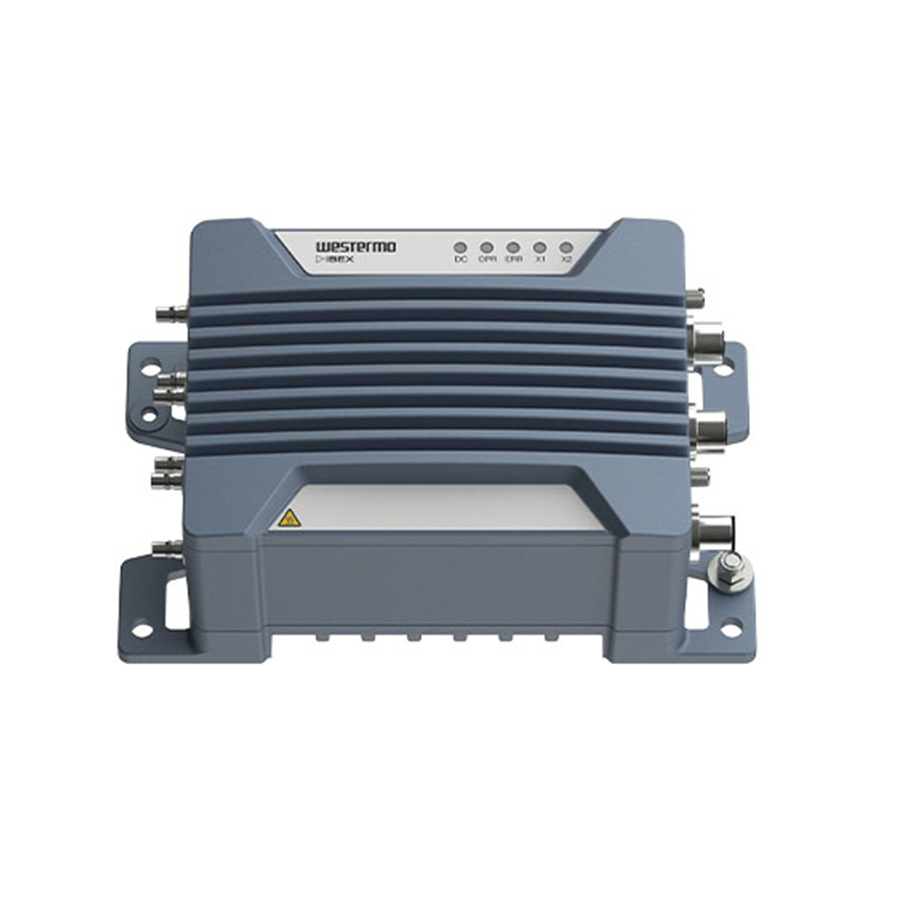

Climate

• EN 50155, class OT4 Railway applications - Electronic equipment used on rolling stock

EMC

• EN 50155, Railway applications - Electronic equipment used on rolling stock
• EBA EMV 06, German Federal Railway Authority, Radio compatibility of rail vehicles (valid for LV models only)
• EN 50121-3-2, Railway applications – Electromagnetic compatibility, Part 3-2: Rolling stock – Apparatus
• ETSI EN 301 489-1, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment and services - Part 1: Common technical requirements
• ETSI EN 301 489-17, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment - Part 17: Specific conditions for Broadband Data Transmission Systems
• ETSI EN 301 489-19, Electromagnetic Compatibility (EMC) standard for radio equipment and services - Part 19: Specific conditions for Receive Only Mobile Earth Stations (ROMES) operating in the 1,5 GHz band
• ETSI EN 301 489-24, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment and services - Part 24: Specific conditions for IMT-2000 CDMA Direct Spread (UTRA) for Mobile and portable (UE) radio and ancillary equipment
• ETSI EN 301 489-52, Electromagnetic Compatibility (EMC) standard for radio equipment and services - Part 52: Specific conditions for Cellular Communication Mobile and portable (UE) radio and ancillary equipment
• ECE E-Mark, Road Vehicles, E13 10R-06 15771 (valid for LV models only)

Mechanical (Shock and vibration)

• EN 61373, category 1, class A and B
• EN 60068-2-27, 100 m/s2 , 30 ms
• MIL STD 810G Method 516.7, 10 g, 11 ms

Insulation (Coordination and test)

• EN 50124-1, Railway applications – Insulation coordination
• EN 50155, Railway applications - Electronic equipment used on rolling stock

Radio communication

• ETSI EN 300 328, Wideband transmission systems; Data transmission equipment operating in the 2.4 GHz ISM band and using wide band modulation techniques
• ETSI EN 301 893, 5 GHz RLAN
• ETSI EN 301 908-1, IMT cellular networks
• 3GPP LTE Advanced standard
• IEEE802.11, Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications
• FCC-47-15, Radio frequency devices
• FCC-47-22, Public mobile services
• FCC-47-24, Personal communications services
• FCC-47-27, Miscellaneous wireless communications services

Safety

• EN/IEC 62368-1, Safety Requirements for audio/video, information and communication technology equipment
• EN 45545-2, Fire protection on railway vehicles
• NFPA 130, Fire protection for fixed guideway transit and passenger rail system

• Operating temperature: -40 to +70°C (-40 to +158°F)

• 290,000 hours (IEC 62380)

• Security: WPA2 (CCMP), WPA3-Personal (SAE/OWE), WPA3-Enterprise (Suite-B), 802.11w, 802.1X, 802.11r
• Ethernet routing/networking and VPN: Fixed fallback IP, IP aliases, MAC address control lists, Port forwarding, Routing, Multicast Routing, DHCP Server/Client, NAT, VLAN support, NTP client, SNMP v2c and v3 with USM authentication and encryption support, SNMP Traps, RSTP, Firewall, IP Masquerading (NAT/NAPT), Port Forwarding, Stateless NAT (1-1 NAT), SSL VPN (Client and Server), Certificate Authentication, Pre-shared Key (PSK) Point-to-Point Mode, Layer-2 and Layer-3 VPN, Layer-2 VPN bridging, Address pool and address per CN, TLS Authentication), Generic Routing Encapsulation (GRE)
• Monitoring features: Built-in monitoring sensors and diagnostics
• Device management: SNMP, HTTP/HTTPS with user authentication, CLI (SSH and Telnet)
• SNMP MIB Support MIB-2, RFC1213, HOST-RESOURCES, BRIDGE, ETHERLIKE, IF-MIB, LLDP-MIB, UCDSNMP-MIB, WESTERMO-SW6-MIB, WESTERMO-SW6-BRIDGE-MIB, WESTERMO-SW6-FIREWALLMIB, WESTERMO-SW6-ICL-MIB, WESTERMO-SW6-GNSS-MIB, WESTERMO-SW6-NWM-MIB, WESTERMO-SW6-PWN-MIB

• Operating modes: Access Point, Client, Bridge, Inter-consist Link
• Wireless standards supported: IEEE802.11b, 802.11g, 802.11a, 802.11n
• Frequency range:

2.400 to 2.4835 GHz

5.150 to 5.350 GHz, 5.470 to 5.725 GHz, 5.725 to 5.875 GHz

• Data rates supported:

802.11b: 1 Mbit/s, 2, 5.5, and 11 Mbit/s

802.11g and 802.11a: 6 Mbit/s, 9, 12, 18, 24, 36, 48 and 54 Mbit/s

802.11n 20 MHz BW, LGI/SGI: from MCS0 6.5/7.2 Mbit/s to MCS23 195/216.7 Mbit/s

802.11n 40 MHz BW, LGI/SGI: from MCS0 13.5/15 Mbit/s to MCS23 405/450 Mbit/s

• RF transmit power 2400 to 2483.5 MHza

Max. conducted transmit power, 802.11b/g/n:

1 port: +22 dBm for all data rates

2 ports: +25 dBm for all data rates

3 ports: +27 dBm for all data rates

• RF transmit power 5150 to 5350 MHza

Max. conducted transmit power, 802.11a/n:

1 port: BPSK, QPSK and 16QAM: +22 dBm, 64QAM: +20 dBm

2 ports: BPSK, QPSK and 16QAM: +25 dBm, 64QAM: +23 dBm

3 ports: BPSK, QPSK and 16QAM: +25 dBm, 64QAM: +25 dBm

• RF transmit power 5470 to 5850 MHza

Max. conducted transmit power, 802.11a/n:

1 port: +22 dBm for all data rate

2 port: +25 dBm for all data rates

3 port: +27 dBm for all data rates

• Receiver sensitivity (typical)

802.11g: -95 dBm (6 Mbit/s), -85 (36Mbit/), -80 dBm (54 Mbit/s)

802.11a: -95 dBm (6 Mbit/s), -85 (36Mbit/), -80 dBm (54 Mbit/s)

802.11ng HT20: -95 dBm (MCS0), -76 dBm (MCS7), -73 dBm (MCS15), -70 dBm (MCS23)

802.11na HT20: -95 dBm (MCS0), -76 dBm (MCS7), -73 dBm (MCS15), -70 dBm (MCS23)

802.11ng HT40: -92 dBm (MCS0), -73 dBm (MCS7), -70 dBm (MCS15), -67 dBm (MCS23)

802.11na HT40: -92 dBm (MCS0), -73 dBm (MCS7), -70 dBm (MCS15), -67 dBm (MCS23)

• MIMO features supported

Space Time Block Coding (STBC), RX Low Density Parity Check (LDPC), Maximum Likelihood Demodulation (MLD), Maximum Ratio Combining (MRC)

• Mobile interface: 2x2 MIMO LTE-A Cat 12, 3GPP E-UTRA Release 12
• Mobile frequency bands LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21/B26/B28/B29/B30/B32/B66 LTE-TDD: B38/39/B40/B41 WCDMA Band: B1/B2/B3/B4/B5/B8/B9/B19
• LTE-A carrier aggregation

DL 2CA: B1+3/5/18/19/20/26; B2+2/4/5/12/13/17/29/30/66; B3+3/5/7/8/19/20/28; B4+4/5/12/13/17/29/30; B5+7/30/66; B7+7/20/28; B12+30; B13+66; B19+21; B20+B32; B29+30; B38+38; B39+39; B39+39; B39+41 B40+40; B41+41; B66+66;12,29,30,5; B2+B14;B14+B30;B14+B66; (Note: B29, B32 only for secondary component carrier)

DL inter-band 3CA: B1+3+5/7/8/19/20/28; B1+7+20, B2+4+5,B2+4+13, B2+5+30, B2+12+30, B2+29+30, B3+7+20, B3+7+28 , B3+7+8, B4+5+30, B4+12+30, B4+29+30, B5+66+2, B13+66+2, B66+12+30, B66+29+30, B66+5+30; B2+B14+B66

DL 2 intra-band plus inter-band 3CA: B2+2+5, B2+2+13, B3+3+7, B3+7+7, B3+3+20, B3+3+28,B3+3+1, B4+4+5, B4+4+13, B7+7+28, B5+66+66, B13+66+66, B66+66+2, B39+B39+B41; B39+B41+B41; B14+B66+B66 DL 3 intra-band 3CA: B40+40+40, B41+41+41, B66+66+66 UL Intra-band Continuous 2×CA: B3+3; B7+7; B38+38; B40+40; B41+41

• Mobile data rates: LTE-FDD: Max 600 Mbps (DL)/Max 150 Mbps (UL) – DL 256QAM / UL 64QAM; LTE-TDD: Max 430 Mbps (DL), Max 30 Mbps (UL); DC-HSDPA: Max 42 Mbps (DL); HSUPA: Max 5.76 Mbps (UL); WCDMA: Max 384 Kbps (DL), Max 384 Kbps (UL)
• GNSS: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, BeiDou B1I, Galileo E1B/C, D-GPS

• Dimensions (W x H x D): 195.4 x 83 x 111.4 mm (7.69 x 3.27 x 4.39 inches)
• Housing: Full metal
• Weight: 1.65 kg without antennas
