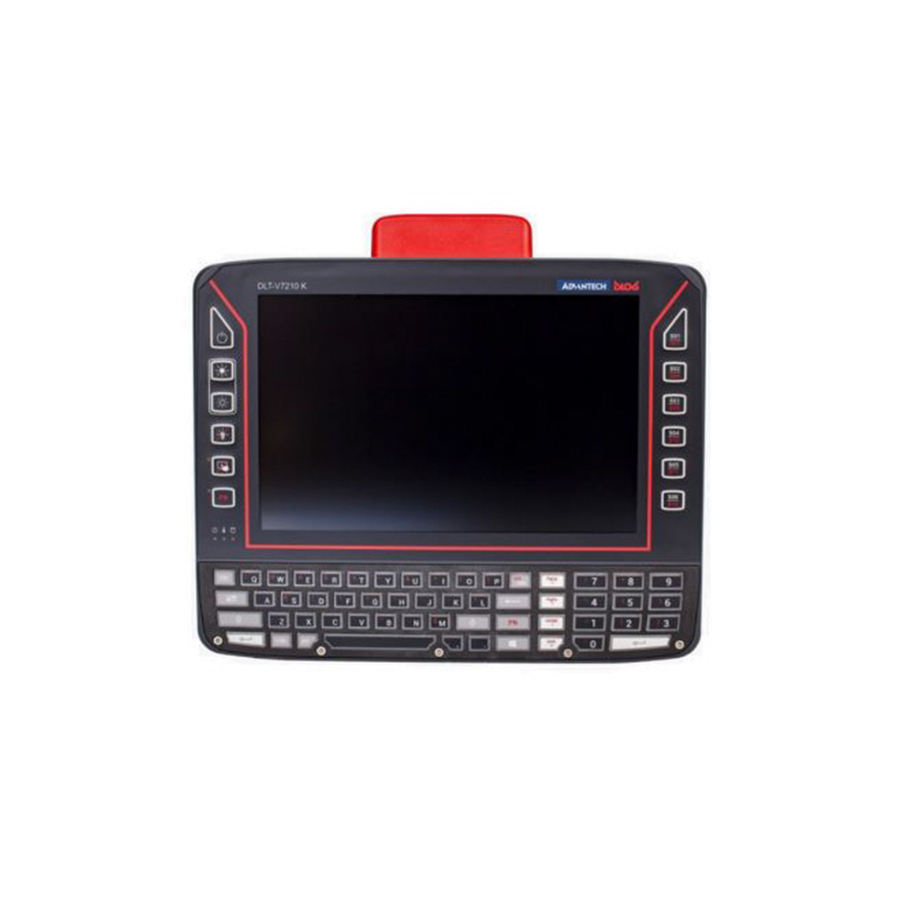

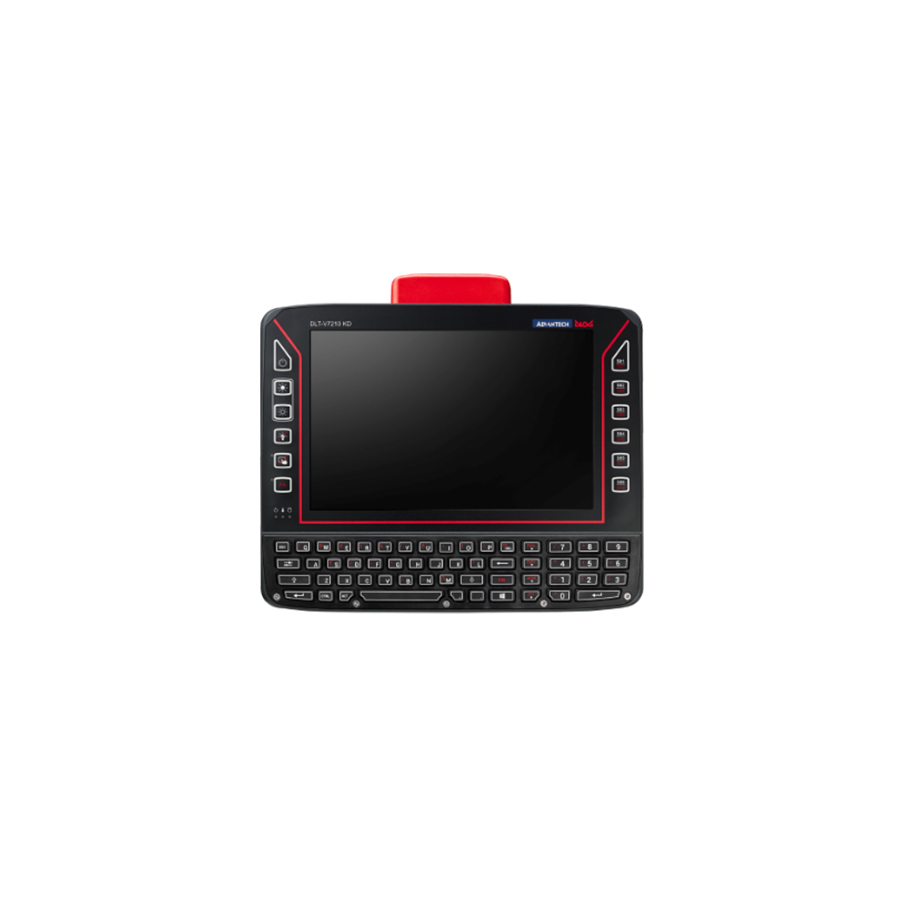

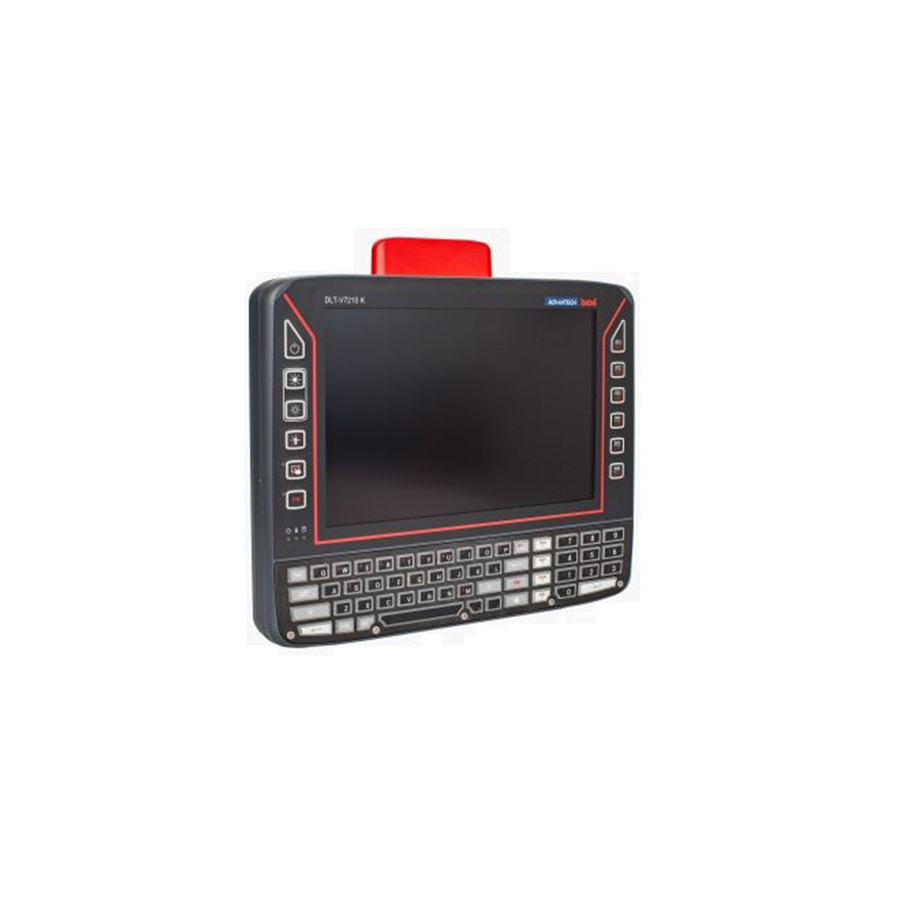

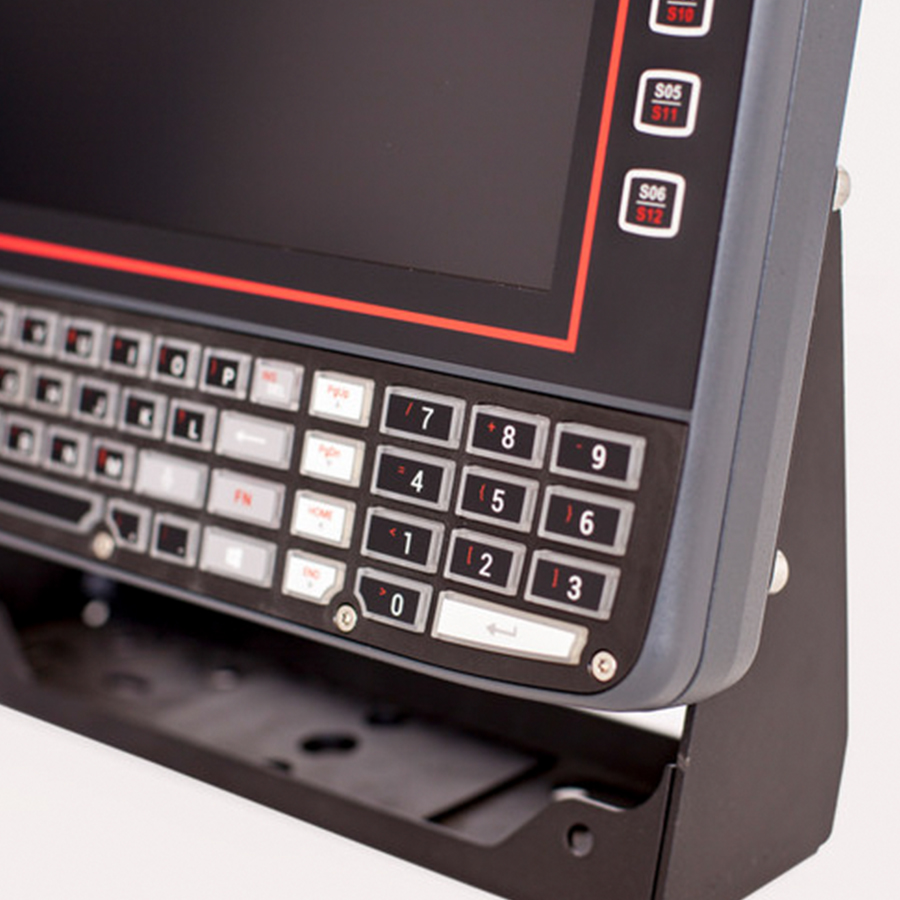

DLT-V7210K

10.1" Rugged Vehicle Mount Terminal with Keyboard

Tính năng chính

  • Intel® Atom™ E3845 Quad-Core, 1,91 GHz, với RAM 4 GB
  • Màn hình màu WXGA 10,1" màn hình rộng với độ phân giải 1280 x 800 và độ sáng 500 cd / m2
  • Màn hình cảm ứng điện dung chống va đập, chịu mài mòn
  • Thiết kế chắc chắn, đạt tiêu chuẩn IP65 với chứng nhận 5M3 cho khả năng chống sốc và rung
  • Phạm vi nhiệt độ hoạt động rộng (-30 ~ 50°C / -22 ~ 122°F)
  • Bàn phím tích hợp để thao tác thuận tiện.
  • Tùy chọn cung cấp điện liên tục

Giá sản phẩm: Liên hệ

Lượt xem 24

DLT-V7210 K series is a rugged vehicle-mounted terminal with integrated keyboard designed for logistics applications and to provide maximum system uptime. Powered by an Intel® Atom® E3845 quad-core, 1.91 GHz, processor with 4 GB RAM, DLT-V7210 K series supports a wide operating temperature range (-30 ~ 50 °C/-22 ~ 122 °F) to withstand operation in extreme industrial environments. DLT-V7210 KD also offers PCT defroster, which is ideal for cold chain and cold storage applications. The low-profile antenna offers excellent transmission capabilities in a compact form factor. Furthermore, the integrated user-friendly keyboard offers convenient operation and efficient data input. Meanwhile, the 10.1" widescreen WXGA color TFT display with touch control allows easy input and configurable touch sensitivity ensures easy operation with gloves. Moreover, DLT-V7210 K series is equipped with Advantech's DeviceOn/iService software, which is a next-generation unified device management solution based on the WISE-DeviceOn platform. With support for batch operations and multi-device control, DeviceOn/iService enables easy device configuration and deployment for convenient remote device management.

Processor
  • Intel® Atom® E3845 quad-core, 1.91 GHz, with 4 GB RAM
Storage
  • 16 GB - 256 GB CFast
Display
  • 10.1" widescreen WXGA color TFT display with 1280 x 800 resolution and 500 cd/m² brightness
  • Touchscreen: Sunlight-readable PCT multi touchscreen with optional defroster function (touch sensitivity configurable for glove operation)
Communication Interface
  • WLAN: WLAN IEEE 802.11 a/b/g/n/ac (optional)
  • WWAN: WWAN (LTE, UMTS, HSPA+, GSM, GPRS, EDGE) (optional)
  • LAN: Ethernet 10/100/1000 Mbit/s
  • WPAN: Bluetooth 5.0 (optional)
Power
  • Power Supply (Internal): 12/24/48 VDC nominal voltage with automatic Power On/Off function via vehicle ignition and optional uninterruptible power supply (20 minutes typical); battery life may vary according to load
Environment
  • IP Rating: IP65 rating for the entire system
  • Operating Temperature: -30 ~ 50°C (-22 ~ 122 °F)
  • Relative Humidty: 10 to 90% at 40°C (104 °F), non-condensing
  • Shock/Vibration: 5M3 (EN 60721-3-5) and MIL-STD 810F (US highway truck vibration exposure)
  • Touchscreen Durability: IK 08
Certifications
  • CE Immunity Class A, Emission Class B/FCC Class B (for EU and USA), CCC (for China)
Control
  • Front Panel 12 x control buttons (6 of which are programmable)
  • Keyboard Full-size keyboard (55 keys) with number pad, illuminated keys, and changeable silicon mat; Supports on-site replacement Keyboard versions: DLT-V7210K(QWERTY,QWERTZ,AZERTY); DLT-V7210KD(QWERTY)
I/O Ports
  • Serial 2 x RS-232, COM1 with switchable 5 VDC/RI
  • USB: 4 x USB 2.0 (Hi-Speed™) bootable, 1 x service USB 3.0 (Super-Speed™)
  • External Antennas: 1 x RSMA for WLAN, 1 x SMA for WWAN (optional)
Physical Characteristics
  • Dimensions (W x H x D): 297.3 x 264.7 x 80 mm (11.7 x 10.42 x 3.15 in)
  • Weight: 3.7 kg (8.2 lb) without battery pack/accessories
  • Housing: Coated aluminum with completely sealed, fanless design
Support OS
  • Windows 10 IoT Enterprise, Debian-based Linux, IGEL Linux, Android 9
Brightness 400 - 500
IP Rating IP65
Size 10" - 11"
Hãng ADVANTECH
CPU Support Intel Atom® Processor E3845
Operating System Windows 10, Android

DATASHEETS
DLT-7210-K_Facelift_DS(041724)20240418225834.pdf
[ DLT-7210-K_Facelift_DS(041724)20240418225834.pdf , 0.87MB , Jul.09.2024 ]
