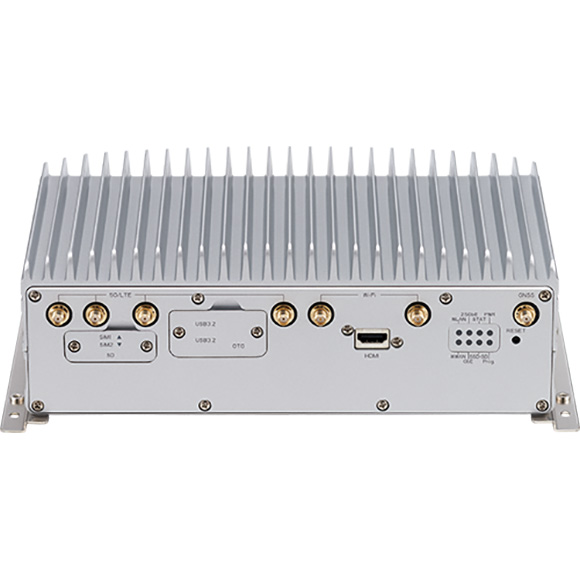

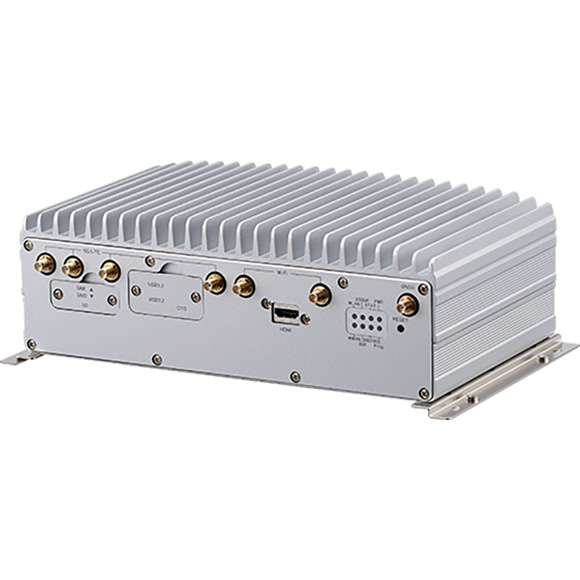

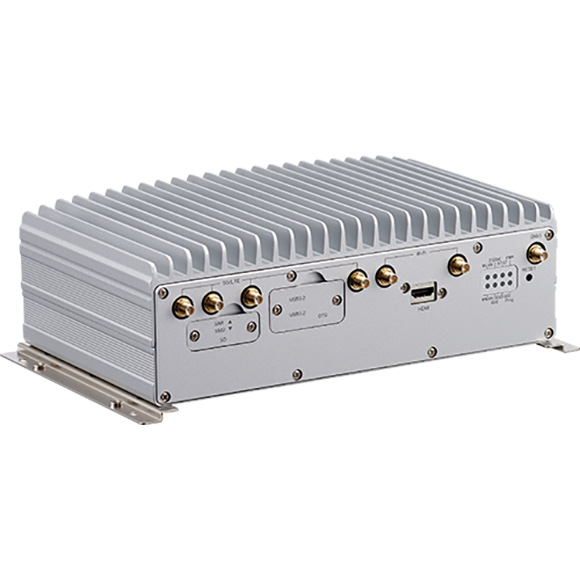

• 64GB eMMC 5.1 flash storage, 200 MHz (HS400 or HS533)
• 1 x Accessible SD card (SDXC-I/ UHS-I, SD3.0)
• 1 x M.2 2280 Key M (PCIe4.0 x4), NVMe SSD

• Reset button
• 8 x LED Indicators
• 2 x USB 3.2 type A (w/ a door)
• 2 x Nano SIMs
• 1 x HDMI
• 1 x SD
• 1 x OTG
• 2 x RP-SMA for Wi-Fi
• 4 x SMA for LTE/5G
• 1 x SMA for GNSS

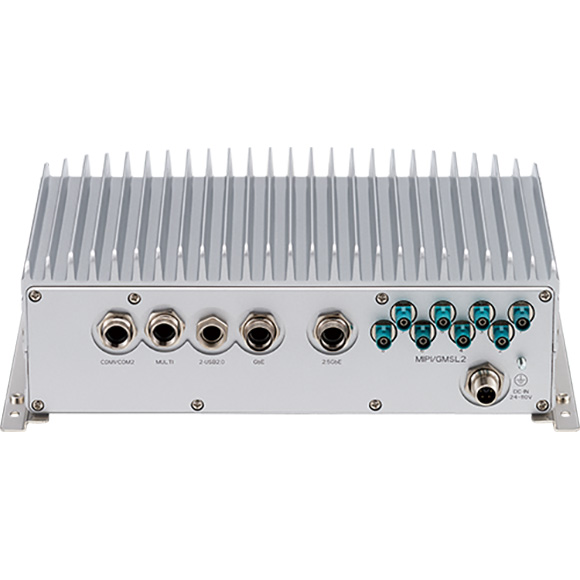

• COM1/COM2 (M12 A-coded)
• MULTI (CAN FD, DI/DO, DR, GPS/PPS, M12 A-coded)
• 2 x USB2.0 (M12, A-coded)
• GbE (M12, X-coded)
• 2.5GbE (M12, X-coded)
• 8 MIPI/GMSL2 (FAKRA Z-coded)
• 24~110V DC-IN, K-coded

• 1 x HDMI 2.0A/B, up to 3840 x 2160@60Hz

• 1 x Full size mPCIe socket (PCIe 4.0, USB 2.0)
• 1 x M.2 3042/3052 Key B socket (USB 3.2/2.0), 2 x Nano SIM slots
• 1 x M.2 3030 Key E socket (PCIe4.0, USB2.0) for Wi-Fi 5/6

• 24~110VDC w/ power isolation, K-coded connector
• Ignition on/off control & programmable on/off delay timer

• 3D accelerometer and 3D gyroscope, ST LSM6DSLTR

• 2 x CAN FD, compatible with CAN2.0A/2.0B
• IEC 61000-4-2 Electrostatic Discharge (ESD): ± 8KV/15KV (contact/air)
• Up to 5Mb/s in data transmit, 2.5KV isolated

• Operating temperatures: -25°C~70°C (TDP 15W~60W, fanless
• Storage temperatures: -40°C~85°C
• Relative humidity: 10%~95% (non-condensing)
• Vibration in operating:
  - MIL-STD-810H, 514.8C Procedure 6, Category 4
  - IEC 60068-2-64: 2.0g@5~500Hz
• Vibration in storage:
  - MIL-STD-810G, 514.6E Procedure 1, Category 24, 7.7g
• Shock:
  - MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g
  - Crash hazard: Procedure V, ground equipment=75g

• CE approval, FCC Class A, UKCA, EN50155, and EN45545-2 certified

External Cable (optional)

• MULTI adapter cable, 20cm
• M12 adapter cable to COM1/COM2, 20cm
• M12 adapter cable to 2 USB2.0, 20cm
• X-coded adapter cable to 1/2.5GbE, 20cm

• MIPI/GMSL2

8 MIPI SerDes/GMSL2 ports

Controller:Maxim MAX96712

Camera supported for e-con systems:
- STURDeCAM21
- STURDeCAM25
- STURDeCAM31

PoC (Power over Cable)

External cable length: 15 meters

Connector: FAKRA Z-coded

• Multi-Gigabit

- 1-port GbE, 1-port 2.5GbE

- 9Kbyte Jumbo frame
- IEEE1588 supported
- LAN controller: Intel I226-I
- X-coded connector

• USB

2 x USB 3.2 Gen 2:

- Host Type-A connector
- 5V@900mA each
- Up to 10Gbit/s link speed & compliance with USB 2.0 (LS/FS/HS link speed)

2 x USB2.0

1 x OTG, micro USB

• Serial Port

1 x RS232 (Tx, Rx, RTS, CTS, DTR, DSR)/RS422/RS485

1 x RS232(Tx, Rx, RTS, CTS)1 x Console (Tx, Rx)

RS232 working voltage, +- 9V, baud rate up to 115.2kb/s

• DI/DO

4-bit input

Source: 9~36VDC (12V@1.1mA/24V@2.2mA)

- External: 0~33VDC pull-high, high-level, 3.3 - 33 VDC; low-level, 0 - 2 VDC

4-bit output
- Source: 9~36VDC (nominal 35mA@24V)
- External: 5~27VDC pull-high, sink current w/ 220mA for each bit, 500mA max (@25C)

Source or external can be selected by software (default: source type)

• Watch Dog Timer: Yes, through MCU
• Remote ATX PWR & Reset Trigger: Reserved, wafer-type

• Dimensions & Weight: 260.0mm x 155.0mm x 88.0mm (w/o mount bracket)

• NEXCOM Aided Linux (NAL) w/ Jetpack 5.1.1 integrated
• NEXCOM custom functions (GNSS, 5G/NR, 6-axis sensor, MCU control)
• Ubuntu 20.04 (L4T 35.1, Linux Kernel 5.10)

• ATC 3750-IP7-WI8MR (P/N: 10AT0375006X0)

NVIDIA® Jetson AGX™ Orin SOM, 32GB LPDDR5, 64GB eMMC, GbE, 2.5GbE, 2/2 x USB 3.2/2.0, 1 x RS232/422/485, 1 x RS232, OTG/Console, 24~110VDC w/ isolation, Rail

• ATC 3750-IP7-WI8MR-64 (P/N: 10AT0375007X0)

NVIDIA® Jetson AGX™ Orin SOM, 64GB LPDDR5, 64GB eMMC, GbE, 2.5GbE, 2/2 x USB 3.2/2.0, 1 x RS232/422/485, 1 x RS232, OTG/Console, 24~110VDC w/ isolation, Rail
