Processor |
NVIDIA® Jetson AGX™ Orin SOM
- 32GB 256-bit LPDDR5, 204.8 GB/s (ATC 3750-6C)
- 8 x cores | 2 Cortex-A78AE CPU clusters (4 cores/cluster), 2.2GHz
- 1792 CUDA® cores, 56 Tensor cores, 108 Sparse TOPS, 939 MHz
- 200 INT8 Sparse TOPS
- 2 x NVDLA v2.0 engines: 1.4 GHz | 46 TOPS each (Sparse INT8)
- 64 GB 256-bit LPDDR5, 204.8 GB/s (ATC 3750-6C-64)
- 12 x cores | 3 Cortex-A78AE CPU clusters (4 cores/cluster), 2.2GHz
- 2048 CUDA® cores, 64 Tensor cores, 170 Sparse TOPS, 1.3GHz
- 275 INT8 Sparse TOPS
- 2 x NVDLA v2.0 engines: 1.6 GHz | 52.5 TOPS each (Sparse INT8)
- Video Encode: 2 x 4K60 | 4 x 4K30 | 8 x 1080p60 (H.265)
- Video Decode: 1 x 8K30 | 3 x 4K60 | 6 x 4K30 | 12 x 1080p60 (H.265)
- OpenGL 4.6+, OpenGL ES 3.2, and Vulkan 1.2+, CUDA 10.2+
- NVIDIA® JetPack 5.1.1
|
|
Storage |
- 64GB eMMC 5.1 flash storage, 200 MHz (HS400 or HS533)
- 1 x Accessible SD card (SDXC-I/ UHS-I, SD3.0)
- 1 x M.2 2280 Key M (PCIe4.0 x4), NVMe SSD
|
|

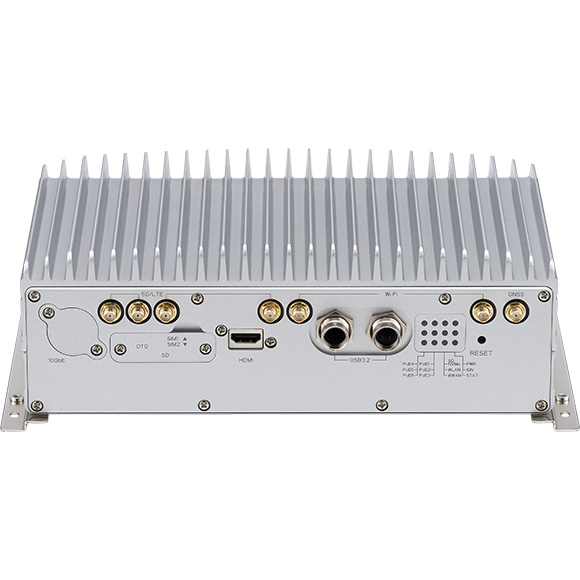

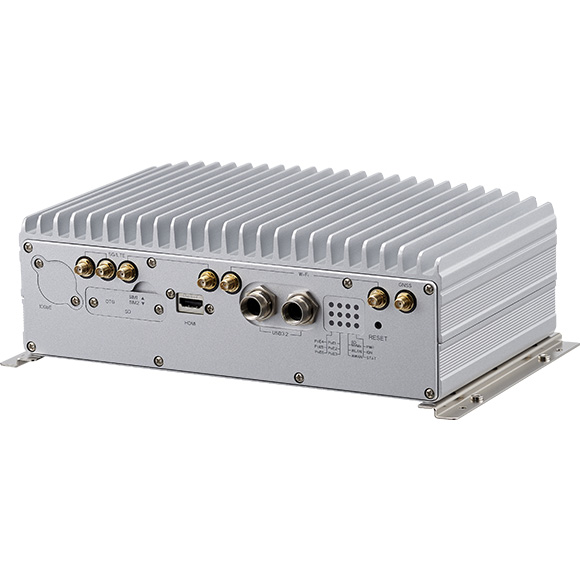

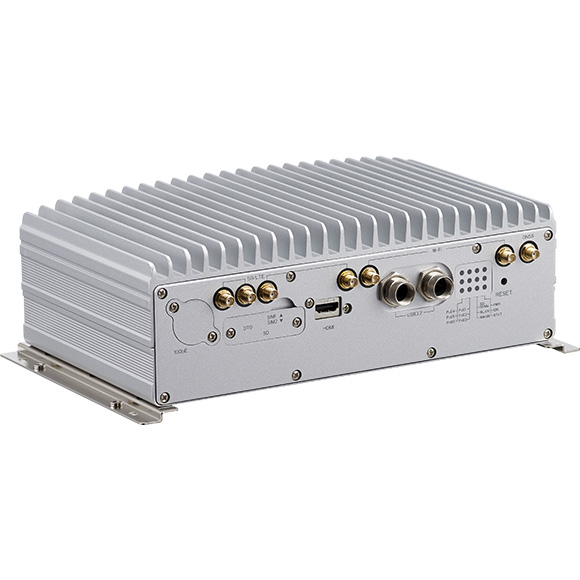

Front I/O Interface |
- 12 x LED Indicators
- 2 x USB3.2, M12 X-coded
- M12 X-coded for 10GbE (option)
- 1 x water-proof HDMI
- 1 x SD2 x Nano SIMs, 1 x SD, 1 x OTG (a door to cover)
|
|
Rear I/O Interface |
- 24~110Vdc power isolation, K-coded
- 6 x GbE PoE, X-coded
- 1 x M17 A-coded (Multi-1): 2 x CANFD+4 x DI+4 x DO
- 1 x M17 A-coded (Multi-2): 2 x RS232+ 1 x Console + remote PWR button/RESET + DR
- 1x SMA for GNSS
- 2x RP-SMA for Wi-Fi
- 2x SMA for LTE/5G
|
|
Display |
- 1 x HDMI 2.0A/B, up to 3840 x 2160@60Hz, water-proof type
|
|
Expansion |
- 1 x Full size mPCIe socket (PCIe 4.0, USB 2.0)
- 1 x M.2 3042/3052 Key B socket (USB 3.2/2.0), 2 x Nano SIM slots
- 1 x M.2 3030 Key E socket (PCIe 4.0, USB 2.0) for Wi-Fi 5/6
|
|
GNSS and Onboard Sensor |
- u-blox NEO-M9N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou
- Optional DR (Dead Reckoning) function, NEO-M9V
|
|
Power |
DC Power
Power Supply
- Nominal voltage: 24~110Vdc power isolation
- OCP & UVP
- Ignition on/off control & programmable on/off delay timer
- Optional for remote power on/off control
|
|
CAN 2.0B (isolation) |
- 2 x CAN FD, compatible with CAN2.0A/2.0B
- IEC 61000-4-2 Electrostatic Discharge (ESD): ± 8KV/15KV (contact/air)
- Up to 5Mb/s in data transmit, 2.5KV isolated
|
|
Environment |
- Operating temperatures: -25°C~70°C (TDP 15W~60W, fanless, w/ 80W PoE)
- Storage temperatures: -40°C~85°C
- Relative humidity: 10%~95% (non-condensing)
- Vibration in operating:
- MIL-STD-810H, 514.8C Procedure 6, Category 4
- IEC 60068-2-64: 2.0g@5~500 Hz
- Vibration in storage:
- MIL-STD-810G, 514.6E Procedure 1, Category 24, 7.7g
- Shock:
- MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g
- Crash hazard: Procedure V, ground equipment=75g
|
|
Certifications |
- CE approval, FCC Class A, UKCA, EN50155, EN45545-2 Certified
|
|
Accessories |
- External Cable (optional)
- Multi-1 adapter cable, 15cm
- Multi-2 adapter cable, 15cm
- K-code power cable, 15cm
- X-coded LAN adapter cable, 15cm
- X-coded USB3.2 adapter cable, 15cm
|
|
I/O Ports |
6-port GbE, M12 X-coded connector
- 9Kbyte Jumbo frame
- IEEE 802.3af/at, total 80W
- IEEE1588 supported
- PSE ON/OFF & Watt monitoring
- GIGA LAN SWITCH: KSZ9477STXI
2 x USB 3.2 Gen 2:
- M12 X-coded connector
- 5V@900mA each
- Up to 10Gbit/s link speed & compliance with USB 2.0 (LS/FS/HS link speed)1 x OTG, micro-USB
2 x RS232 (Tx, Rx, RTS, CTS)
1 x Console (Tx, Rx)RS232 working voltage, ±9V, baud rate up to 115.2kb/s
M17 A-coded connector
4-bit input
- Source: 9~36VDC (12V@1.1mA/24V@2.2mA)
- External: 0~33VDC pull-high, high-level, 3.3 - 33 VDC; low-level, 0-2 VDC
4-bit output
- Source: 9~36VDC (nominal 35mA@24V)
- External: 5~27VDC pull-high, sink current w/ 220mA for each bit, 500mA max (@25C)
Source or external can be selected by software (default: source type)
- 10GbE, M12 X-coded (optional)
Ethernet PHY: Marvell AQR113C-BO-I10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE TX/10BASE-T
Compliant with IEEE 802.3az
9Kbyte Jumbo frame
IEEE1588 supported
- Watch Dog Timer: Yes, through MCU
- Remote ATX PWR & Reset Trigger: Reserved, wafer-type
|
|
Physical Characteristics |
Dimensions & Weight
- 260.0mm x 172.8mm x 87.0mm (w/ mount bracket), weight: 3.5kg
|
|
Support OS |
- NEXCOM Aided Linux (NAL) w/ Jetpack 5.1.1 integrated
- NEXCOM custom functions (GNSS, 5G/NR, 6-axis sensor, MCU control)
- Ubuntu 20.04 (L4T 35.1, Linux Kernel 5.10)
|
|
IP Rating |
IP67 |
|
Ordering Information |
- ATC 3750-IP7-WI6CR (P/N: 10AT0375011X0)
NVIDIA® Jetson AGX™ Orin SOM, 32GB LPDDR5, 64GB eMMC, 6 x PoE+(X-coded), 2 x USB 3.2, 2 x RS232, OTG/Console, IP67, Rail, isolation 24~110Vdc
- ATC 3750-IP7-WI6CR-64 (P/N: 10AT0375012X0)
NVIDIA® Jetson AGX™ Orin SOM, 64GB LPDDR5, 64GB eMMC, 6 x PoE+ (X-coded), 2 x USB 3.2, 2 x RS232, OTG/Console, IP67, Rail, isolation 24~110Vdc
|
|
Hãng |
NEXCOM |
|
CPU Support |
NVIDIA® Jetson AGX™ Orin |
