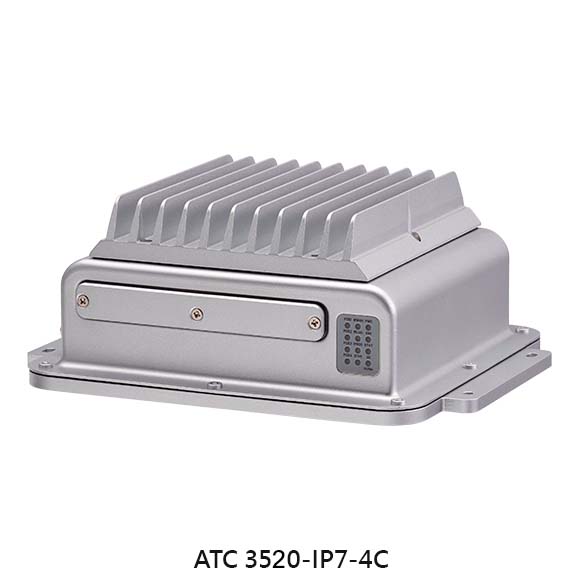

ATC 3520-IP7-4C

NVIDIA® Jetson Orin™ Nano Solution Accelerated Edge AI Computing

Tính năng chính

Edge AI in-vehicle/rail computer
Built-in NVIDIA® Jetson Orin™ Nano SOM, up to 40(sparse) INT8 TOPS compute
4-Port GbE PoE+ for IP CAM/LiDAR sensors
HEVC/H.265 hardware CODEC, 11x 1080p30 compute power (decoded)
Wide range operating temperature of -30~70°C
The rugged, fanless design with IP67 rating
Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity, 128GB in default
NEXCOM Acceleration Linux (NAL) OS w/ JetPack 5.1.1 integrated
Expansible for LTE/5G NR & Wi-Fi 5/6
9~36V DC-in with ignition control & OCP/OVP
CE/FCC, UKCA certified

Giá sản phẩm: Liên hệ

AI has become an essential component of automated vehicle technologies. With built-in cost-effective performance/watt-cost NVIDIA^® Jetson Orin™ Nano SOM, ATC 3520 can deliver up to 40(sparse)INT8 TOPS for running modern AI workloads while consuming 15W low power. This is suitable for AI power IoT gateway, OHV AI Edge recognition, AI traffic sign control, and factory automation/machine vision, to enhance the productivity and lowering TCO. ATC 3520 is a fanless, compact, and IP67 certified computer. It features 9~36VDC with IGN control, 4 PoE+ for IP CAM deployment to 4Kp30/1080p60. Moreover, ATC 3520 is designed with diverse peripheral ports, like USB 3.2, isolation CANBus, RS232, Console, DI/DO, OTG, and HDMI for connecting to a wide range of devices/sensors. With the 5G NR, Wi-Fi 5/6 modules installed, ATC 3520 can enhance AI inference through Cloud Service Provider (CSP). As for harsh environment applications, ATC 3520 can operate at a wide range temperature of -30~70°C and meet the MIL-STD-810G military standard for vibration and shock resistance. In terms of regulation, ATC 3520 is compliant with CE/FCC Class A, UKCA and Emark (E13)/EN50155.

Processor	NVIDIA® Jetson Orin™ Nano SOM 6-core (Orin™ Nano 8GB/4GB) Arm® Cortex A78AE 64-bit CPU 512/1024-core + 16/32-core Tensor, 625MHz, Ampere 40 INT8 TOPS (Orin™ Nano 8GB), 20 INT8 TOPS (Orin™ Nano 4GB), sparse OpenGL 4.6, OpenGL ES 3.2, and Vulkan 1.1, CUDA10 260-pin SO-DIMM form facor compatible with Orin NX NVIDIA® JetPack 5.1.1
Memory	4GB/8GB 64-bit/128-bit LPDDR5 for Nano 4GB/8GB 2133 MHz
Storage	1 x M.2 2280/3080 Key M PCIe 3.0 x4 NVMe SSD, 128GB in default

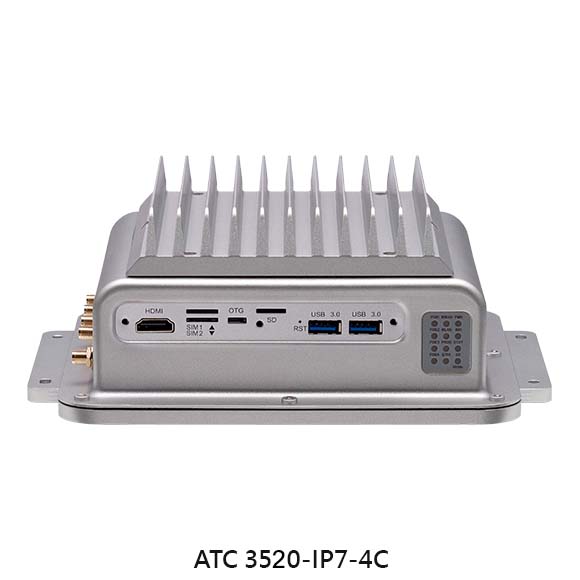

Front I/O Interface	12 x LED indicators Reset button, 1 x OTG 2 x Micro SIM slots, 1 x HDMI, 2 x USB 3.2

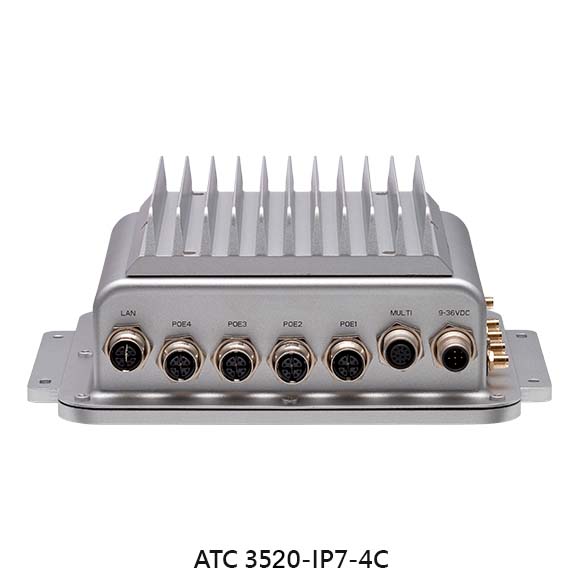

Rear I/O Interface	I/O Ports, Rear-Plate 9~36VDC-in, S-coded 4 x GbE PoE & 1 x GbE, X-coded M12 multi-port (2 x RS232 & 1 x console, 1 x CAN) I/O Ports, Side-Plate 2 x Antenna holes for Wi-Fi 5/6 modules (PR-SMA ant.) 2 x Antenna holes for LTE/5G module (SMA ant.) 1 x A ntenna hole for GNSS (RP-SMA ant.)
Display	1 x HDMI 2.0A/B, up to 3840 x 2160@60Hz
Expansion	1 x Full size mPCIe socket (PCIe 4.0 + USB 2.0) 1 x M.2 3042/3052 Key B socket (USB 3.2) with 2 x micro SIM slots
Power	Nominal voltage: ~9~36V (ATC 3520-IP7-4C); 24V for rail (ATC 3520-IP7-AI4CR) Cranking voltage: 6V~9V (less than 20 sec) OCP & UVP (shut down once exceeding 37V) Ignition on/off control & programmable on/off delay timer Opional for remote power on/off control
GPS and Sensor	U-blox NEO-M9N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou Optional DR (dead reckoning) function, NEO-M9V 3D accelerometer and 3D gyroscope, ST LSM6DSLTR
CAN 2.0B (isolation)	1 x CAN 2.0A/2.0B IEC 61000-4-2 Electrostatic Discharge (ESD): ±4KV/8KV (contact/air, whole system) 2.5KV isolated
Environment	Operating temperatures: -30°C~70°C NVIDIA® Jetson Orin™Nano@7W/10W15W, w/ 30W PoE) Storage temperatures: -40°C~85°C Relative humidity: 10%~95% (non-condensing) Vibraion in operating - MIL-STD-810G, 514.6C, Procedure 3, Category 4 - IEC 60068-2-64: 2.0g@5~500 Hz - MIL-STD-810G, 514.6E, Procedure 1, Category 24, 7.7g approx. Shock - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Certifications	CE approval, FCC Class A, UKCA EN50155 (ATC 3520-IP7-AI4CR)
Accessories	External Cable Power extension cable, 20cmM12 multi-port adapter cable, 20cm
I/O Ports	GbE 1 port GbE, X-coded 9Kbyte Jumbo frame, PTP (IEEE 1588) support Controller: Intel® I210-IT PoE 4-Port Gbps, X-coded IEEE 802.3af/at compliant 30W (4-port) power budget in totalPoE on/off and power watt monitoring USB 2 x USB 3.2, type A - 5V@900mA each - up to 5Gbit/s link speed & compliance with USB 2.0 (LS/FS/HS link speed) 1 x OTG micro USB, 2 x USB2.0 wafer-type (reserved) Serial Port 1 x RS232 (Tx, Rx, CTS, RTS) 1 x RS232 (Tx, Rx) 1 x Console port (Tx, Rx)RS232 working voltage, ±9V, baud rate up to 115.2kb/s DI/DO (reserved) 4-Bit input - Source: 9~36VDC (12V@0.6mA/24V@1.2mA) - External: 0~33VDC pull-high, high-level, 3.3 - 33VDC; low-level, 0-2 VDC 4-Bit output - Source: 9~36VDC (nominal 35mA@24V) - External: 5~27VDC pull-high, sink current w/ 220mA for each bit, 500mA max (@25C) Source or external can be selected by software (default: source type)
Physical Characteristics	ATC 3520-IP7-4C Dimensions - 213mm x 167mm x 82.8mm (w/ mount bracket) - 2.4kgATC 3520-IP7-AI4CR - 213mm x 167mm x 122.8mm (w/ mount bracket) Weight: 3.2kg
Support OS	NEXCOM Acceleration Linux (NAL) - NV Jetpack 5.1.1 package - NEXCOM custom functions (GNSS, 5GNR, 6-axis sensor, MCU control) - V4L2 - Ubuntu 20.04@Kernel 5.10
Ordering Information	ATC 3520-IP7-4C (P/N: 10AT0352000X0) IP67 rating edge AI compute, NVIDIA® Jetson Orin™ Nano SOM, 4GB LPDDR5, 128GB NVMe, 4 x GbE PoE, 1 x GbE, 2 x RS232, 2 x USB 3.2 ATC 3520-IP7-AI4CR (P/N: 10AT0352001X0) IP67 rating edge AI compute, NVIDIA® Jetson Orin™ Nano SOM, 4GB LPDDR5, 128GB NVMe, 4 x PoE+ (X-coded), 1 x GbE (X-coded), 2 x USB 3.2, 24VDC w/ power isolation, rail
