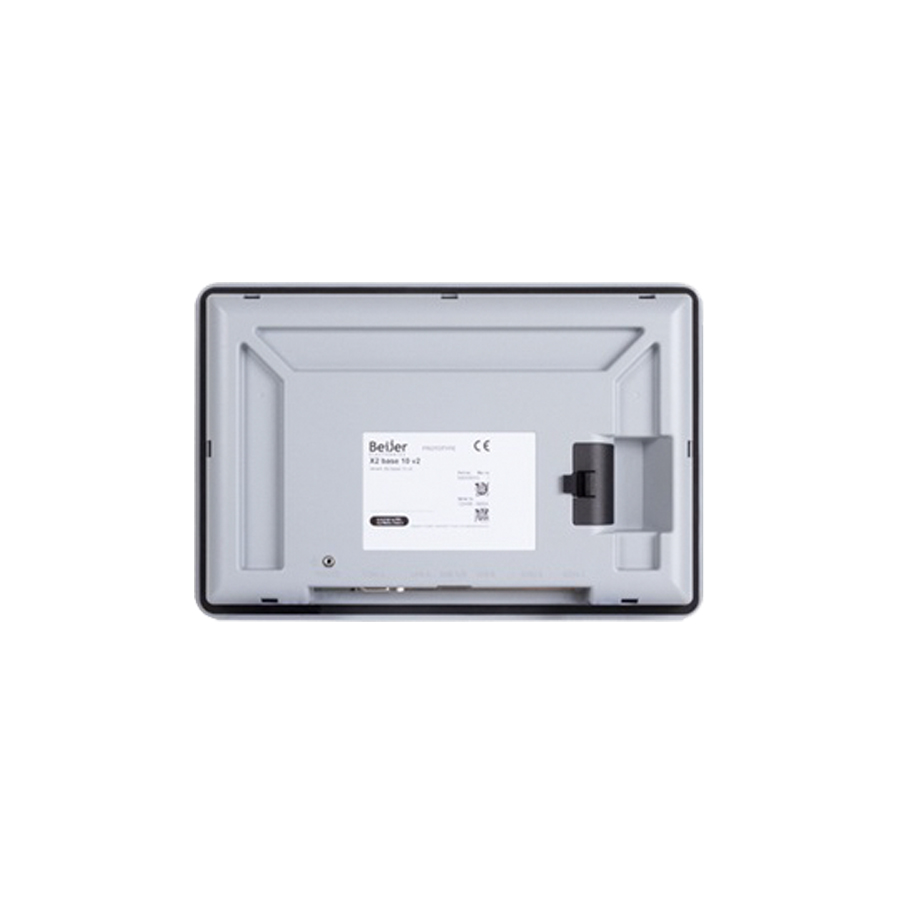

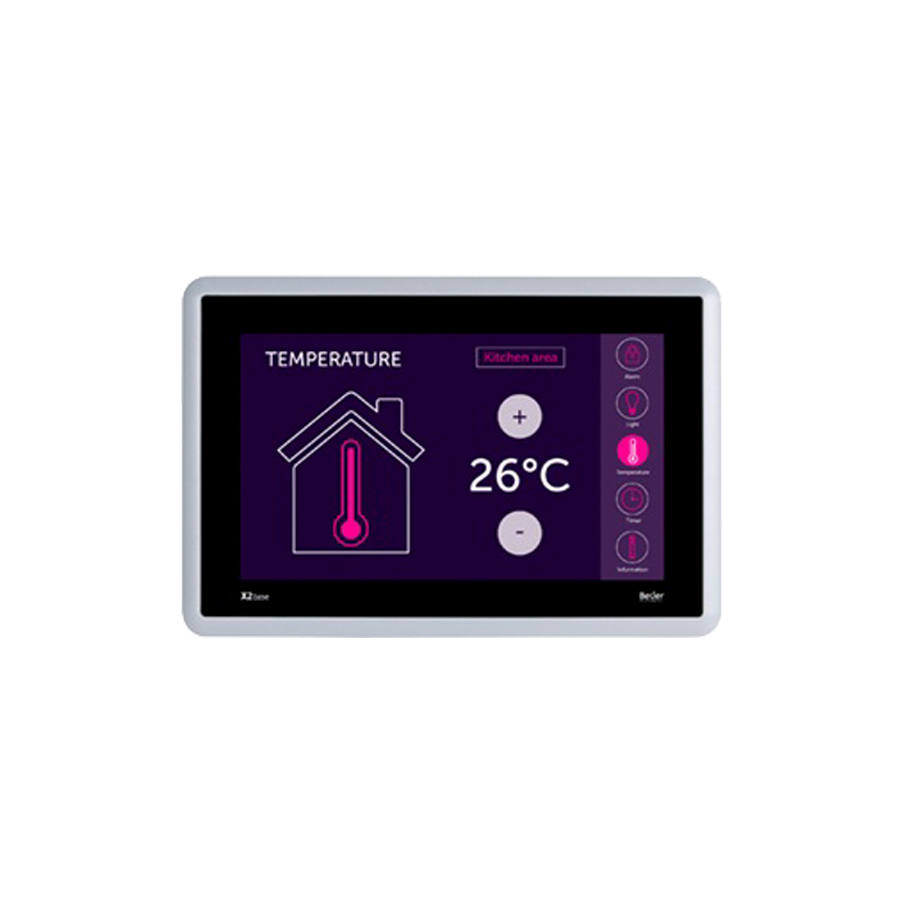

HMI 10" X2 base 10 v2

X2 base 10 v2

10" HMI with runtime iX

Tính năng chính

1024 × 600 pixel (17:10)
TFT-LCD touch screen
1 × Ethernet, 4 × serial, 1 × USB as standard
Operating temperature -10° to +50°C
CE, FCC, UL approvals

Giá sản phẩm: Liên hệ

X2 base panels are cost-effective industrial HMIs with high resolution touch-screens and modern design. The X2 base panels combine IP65 corrosion resistant plastic housing with the full version of the iX software, providing a cost-effective yet advanced HMI solution for small to medium applications.

The X2 base family is now updated with the new range of X2 base v2 HMI panels offering improved performance, more display sizes, and an additional range of high-performance HMIs.

Cost-effective, full functionality HMIs
High-resolution touch-screens and modern design
IP65 corrosion resistant plastic housing with the full version of the iX software

Processor	CPU: ARM Cortex A8 600MHz
Memory	RAM: 512 MB
Storage	FLASH: 2 GB
Display	Size diagonal: 10.1" diagonal Resolution: 1024 × 600 pixel (17:10) Backlight: LED Backlight Backlight life time: 30000 hours Backlight brightness: 350 cd/m² Backlight dimming: Industrial Dimming Display type: TFT-LCD with LED backlight
Expansion	Expansion port: No SD card: No USB: 1
Power	Input voltage: 24 V DC (18 to 32 VDC) CE: The power supply has to be conform with the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supply has to be conform with the requirements for class II power supplies. Power consumption (max): 6.9 W Input fuse: Internal DC fuse
Environment	Operating temperature: -10°C to +50°C Storage temperature: -20°C to +60°C Shock: 15g, half-sine, 11ms according to IEC60068-2-27 Vibration: 1g, according to IEC 60068-2-6, Test Fc Sealing front: IP65, NEMA 4X/ 12 and UL 50E Type 4X/ 12 Sealing back: IP20 Humidity: 5% – 85% non-condensed
Certifications	General: CE, FCC, UL 61010-2-201 Safety: UL 61010-1, UL 61010-2-201, CAN/CSA-C22.2 No. 61010-1, CAN/CSA-C22.2 No. 61010-2-201
I/O Ports	Digtal IO Digital output: No Serial communication Number of serial ports: 1port9pinDsub, 1port3pinScrew Serial port 1: RS 232 (RTS/CTS)Serial port 2RS422/485 Serial port 3: RS 485 Serial port 6: RS 485 Ethernet communication Number of Ethernet ports: 1 Ethernet port 1: 1x10/100 Base-T (shielded RJ45)
Brightness	300 - 350
IP Rating	IP65
Size	10" - 11"
Hãng	BEIJER ELECTRONICS
