W18IT3S-MLA3FP

Tính năng chính

  • Intel® Core™ i5-1135G7 2.4 GHz (turbo to 4.2GHz) Processor
  • Anti-Corrosion Housing / Fanless
  • Projective Touch
  • Compliant with MIL-STD-810G , MIL-STD-461E/F/G
  • Flush Rack / Rack Mount Mechanical Design (8U)
  • Convenient On-Screen Display Controls
  • AC 110~240 V Power input default
  • Isolation DC 9~36 V Power input (Optional)
  • Built-in Light Sensor for auto brightness control
  • Windows 11 IoT Enterprise SAC (64 bit) (Optional) / Windows 10 IoT Enterprise (64 bit) (Optional) / Linux Ubuntu 22.04 (Optional)

Giá sản phẩm: Liên hệ

Lượt xem 30

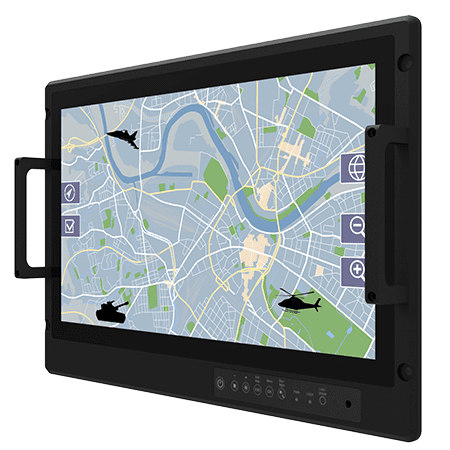

Sleek Flush Rack / Rack Mount Mechanical Design

The 18" Defence Console Rack Panel PC boasts a sleek flush rack/rack mount mechanical design, occupying just 8U of space. This compact form factor is optimized for space-constrained environments, allowing for efficient use of limited rack space. Its robust construction and secure mounting system ensure stability during transportation and operation.

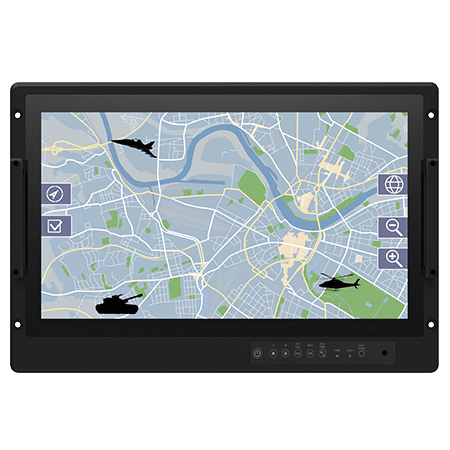

Image of Winmate 18-inch Defence Console Rack Panel PC.



Image of Winmate 18-inch Defence Console Rack Panel PC is thoughtfully designed with on-screen display controls, providing users with seamless access to adjust various settings directly on the screen.

Convenient On-Screen Display Controls

Designed for user convenience, this panel PC comes equipped with on-screen display controls. Users can easily access and adjust various settings directly on the screen, eliminating the need for external peripherals. This intuitive interface enhances operational efficiency and streamlines user interaction, ultimately improving overall performance.



Electromagnetic Compatibility

Meeting the MIL-STD-461E/F standard, this panel PC ensures electromagnetic compatibility, effectively reducing electromagnetic interference and susceptibility. This feature is vital in scenarios where electronic equipment must coexist without hindering each other's performance, guaranteeing reliable communication and data integrity.

Image of Winmate Image of Winmate 18-inch Defence Console Rack Panel PC with MIL-STD-461E/F.



Processor
  • Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
  • Intel Core i5-1145G7 2.6GHz (up to 4.4GHz) (Optional)
Memory
  • 1 x SO-DIMM, DDR4 3200 MHz, 4GB
  • 8GB (Optional)
  • 16GB (Optional)
  • 32GB (Optional)
Storage
  • 1 x M.2 M-Key 2242 SATA SSD or 1 x M.2 M-Key 2280 NVMe SSD 128GB
  • 256GB (Optional)
  • 512GB (Optional)
  • 1TB(for NVMe) (Optional)
  • 2TB(for NVMe) (Optional)
  • 4TB(for NVMe) (Optional)
  • 1 x SATA III , up to 2TB (Optional)
Display
  • Touch / Glass: Projected Capacitive Multi Touch Screen PCAP with With ITO Flim (Optional)
  • Size: 18.5 inches
  • Resolution: 1920x1080
  • Panel Brightness: 500.0 nits
  • Contrast Ratio: 1000:1
  • View Angles: 89,89,89,89
  • Active Area: 408.96x230.04 mm
Security
  • TPM 2.0
Cooling
  • Fanless Design
Power

Power Rating

  • AC 100~240V, Universal, ±10%
  • DC 9~36V, ±10% (Optional)
Environment
  • Operating Humidity: 10% to 95% RH
  • Operating Temperature: -20°C~60°C
  • Storage Temperature: -30°C~70°C
Certifications

* Compliance

  • MIL-STD 461E/F/G:

RE101 / RE102

CE101 / CE102

CS118 with EMI Glass / Touch(Optional)

RS101 / RS 103 CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116

  • MIL-STD 810G/H

Vibration Method 514.6

Humidity Method 507.5

Transit Drop Method516.6

Accessories
  • 1 x Manual (Hardcopy)
  • 1 x Driver CD
  • 1 x Power Cord (MIL-DTL-38999/1)
Control
  • Button

8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock

I/O Ports
  • USB Port: 2 x USB 3.2 Gen 1
  • Serial Port: 1 x RS232(Default)/422/485
  • LAN: 2 x RJ-45
  • Video: 1 x HDMI (Optional)
Ethernet controller
  • 2 x Intel® Ethernet Controller
Physical Characteristics
  • Dimension: 465 x 327 x 75 mm
  • Mounting: Rack Mount/ VESA Mount
  • Enclosure: Metal Housing with Aluminum Bezel
Support OS
  • Windows 11 IoT Enterprise SAC (64 bit) (Optional)
  • Windows 10 IoT Enterprise (64 bit) (Optional)
  • Linux Ubuntu 22.04 (Optional)
Brightness 400 - 500
Size 18" - 18.5"
Hãng WINMATE
CPU Support Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
Operating System Windows 10, Windows 11Linux

DATASHEETS
W18IT3S-MLA3FP.pdf
[ W18IT3S-MLA3FP.pdf , 0.27MB , Feb.22.2024 ]
