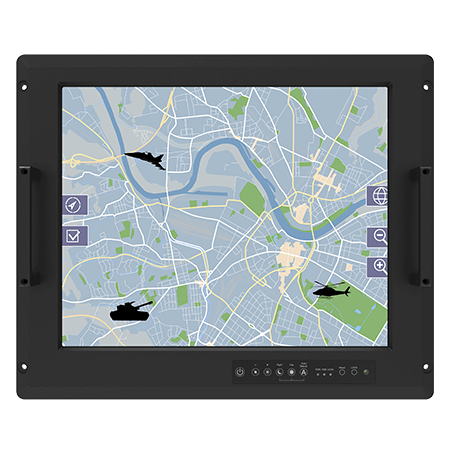

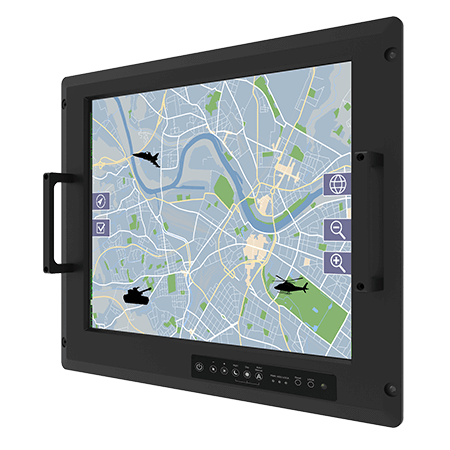

Panel PC R19IT3S-MLA3-89

R19IT3S-MLA3-89

19" Intel® Core™ i7-1165G7 Defence Console Rack Panel PC

Tính năng chính

19" SXGA TFT LCD
Intel® Core i7-1165G7 2.8GHz (up to 4.7GHz) Processor
Anti-Corrosion Housing / Fanless
Compliant with MIL-STD-810G
Flush Rack / Rack Mount Mechanical Design (9U)
Convenient On-Screen Display Controls
AC 110~240 V Power input default
Isolation DC 9~36 V Power input (Optional)
Built-in Light Sensor for auto brightness control
Defence Grade Power & Signal Connector (MILDTL38999/1 & 38999/3)
Operating System

Windows 10 IoT Enterprise (64 bit) (Optional) / Windows 11 IoT Enterprise SAC (64 bit) / (Optional) Linux Ubuntu 22.04 (Optional)

Giá sản phẩm: Liên hệ

Reliable Computing Tailored for Defence Applications

To meet the defence and defense regulatory requirements, all Winmate's Defence Console Rack Panel PCs are built and tested according to MIL-STD-810G environmental and MIL-STD 461F EMC standards. Winmate performs in-house reliability tests to ensure optimal performance in harsh defence environments.

Winmate 19-inch Defence Console Rack Panel PC R19IT3S-MLA3-89 features Reliable Imaging Solutions for Defence Applications

Ergonomic command console Design for Winmate 19-inch Defence Console Rack Panel PC R19IT3S-MLA3-89

Command Center Focused Design

Increase the efficiency of the command center and control room personnel. Built your ergonomic command console that complies with defence and defense precise needs with Defence Console Rack Panel PCs that feature rack mount mechanical design (8U).

Defence – Grade Connectors for Compatibility with Existing Defence Systems

The Defence Console Rack Panel PCs come with a MIL-DTL-38999 type I power input connector. For selected models, MIL-DTL-38999 type III input/ output connectors – high-performance cylindrical connector for cable-to-panel applications in the defence, air traffic control, or other mission-critical situations. Compatible with existing defence systems.

Winmate 19-inch Defence Console Rack Panel PC R19IT3S-MLA3-89 can be used for nearly any purpose

Winmate 19-inch Defence Console Rack Panel PC R19IT3S-MLA3-89 features Ultimate Touch Experience and Convenient On-Screen User Controls

Ultimate Touch Experience and Convenient On-Screen User Controls

The Defence Console Rack Panel PCs feature a user-friendly touchscreen and physical OSD buttons for fast access to the central control located on the front panel.

Auto Brightness Control with Built-in Light Sensor

The Defence Console Rack Panel PCs feature a built-in light sensor for auto-brightness control. The screen brightness effortlessly changes with the lighting conditions throughout the day.

Winmate 19-inch Defence Console Rack Panel PC R19IT3S-MLA3-89 with Brilliant Screen

Processor	Intel Core i7-1165G7 2.8GHz (up to 4.7GHz)
Memory	1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional)
Storage	1 x M.2 M-Key 2280 NVMe SSD, 128GB 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 4TB (Optional)
Display	Size: 19.0 inches Touch / Glass: AR Protection Glass 5 Wires Resistive Touch (Optional) 5 Wire Resistive with EMI Mesh Filter (Optional) EMI Glass (Optional) Resolution: 1280x1024 Panel Brightness: 350.0 nits Contrast Ratio: 1000:1 View Angles: 85,85,80,80 Active Area: 376.32x301.06 mm
Cooling	Fanless Design
Power	Power Rating AC 100~240V, Universal, ±10% DC 9~36V, ±10% (Optional)
Environment	Operating Humidity: 10% to 95% RH Operating Temperature: -20°C~60°C Storage Temperature:-30°C~70°C
Certifications	* Compliance MIL-STD 461E/F/G RE101 / RE102 CE101 / CE102 CS118 with EMI Glass / Touch(Optional) RS101 / RS 103 CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116 MIL-STD 810G/H Vibration Method 514.6 Humidity Method 507.5 Transit Drop Method516.6 *Certification: CE, FCC
Accessories	User Manual (Hardcopy) CD-ROM with Driver Utility Power Cord MIL-DTL-38999/1 RS232 Cable MILDTL38999/3
Control	Button 8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock
I/O Ports	USB Port: 1 x USB 2.0 A Type (MIL-DTL-38999/3) Serial Port: 2 x RS232 (MILDTL38999/3) LAN: 1 x LAN (MIL-DTL-38999/3)
Ethernet controller	2 x Intel® Ethernet Controller
Physical Characteristics	Dimension: 482.6 x 399.3 x 81.4 mm Mounting: VESA Mount/ Rack Mount Enclosure: Metal Housing with Aluminum Bezel
Support OS	Windows 10 IoT Enterprise (64 bit) (Optional) Windows 11 IoT Enterprise SAC (64 bit) (Optional) Linux Ubuntu 22.04 (Optional)
Brightness	300 - 350
Size	19"
Hãng	WINMATE
CPU Support	Intel Core i7-1165G7 2.8GHz (up to 4.7GHz)
Operating System	Windows 10, Windows 11Linux
