PPC-120T-AL
Intel® Celeron® J3455E Quad Core CPU Fanless System
Tính năng chính
- Intel® Celeron®J3455E quad core CPU
- Support TPM 2.0
- Support ambient light sensor for auto dimming
- 4 x RJ45 with Intel® I210-IT GbE controller
- 1 x Support POE (PD), also support GbE LAN
- 3 x GbE LAN - 2 x USB 3.0 Type A, 1 x USB 3.0 Type C (w/DP, ALT mode), 2 x Isolated RS232/422/485, 1 x Fan/Buzzer connector, 1 x Display port
- 1 x 24V DC in with 3-pin phoenix contact, redundant with PoE port
- IP65 front bezel
- IP20 back system
Giá sản phẩm: Liên hệ
Lượt xem 33

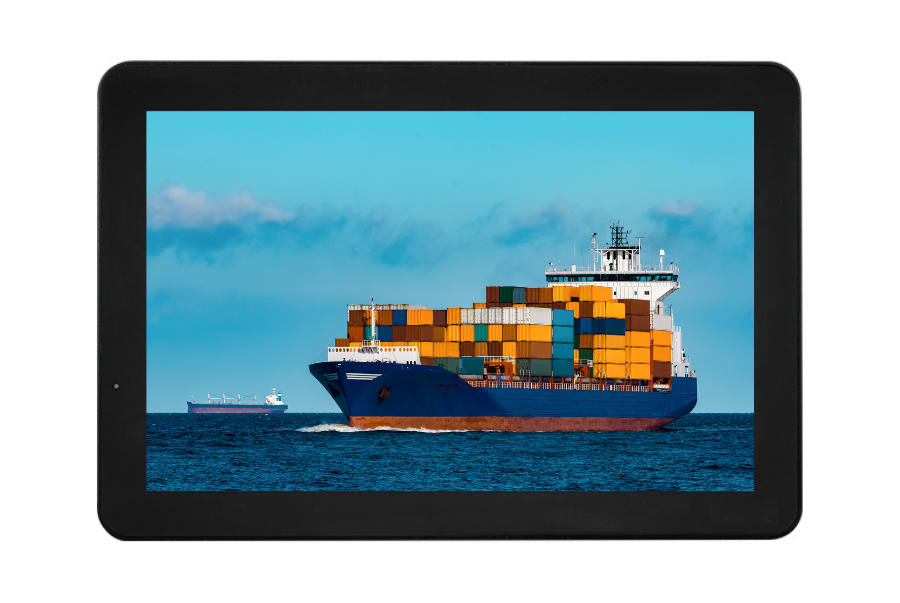

PPC-120T-AL is a fanless panel box PC based on the quad cord Intel® Celeron® J3455E TDP 10W with an operatinges temperature range from -10°C to 55°C. It is aimed for use in maritime and offshore environments. PPC-120T-AL comes with both 24VDC and PoE power input, providing redundant isolated power design, with uninterrupted source switching.
OS System supports Windows 10
* Thông tin đặt hàng
System
PPC-120T-AL-S (P/N: 10Q00120T01X0)
- Intel J3455E quad core CPU
- Fanless Panel BOX PC
- 1 x 8 GB 8 GB DDR3L industrial So-dimm 512M x 8 (16) 1600 204-pin H: 30mm
- 1 x M.2 2242 128GB TLC T: -40~85°C
Optional
Adapter: 60W 24V/2.5A W/ 3-pin phoenix contact (P/N: 7400060065X00 )
OS: Windows 10 (P/N: 88Q0000CE00X2)
| Display |
|
| Power |
- Power input: +18 to 32 Vdc - 1 x Optional 24V, 60W power adapter |
| Environment |
|
| Certifications |
|

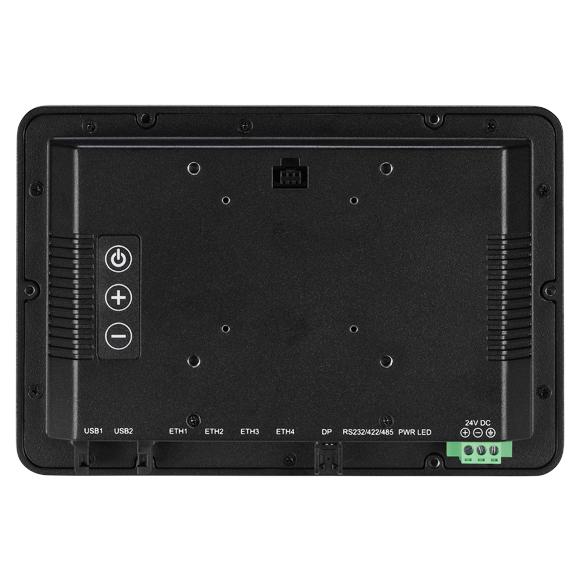

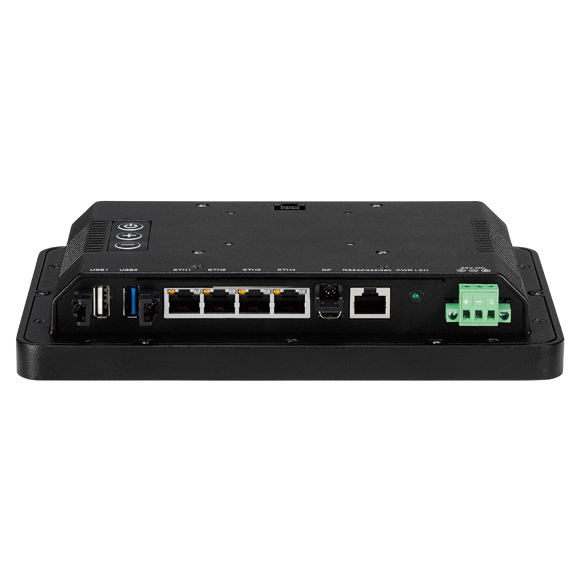

| I/O Ports |
- 1 x Support PoE (PD), also support GbE Lan
|
| Physical Characteristics |
|
| Hãng |
