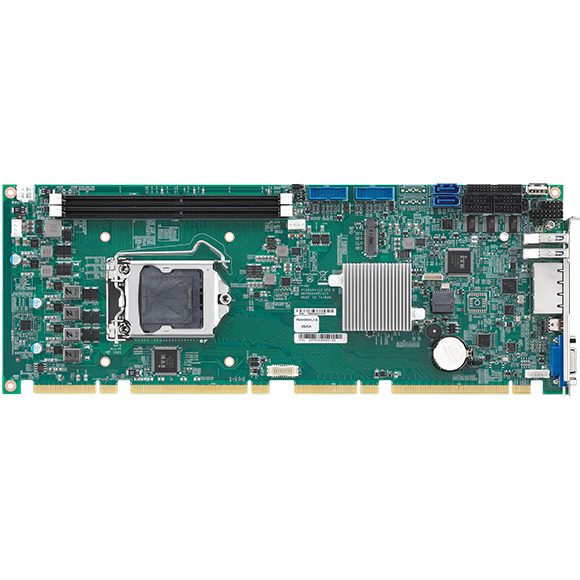

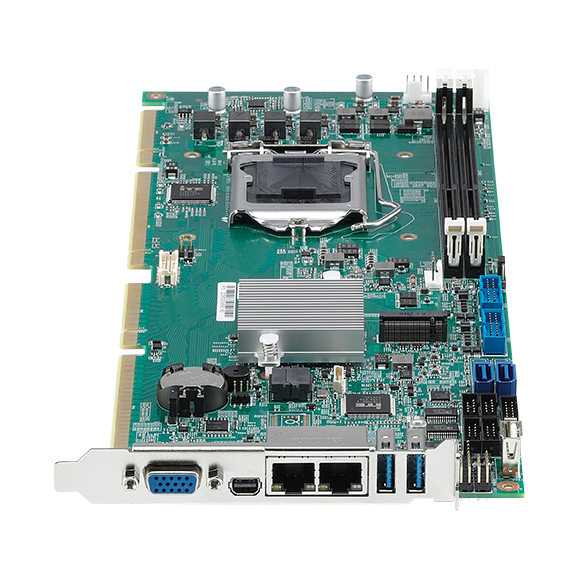

PEAK 889VL2

PICMG 1.3 Full-Size SBC with Intel® Q370/H310 Support 8th Generation Intel® Core™ i7/i5/i3 Processors

Tính năng chính

  • Intel® Coffee (8th generation Core™ i7/i5/i3) processor, 65W TDPs, LGA1151 socket
  • Support Intel® Q370/H310 PCH chipset PICMG 1.3 specification
  • Support 2 x DDR4 Long DIMM 288-pin socket
  • Support multiple display from VGA & mini DP & DP
  • 4 x SATA III, 2 x GbE LAN, 4 x COM, 1 x LPT, 4 x USB 3.1, 2 x USB 2.0, 1 x HD audio, M.2
  • Optional: TPM, CPU cooler, M.2 storage

Giá sản phẩm: Liên hệ

Lượt xem 10

The PEAK 889VL2 serial is a PICMG1.3 full-size single-board computing. It equipped with Intel® 8th generation Core™ i7/i5/i3 processors and Intel® Q370/ H310 chipset. It comes with dual DDR4 DIMM socket up to 32GB DDR4 2666MHz with non-ECC support and integrated HD Graphic controller. The PEAK 889VL2-Q SKU with Intel® Q370 PCH providing high performance and rich expansion. The SATA 3.0 ports with RAID 0, 1, 5 and 10 helps provide quick access to data files and data protection. Furthermore, the advanced storage capabilities with Intel® RST features 4 x PCIe Gen3 on NGFF M.2 form factor (2280) to maximizes storage performance and it also features an integrated Intel® AMT 12 for easier maintenance. The PEAK 889VL2-H SKU with Intel® H310 PCH provides high performance and cost effective solution.



Processor
  • Intel® 8th generation Core™ i7/i5/i3, TDP 65W
  • AMI system BIOS
  • 16 Mbit SPI depended on AMT function
Memory
  • 2 x Dual channel DDR4 2666 support up to 32GB, non-ECC
  • 2 x LAN Intel® I219-LM & I211 PCIe GbE LAN contorller
Rear I/O Interface
  • 2 x USB 3.1 ports
  • 2 x GbE LAN ports
  • 1 x VGA connector
  • 1 x Mini DP connector
Display
  • VGA connector
  • Mini DP connector
  • DP connector (optional)
Chipset

Q370 PCH

  • 2 x USB 3.1 Gen1/2, 4 x USB 3.1 Gen1 and 5-port USB 2.0 2-Port through I/O bracket (USB 3.1 GEN1/2+redriver)
  • 4-Port through 2.0mm box header 2 x 10 (USB 3.1 Gen1)
  • 1-Port Type A (USB 2.0)
  • 4-Port through backplane (USB 2.0)
  • Storage device 4 x SATA III 6.0Gb/s
  • 1 x M.2 2280 M key with 4 x SATA III & PCIez (NVMe Gen3), support Intel® RST

H310 PCH

  • 4 x USB 3.1 Gen1 2-Port through I/O bracket (USB 3.1 Gen1)
  • 2-Port through 2.0mm BOX header 2 x 10 (USB 3.1 Gen1)
  • Storage device 2 x SATA III 6.0Gb/s
Power
  • Power source from backplane through golden finger and AUX +12V
  • Support ATX/AT function by jumper setting
  • BIOS default is (ATX mode)
Environment
  • Operating temperature: -20°C~60°C
  • Storage temperature: -20°C~80°C
  • Relative humidity: operating 10%~90%, non-condensing
Certifications
  • CE/FCC Class A compliant
I/O Ports
  • 1 x PCI express x16 (PEG Gen3)
  • 1 x PCI express x4 Gen 3 (Q370); (Gen 2 only for H310)
  • 4 x PCI to backplane
  • 1 x RS232/485/422 and +5V/RI/+12V select by COM 2
  • 3 x RS232 by COM1, 3, 41 x LPT
  • 1 x PS/2 headerWDT 1~255 steps by software program
  • 1 x HD audio header (compatible with NEXCOM audio daughter board PN: 10E000HDA00X0 EBK-HAD)
  • 1 x Front panel connector
  • 1 x ATX 4-pin power connector
Physical Characteristics
  • Dimension: 338.58 mm x 126.39 mm, 8 layers (single side)
Support OS
  • Windows® 10 64-bit
Hãng NEXCOM
CPU Support Intel® Core™ i3/i5/i7

DATASHEETS
PEAK889VL2.pdf
[ PEAK889VL2.pdf , 0.2MB , Jun.19.2024 ]
