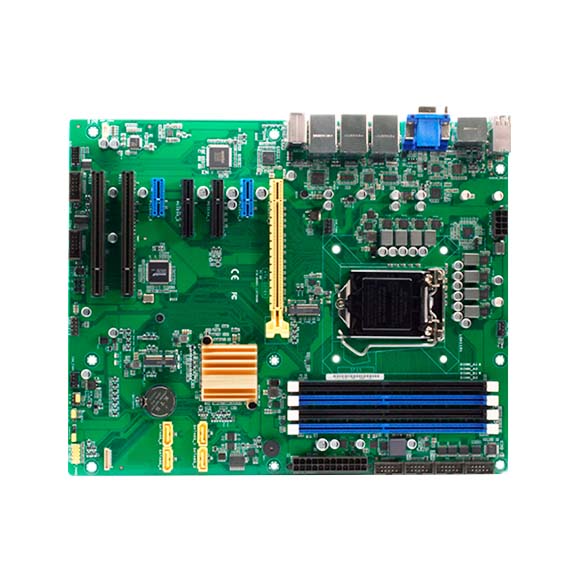

NEX 913

ATX Industrial Motherboard with 8th/9th Generation Intel® Core™ Processor

Tính năng chính

  • 8th/9th Generation (Coffee Lake S, Coffee Lake S Refresh) Intel® Core™ i9/i7/i5/i3, Pentium® 14nm LGA 1151 socket processor, Max. 95W, PCH Q370
  • 4 x U-DIMM DDR4 with non-ECC 2666MHz up to 128GB
  • Support triple display HDMI,

Giá sản phẩm: Liên hệ

Lượt xem 6

The NEX 913 is an ATX board. It is equipped with 8/9th Generation Intel® Core™ i9/i7/i5/i3/Pentium® processors to support 95W max and Intel® Q370 chipset. It comes with four DDR4 DIMM sockets up to 128GB DDR4 U-DIMM 2666MHz with non-ECC support and integrated HD graphic controller. The NEX 913 with Intel® Q370 PCH provides high performance and rich expansion. The SATA 3.0 ports with RAID 0, 1, 5, and 10, helps to provide quick access to data file sand data protection. Furthermore, it also features an integrated Intel® AMT 12 for easier maintenance.

NEX 913 operates at a temperature range from 0°C to 60°C, this design is ideal for embedded applications that run in outdoor or semi-outdoor environments, such as kiosks, outdoor systems installed in harsh environments, home automation, and thin clients.

Processor
  • 8/9th Generation (Coffee Lake S, Coffee Lake S Refresh) Intel® Core™ i9/i7/i5/i3/Pentium® LGA 1151 socket processor, Max. 95W
  • Intel® Q370 Express Chipset
Memory
  • 4 x DDR4 U-DIMM memory socket with non-ECC support, up to 64 GB 2666MHz
Display
  • 1 x VGA connector (resolution up to 1920 x 1200@60Hz).
  • 1 x HDMI 1.4b connector (resolution up to 4096 x 2160@24 Hz 2560 x 1600@60 Hz, with digital audio)
  • 1 x DP connector (resolution up to 4096 x 2160@24 Hz 3840 x 2160@60 Hz, with digital audio)
Power
  • 1 x 24-pin ATX connect/1 x 8-pin (2 x 4) ATX 12V power connector
  • Support both AT and ATX power supply modes
Environment

Board level operating temperature: 0°C to 60°CStorage temperature: -40˚C to 85˚CRelative humidity:
- 10% to 95% (operating, non-condensing)
- 5% to 95% (non-operating, non-condensing)
Certifications
  • Meet CE/FCC Class A
I/O Ports

System

  • 4 x USB 3.2 Gen 2 ports (10 Gbps), 2 x USB 3.2 Gen 1 ports (5 Gbps), 4 x USB 2.0 ports
  • 5 x RS232, 1 x RS232/485/422 & (COM1, supports 5V/12V/RI optional) Realtek ALC897, 6 channel HDA codec
  • 1 x Front panel header, 8-bit digital I/O (in/out programmable), WDT, chassis Intrusion
  • Nuvoton NPCT750 TPM2.0 onboard
  • 3 x Fan connector

Rear I/O

  • 1 x 4 deck USB 2.01 x VGA, 1 x HDMI, 1 x DP2 x RJ45

- Intel® PHY I219-LM GbE LAN x 1 (supports Intel® AMT 12.0)
- Intel® I210-AT GbE LAN x 1

  • 4 x USB 3.2 (Gen2), 2 x USB 3.2 (Gen1)
  • 1 x 3 ports HD Audio Jack (Line, Mic-in, Line-out)
  • Internal I/O2 x USB 2.0 (pin header)
  • 6 x Serial ports

- 5 x RS232, 1 x RS232/485/422 (by COM1)

  • 1 x 8-bit digital I/O interface (ln/Out programmable)
  • HA audio:

- 1 x speaker header (Line-out)
Physical Characteristics
  • ATX form factor, 12”x 9.6” (305mm x 244mm)
