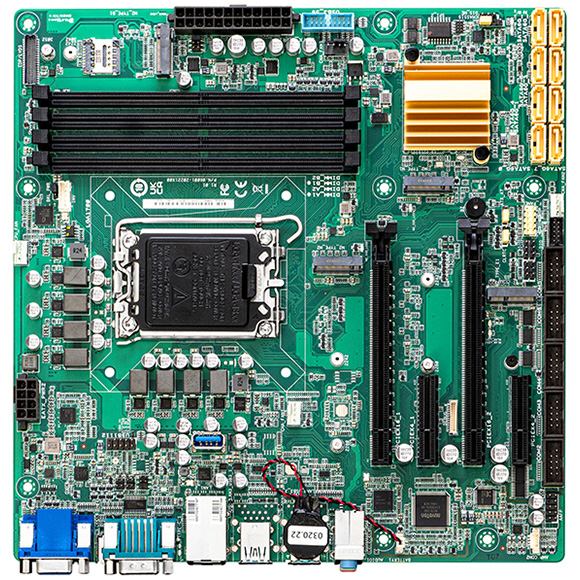

NEX 818

Micro ATX Supports 12/13 Gen Intel® Core™ LGA1700 Socket Processor

Tính năng chính

  • Intel® LGA1700 socket supports 12/13th Gen Intel® Core™ processor (max 125W)
  • Intel® Q670E Express chipset
  • 4 x DDR5 4000MHz up to 128GB
  • 1 x Intel® i210-AT GbE, 1 x

Giá sản phẩm: Liên hệ

Lượt xem 2

The NEX 818 is a Micro ATX board. It is equipped with the 12/13th Gen Intel® Core™ processors to support up to a maximum of 125W max and Intel® Q670E chipset. It comes with 4 x DDR5 4000MHz DIMM sockets up to 128GB with non-ECC, un-buffered memory, dual-channel memory architecture and an integrated HD graphic controller.

With Intel® Q670E PCH, the NEX 818 provides high performance and rich expansions. The SATA 3.0 ports with RAID 0, 1, 5, and 10, helps to provide quick access to data files and data protection. Furthermore, it also features an integrated Intel® AMT 12 for easier maintenance. NEX 818 is a high-performance system and PCIe x16 Gen5 is suitable for IOT, AI, AOI, AI vision, and logistics, etc.

Processor
  • 14th/13th/12th Gen Intel® Core™, LGA 1700 socket, processor max. 125W TDPs, Intel® Q670E PCH
Memory
  • DIMM x 4, DDR5 (4000MHz x 4, up to 128GB)
  • Non-ECC, un-buffered memory, Dual-channel memory architecture
Storage
  • 8 x SATA 3.0 ports, support RAID 0/1/5/10
  • 2 x M.2 2242/80 Key M (PCIe 4 lanes Gen4.0, support RAID 0/1/5/10)
Display
  • 1 x VGA connector (resolution up to 1920 x 1200 @ 60Hz)
  • 1 x HDMI® 2.0 connector (resolution up to 4096 x 2160 @ 60 Hz/30Hz, with digital audio)
  • 1 x DP 1.4 connector (resolution up to 4096 x 2160 @ 24 Hz/3840 x 2160 @ 60 Hz, with digital audio)
  • 1 x LVDS up to 1920 x 1080 @ 60 Hz, dual channel 18/24 bit via pin header
  • 1 x eDP up to 3840 x 2160 @ 30 Hz via pin headerFour independent display: HDMI® 2.0 x 1, DP x 1, VGA x 1, LVDS/eDP x 1
Expansion
  • 1 x PCIe x16 slot (16 lanes, Gen5), (8 lanes when dual use PCIe x16 slots)
  • 1 x PCIe x4 slot (open slot) (2 lanes, Gen3)
  • 1 x PCIe x16 slot (8 lane, Gen5)
  • 1 x PCIe x4 slot (4 lanes, Gen4)
  • 1 x M.2 3042/3052 Key B (PCIe 3.0 x1/USB 3.2 Gen1) + 1 x Micro SIM slot
  • 1 x M.2 2230 Key E (PCIe 3.0 x1/USB 2.0)
Power
  • 1 x 24-pin ATX connector x 1, 8-pin ATX 12V power connector
  • Support both AT and ATX power supply modes
Environment
  • Board-level operation temperature: 0°C to 60°C
  • Storage temperature: -40˚C to 85˚C
  • Relative humidity: 0% to 90% (operating, non-condensing)
Certifications
  • Meet CE/FCC Class A
I/O Ports
  • AudioRealtek ALC897 6-channel high definition audio codec
  • Watch Dog1~255 step by software program
  • DIO: 1 x 8-bit digital I/O interface
  • TPM 2.0 onboard

Rear I/O

  • 1 x VGA, 1 x HDMI® 2.0, 1 x DP1.4
  • 2 x RJ45 (1 x Intel® i210-AT GbE, 1 x Intel® i219-LM GbE)
  • 4 x USB 3.2 Gen2
  • 1 x COM DB-9 COM (supports RS-232/422/485, 5V/12V/RI)
  • Audio Jack x 3: Line-in, Mic-in, Line-out
Physical Characteristics
  • Micro-ATX form factor, 9.6"x9.6" (244mm x 244mm)
Support OS
  • Windows 10 64-bit, Windows 11 64-bit
Hãng NEXCOM
