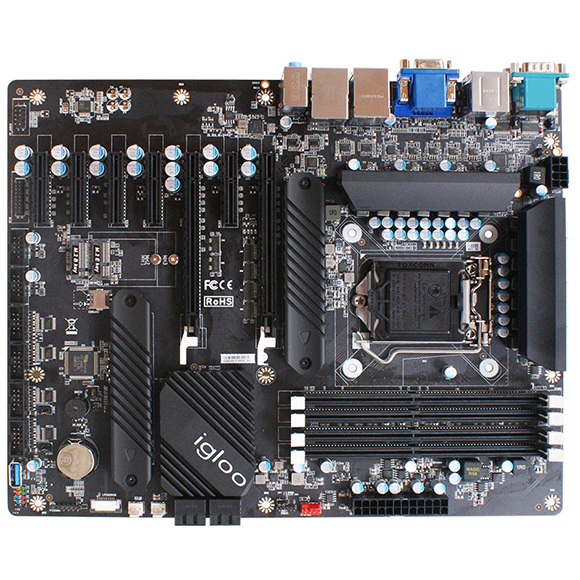

NEX 916

ATX supports 10/11th Gen Intel® Core™ LGA1200 Socket Processor

Tính năng chính

<ul> <li>Intel® LGA1200 socket supports 10/11th Gen Intel® Core™ processor (max 125W)</li> <li>Intel® Comet Lake-S Q470E chipset</li> <li>4 x DDR4 3200/2933MHz up to 128GB</li> <li>1 x Intel® i225-V

Giá sản phẩm: Liên hệ

The NEX 916 is a high performance ATX board with rich expansions. It is equipped with 10/11th Gen Intel® Core™ processors to support a maximum of 125W, along with the Intel® Q470E chipset, and four DDR4 DIMM sockets up to 128GB. Moreover, its SATA 3.0 ports with Raid 0, 1, 5, and 10, help to provide quick access to data files and data protection. This ATX board operates at a temperature range from 0°C to 60°C, which is ideal for embedded applications, IoT, AI, AOI, AI vision, logistics, etc.

Processor	Intel® LGA1200 socket supports 10th/11th Gen Intel® Core™ processor max 125W Intel® Q470E chipset AMI 256M flash ROM
Memory	4 x DDR4 3200/2933 MHz long DIMM up to 128GB
Storage	4 x SATA3.0 (6.0Gb/s, Support Raid 0/1/5/10) 2 x M.2 Key M (2242/2280, support NVMe, M2M1 only 11th CPU)
Expansion	1 x M.2 Key B (3042/3052, USB 3.2+PCIe x1 interface, support 4G/5G module) 1 x M.2 Key E(2230, CNVi + USB 2.0 interface, support Wi-Fi/BT module) 2 x PCIe x16 slots (by CPU) 5 x PCIe x4 slots (PCIe2 by CPU, PCIe4 is PCIe x1 interface)
Power	ATX power - AT: Directly PWR on as power input ready - ATX: Press button to PWR on after power input ready
Graphic controller	Intel® HD Graphics, shared memory 1 x VGA (max resolution: 1920 x 1080@60Hz) 1 x DP1.2 (max resolution: 4096x2304@60Hz) 1 x HDMI 1.4 (max resolution: 4096x2160@30Hz)
Environment	Operating Temperature: 0~60° C Storage Temperature: -20~70° C Humidity: 10%~90% RH@40°C (non-condensing)
Certifications	CE, FCC, RoHS, REACH
I/O Ports	Internal I/O 4 x USB 2.01 x USB 3.2 (Gen1, type A) 4 x RS232 (COM3/4 support 5/12V TTL) 4 x M.2 (2 x Key M, 1 x Key B, 1 x Key E) 2 x PCIe x16 slots (by CPU) 5 x PCIe x4 slots (PCIe 2.0 by CPU, PCIe 4.0 is PCIe x1 interface) 1 x GPIO (16-bit, 5V) 1 x PS/2 1 x SIM card slot 2 x CPU fan (support smart fan) 2 x System fan 1 x Chassis intrusion 1 x SMBUS/I2C 1 x AT mode External I/O 2 x RS232/422/485 (support 5V/12V TTL) 4 x USB 3.2 (Gen 2) 2 x USB 2.0 1 x VGA 1 x HDMI 1 x DP 2 x RJ45Line-in, Line-out, MIC
Support OS	Windows 10, 11, Linux
Hãng	NEXCOM
CPU Support	Intel® 11th Core-i/ Celeron Processor
