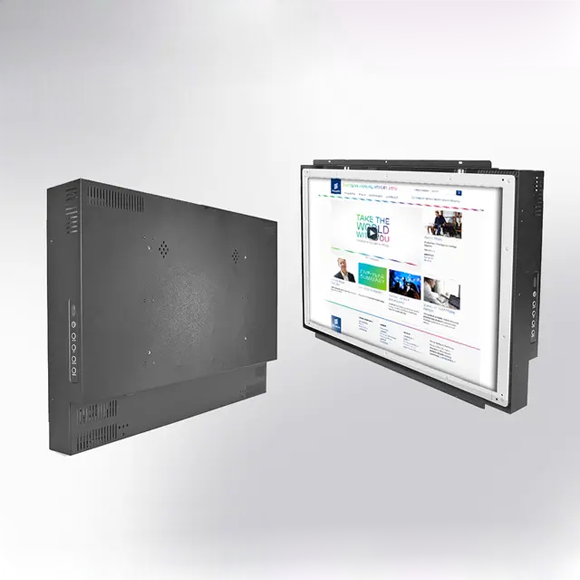

Open Frame Monitor
- 4:3 12.1” SVGA fanless LED panel computer
- Intel Atom® E3826, dual core, low power consumption CPU
- PS2 KB/MS/Line-out/dual GbE/3x USB
- 2 x RS232/422/485/2nd display-VGA/2 x mini-PCIe sockets/1 x CFast
- Remote power switch
- DDR3L 4GB/2.5” HDD bracket
- Support JMobile HMI and CODESYS SoftLogic (optional)
- Mounting support: panel/wall stand/VESA 100mm x 100mm
- Wide range power input 12~30VDC
- 4:3 15" XGA Fanless Panel Computer
- Intel Atom® E3826/ Celeron™ J1900, Quad core, low power consumption CPU
- PS2 KB/ MS/ Line-out/ Dual GbE/ 3x USB
- 2 x RS232/ 422/ 485/ 2nd display-VGA/ 2 x Mini-PCIe sockets/ 1 x CFast
- Remote power switch
- DDR3L 4GB/ 2.5" HDD bracket
- Support JMobile HMI and CODESYS SoftLogic (optional)
- Mounting support: Panel/ Wall/ Stand/ VESA 100mm x 100mm
- Wide range power input 12~30VDC
- 4:3 15" XGA Fanless Panel Computer
- Intel® Celeron® J1900, Quad core, low power consumption CPU
- 1000 nits High brightness
- PS2 KB/MS/Line-out/Dual GbE/3x USB
- 2 x RS232/422/485/2nd display-VGA/2 x Mini-PCIe sockets/1 x CFast
- Remote power switch
- DDR3L 4GB/2.5" HDD bracket
- Support JMobile HMI and CODESYS SoftLogic (optional)
- Mounting support: Panel/Wall/Stand/VESA 100mm x 100mm
- Wide range power input 12~30VDC
- 4:3 17" SXGA fanless LED panel computer
- Intel Atom® E3826, dual core, low power consumption CPU
- PS2 KB/MS/Line-out/dual GbE/3 x USB
- 2 x RS232/422/485/2nd display-VGA/2 x mini-PCIe sockets/1 x CFast
- Remote power switch
- DDR3L 4GB/2.5” HDD bracket
- Support JMobile HMI and CODESYS SoftLogic (optional)
- Mounting support: panel/wall/stand/VESA 100mm x 100mm
- Wide range power input 12~30VDC
- 4:3 19" SXGA Fanless Panel Computer
- Intel® Celeron™ J1900, Quad core, low power consumption CPU
- 1000 nits High brightness
- PS2 KB/MS/Line-out/Dual GbE/3x USB
- 2 x RS232/422/485/2nd display-VGA/2 x Mini-PCIe sockets/1 x CFast
- Remote power switch
- DDR3L 4GB/2.5" HDD bracket
- Support JMobile HMI and CODESYS SoftLogic (optional)
- Mounting support: Panel/Wall/Stand/VESA 100mm x 100mm
- Wide range power input 12~30VDC
- 4:3 19" SXGA Fanless Panel Computer
- Intel Atom® E3826/ Celeron™ J1900, low power consumption CPU
- PS2 KB/ MS/ Line-out/ Dual GbE/ 3x USB
- 2 x RS232/ 422/ 485/ 2nd display-VGA/ 2 x Mini-PCIe sockets/ 1 x CFast
- Remote power switch
- DDR3L 4GB/ 2.5" HDD bracket
- Support JMobile HMI and CODESYS SoftLogic (optional)
- Mounting support: Panel/Wall/Stand/VESA 100mm x 100mm
- Wide range power input 12~30VDC
- 5.7", 640 x 480
- VGA and HDMI input
- Open frame
- VESA mount
- High brightness
- 8.4", 800 x 600
- VGA and HDMI input
- Open frame
- VESA mount
- High brightness
-
Thiết kế cơ khí dạng mô-đun mang lại cấu hình sản phẩm linh hoạt và dễ dàng bảo trì.
-
Tùy chọn tích hợp màn hình cảm ứng cho các ứng dụng tương tác.
-
Có sẵn cảm biến tự động điều chỉnh độ sáng, phù hợp sử dụng cả ban ngày và ban đêm.
-
Cổng kết nối VGA, tùy chọn thêm AV, SV, AV-Looping.
-
Thiết kế tùy chỉnh dành cho khách hàng OEM.
-
Tùy chọn loại đầu nối: đầu nối kim loại M12, MIL-38999, MIL-26482 series
- Modularize mechanical design provides flexible product configuration and easy maintenance
- Optional build-in touch screen for interactive application
- Available with auto-brightness sensor offers application in day and night
- VGA connector with optional AV,SV,AV-Looping
- Complete custom design/solution for OEM customers
