NViS 14162

Desktop SoC NVR with Intel® Elkhart Lake Platform Built-in 16-Port PoE

Tính năng chính

  • Support Intel 8th Gen Intel Atom® processor X series and Intel® Celeron® J series
  • Max. 32GB DDR4 supported
  • Dual display of HDMI and DVI-I
  • 2 x 3.5” SATA HDD support RAID 0,1
  • 1 x 2.5” SSD/HDD, 1 x M.2 2242 SATA SSD
  • 1 x 10/100/1000 Intel® Ethernet
  • 1 x 2.5G Intel® Ethernet
  • 16 x 10/100 PoE (240W max PSE)
  • Support TPM 2.0 onboard
  • Support eMMC onboard (option)

Giá sản phẩm: Liên hệ

Lượt xem 16

The NVR NViS 14162 is equipped with Intel 8th Gen Atom® processor X series and Celeron® J Series , up to 4 Core and 3.0 GHz burst frequency processor, which supports up to 32GB DDR4 3200MHz memory, along with integrated graphics controller, 11th Gen Intel® UHD Graphic support 32EU and 750MHz graphics burst frequency for large display application. Moreover, NViS 14162 provides high quality digital recording, real-time display and supports a wide range of megapixel IP cameras. In addition, NViS 14162 supports a wide variety of display I/O configurations, including HDMI, DVI-I, one Intel® 1GbE port, one Intel® 2.5GbE port, four USB 2.0, two USB 3.1 Gen1, audio interfaces, 16 channels 10/100 PoE at 16 ports support 802.3af and at 8 ports support 802.3at.

Processor
  • Intel 8th Gen Intel® Celeron® J6412, Quad Core, 2.0GHz base frequency, 2.6GHz burst frequency (can compatible other Intel 8th generation Intel Atom® (Elkhart Lake) processor X series and Intel® Celeron® J series)
Memory
  • Dual channel DDR4 3200MHz SDRAM, max. 32GB
Storage
  • 2 x 3.5” SATA HDD support RAID 0,1
  • 1 x 2.5” SATA HDD or SSD
  • 1 x M.2 2242 Key B SATAIII
  • 1 x eMMC 32GB (option)

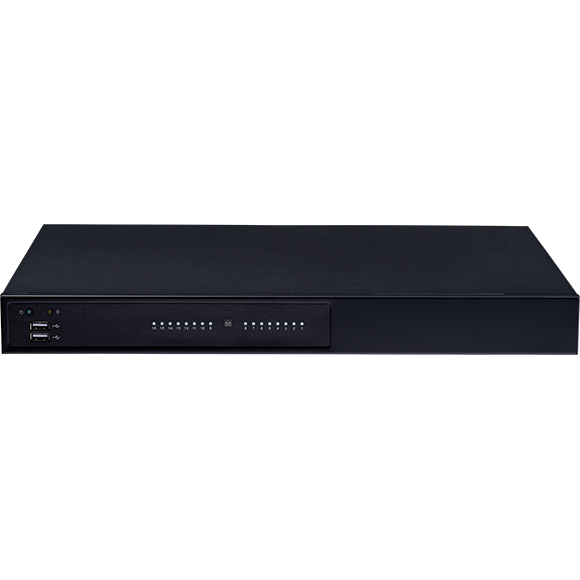

Front I/O Interface
  • 2 x USB 2.0 ports
  • Power & HDD status LED
  • PoE 16 ports status LED

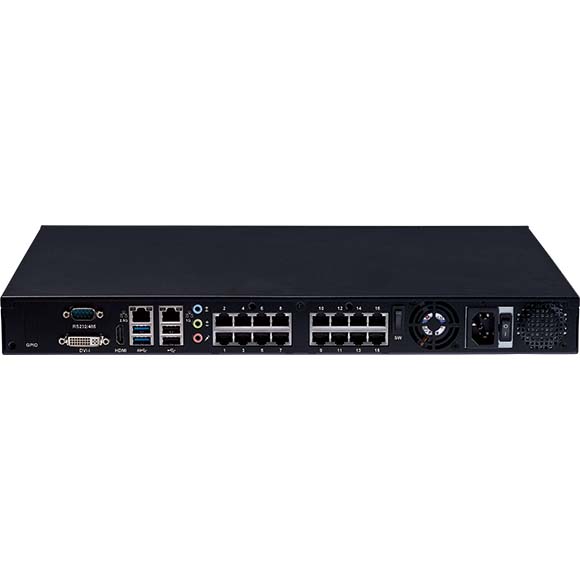

Rear I/O Interface
  • 2 x RJ45 (1 x 1GbE+1 x 2.5GbE)
  • 2 x USB 3.1 Gen1 ports
  • 2 x USB 2.0 ports
  • 1 x HDMI 2.0b (supports max. resolution 4096 x 2160 @ 60Hz)
  • 1 x DVI-I
  • 1 x UART ports (RS-232/485 setting from BIOS)
  • 1 x Line-in, 1 x Line-out, 1 x Mic-in
  • Power on/off switch
  • 16 x Ethernet PoE port

- 802.3af/at compliance with total 240W max (PSE)
- 802.3af support 16 ports @ 15W
- 802.3at support 8 ports @ 30W

  • 1 x 4DI/2DO (relay type) terminal block or 4DI/4DO GPIO DB15 port (option)
Power
  • AC 100V~240V 410W power supply
Environment
  • Operating temperature: Ambient with air flow: 0°C ~ 40°C
  • Storage temperature: -20°C ~ 70°C
  • Relative humidity: 10% ~ 90% (non-condensing)
Certifications
  • CE approval
  • FCC Class A
  • UL 62368 compliance
Physical Characteristics
  • Dimensions: 430mm (W) x 44.5mm (H) x 348mm (D)
Ordering Information
  • NViS 14162 (P/N: 10C00141600X0)

NViS14162 desktop SoC NVR with Intel® Elkhart Lake platform built-in 16-port PoE
Hãng NEXCOM

DATASHEETS
NViS14162.pdf
[ NViS14162.pdf , 0.68MB , Jul.04.2024 ]
