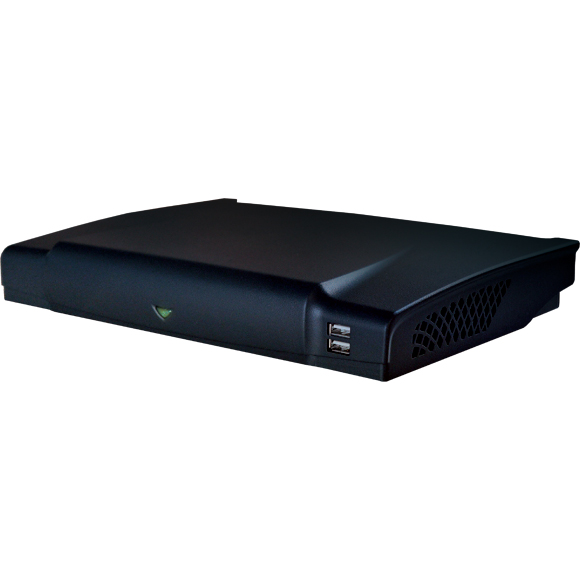

NPB 3550

High Value Fanless Point-of-Sales Box System

Tính năng chính

  • Fanless POS box system
  • Slim and compact enclosure design
  • I ntel® Atom™ processor D2550, 1.86GHz
  • Support DDR3 1066 SO-DIMM memory
  • 2.5” removable SATA HDD
  • Powered COM(4), USB(6), printer port (1), VGA(1), DVI(1), GbE LAN(1), cash drawer(1), PS/2(1)
  • Optional wall-mount kit for compact space accommodation

Giá sản phẩm: Liên hệ

Lượt xem 5

The NEXCOM NPB 3550 is a high-value, rugged die-cast aluminum POS box PC designed for flexibility and scalability. The rich I/O interface makes the POS system easily work with various peripherals. It is perfect for retail, Kiosk, and restaurant applications.

Unique Sleek and Noise Free Fanless Design driven by an Intel® Atom™ Cedarview D2550 Dual Core Processor makes it a cost-effective and high-value terminal. Additional features like an easy-open Latch design for tool-free access and removable HDD for cold swapping make the repair easy, lowering terminal downtime to almost zero thus saving on maintenance costs. The hardware platform can be easily upgraded by swapping out the motherboard but not swapping out I/O board.

Processor
  • CPU: Intel® Atom™ processor 2550, 1.86 GHz
  • BIOS: AMI BIOS
  • System chipset: Intel® NM10
  • System Graphic: Integrated Graphics controller, Intel® HD Graphics 3600
  • Hard disk drive: One 2.5” 320GB SATA HDD, removable type, optional one 2.5” SATA HDD 320GB 5,400rpm for 2nd HDD (by SATA backplane)
Memory
  • System memory: 1x 204-pin DDR3 SO-DIMM socket, 2GB DDR3 1066(default), optional support up to 4GB DDR3 1066, non-ECC and unbuffered
Front I/O Interface
  • USB: 2 x USB 2.0 port (USB 6~7)
Rear I/O Interface
  • USB: 4 x USB 2.0 port (USB 1~4)
  • COM: 4x DB-9 powered RS-232 port, adjust RI/ 5V/ 12V by BIOS, optional: 1 xDB-9 Powered RS-232, 5V by BIOS Setting
  • Powered USB port: 1 x +12VDC Powered USB2.0 (USB5)
  • Ethernet: 1x RJ-45, 10/100/1000 Mbps, optional 1 x RJ-45 for 2nd LAN
  • VGA: 1x DB-15 VGA port, optional: 1 x DB-15 2nd VGA share D-Shape hole with COM5
  • DVI: 1x DVI-D port
  • Cash drawer: 1x RJ-11 port, support two cash drawers (24V, Max 1.1A)
  • PS/2: 1x KB/MS Combo PS/2 port
  • Parallel: 1x DB-25 printer port
  • Audio: 1 x Headset Jack (Speak-out & MIC)
  • DC-IN: 1x +12VDC input, Mini-DIN 4-pin lock type
  • Wireless Antenna: Optional Main/ Aux. wireless Antenna
Expansion
  • Expansion: 1x Full-size Mini-card socket for Mini-PCIe and USB interface
  • 1x half-size Mini-card socket for Mini-PCIe and USB interface
  • 1x SIM Card Socket support for 3G USB Mini-Card, Select by BIOS setting.
Environment
  • Operating temperature: 0°C to 40°C
  • Storage temperature: -20°C to 60°C
Certifications
  • CE approval
  • FCC Class A
  • LVD
Physical Characteristics
  • Operating humidity: 20%~80% relative humidity, non-condensing
  • Dimension: 297 (W)* 228 (D)* 50 (H) mm
  • Weight: 4.5kg(8.81lbs)
  • Color: black
  • Mounting: desktop type, optional wall-mount Kit
  • Power input: +12VDC
  • Power adapter: AC to DC power brick (+12VDC/ 8.33A, 100W)
Audio
  • High Definition audio codec: Realtek ALC886-GR
  • External audio: 1x Headset Jack (Speak-out & MIC)
  • Ethernet LAN chip: LAN1, Realtek RTL8111E Gigabit LAN,
  • optional: LAN 2, Intel® WG82574L
  • Ethernet interface: 10/100/1000 Based-TX Ethernet compatible
