neXService-2400

23.8” Self Service Kiosk with Multi-Touch Screen Powered by Intel® Apollo Lake J3455 Processor

Tính năng chính

  • Featured with rich devices to fulfill different demands
  • Fan-less design to meet 24/7 service requirements
  • Ergonomic design for self-service
  • Easy serviceability and upgradability
  • Multiple configurations available
  • Payment devices holder (by request)
  • Enhance customers’ in-store experience
  • Lower total cost of ownership (TCO)

Giá sản phẩm: Liên hệ

Lượt xem 6

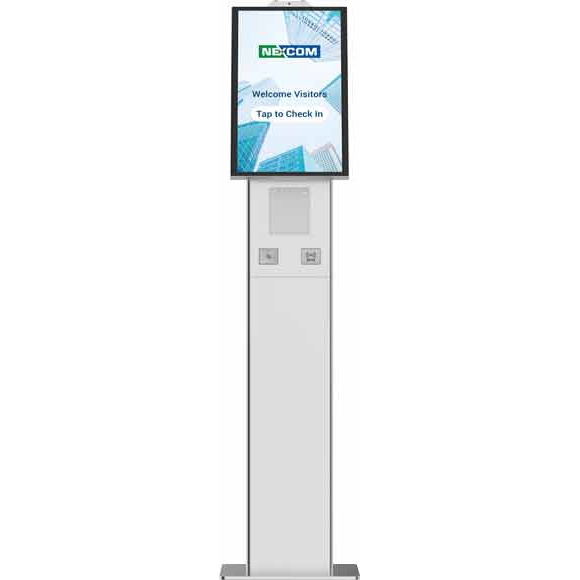

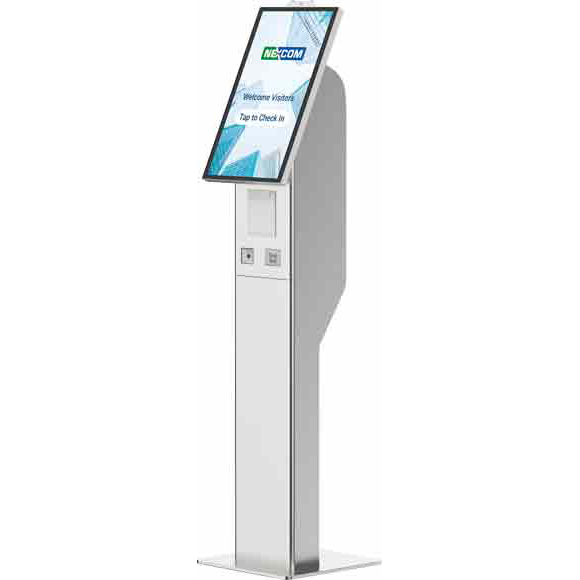

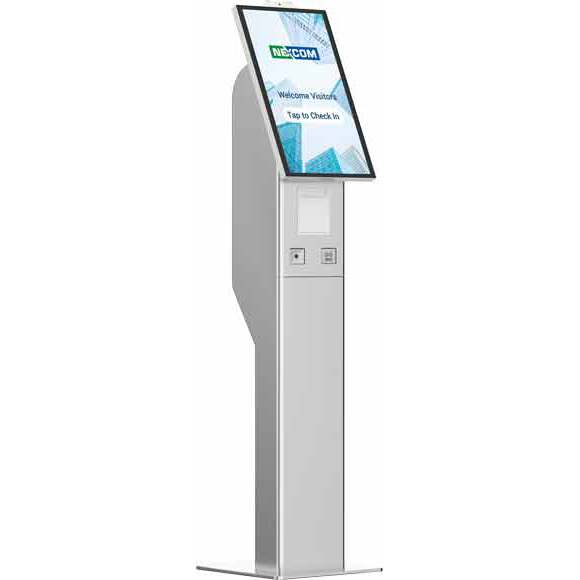

The 23.8“ kiosk nexService-2400 incorporating an industrial motherboard is intended for versatile self-service applications. nexService-2400 has a touchscreen LED backlight LCD panel with 1080 x 1920(FHD) resolution and 315 cd/m2 brightness. The front panel which adopts a flush design and complies with IP65 standards makes it the perfect fit for self-service applications. nexService-2400 powered by Intel® Celeron® processor and support DDR3L up to 8GB. nexService-2400 has a stylish design and weight optimization. nexService-2400 supports multiple peripherals such as thermal printers, 1D/2D barcode scanners, cameras, and  NFC card readers based on different applications. nexService-2400 can be applied in different situations. For example: self-ordering, AI checkout, queuing, self-check-in system.

Processor
  • CPU: on-board Intel® Celeron® processor J3455, 1.50GHz, 2M cache
  • Graphic: Intel® HD Graphics
Memory
  • Pre-installed 4GB DDR3L 1866 MHz, non-ECC and un-buffered memory
Storage
  • Pre-installed 64GB M.2 2242 Key M SSD
Display

Panel

  • LCD size: 23.8”, 9:16
  • Resolution: FHD 1080 x 1920
  • Luminance: 315 cd/m2
  • Contrast ratio: 1000
  • LCD color: 16.7M
  • Viewing angle: 178 (H), 178 (V)
  • Touch Screen10 points P-Cap (Projected Capacitive Touch)
  • Optical bonding glass surface treatment: AS Anti-Smudge Coating (Anti-fingerprint Coating)
Expansion
  • 1 x mini-PCIe full-size connector with SIM slot (full-size) onboard,support Wi-Fi/LTE module
Power
  • Power switch: 110~240V AC power inlet
  • 1 x RJ45 with LEDs for Gigabit LAN
  • 2 x USB 2.0
Environment

Temperature
- Operating temperature: 0°C~50°C
- Storage temperature: -20°C~60°C

Operating humidity: 10%~90% relative humidity, non-condensing limits to be at 90%

Physical Characteristics
  • System: 338mm x 1486mm x 400mm (W x H x D)
  • System: 30 kg
  • Package weight: 35 kg
Support OS
  • Win10 64-bit
  • Linux 4.1
Peripherals

Thermal printer
- 80mm standalone thermal printer with cutter 203 dpi and 180 mm/s supported (58mm: by request)

1D/2D Barcode Scanner
- Fixed mount barcode scanner, 640 x 480 CMOS, optimized to read barcode from a mobile phone screen

Camera (optional)

RFID/MSR card reader kits (option by request)

Hãng NEXCOM
CPU Support Intel® Celeron® processor J3455
Operating System Linux, Windows 10 64-bit

DATASHEETS
neXService-2400.pdf
[ neXService-2400.pdf , 0.3MB , Jan.08.2025 ]
