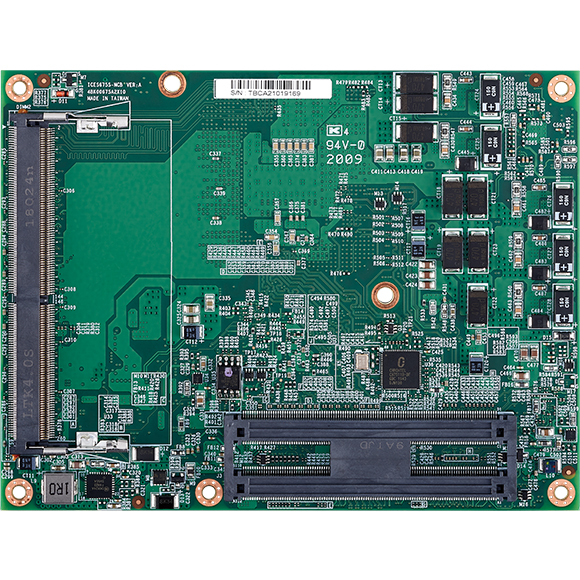

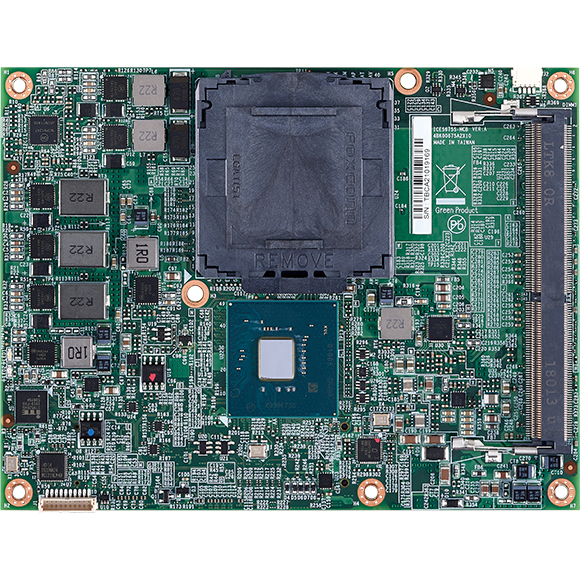

The ICES 675S series is a COM express type 6-pinouts basic module which featuring Intel® C240 series PCH chipset supports Intel® 8/9th Generation Intel® Core™ processors, socket 1151, DDR4 with ECC or non-ECC SO-DIMM 2666MHZ up to 32GB. The ICES 675S-NCB integrated Intel® HD graphics engines support or expands via PCI express graphic 1 x16 lanes and support three DDI (Digital Display Interface) to follow the standard of PICMG COM 2.0 specification. It allows type 6-pinout carrier board to implement DDI and legacy VGA interface.
The high performance ICES 675 COM express basic module supports 1 x GBE LAN, 4 x USB 3.1 GEN1, 8 x USB 2.0, 4 x SATA 3.0, 2 x UART (TX/RX), HD audio, 8 bit DIO, TPM (optional) ICEB 8060 as well as customized solution for your embedded projects.
* Thông tin đặt hàng
Barebone
ICES 675S (P/N: 10K00067508X0)
COM express type 6, basic module, 8/9th Generation Intel® Core™ LGA1151 processor,C246 PCH with 6 core support, support dual channel DDR4 with ECC and non-ECC SO-DIMM 2666MHZ up to 32 GB, support 1 PCIe x16/8 PCIe x1/4 x USB 3.1/8 x USB 2.0/4 SATA 3.0 and GBE, LVDS (eDP optional)/VGA (DDI3 optional)/DDI 1/DDI 2
Optional Accessories
CPU Cooler (P/N: 5050200161X00)
TPM 2.0 module kit (P/N: 79E00TPM01X00)
Heat spreader (P/N: 5050301052X00)
