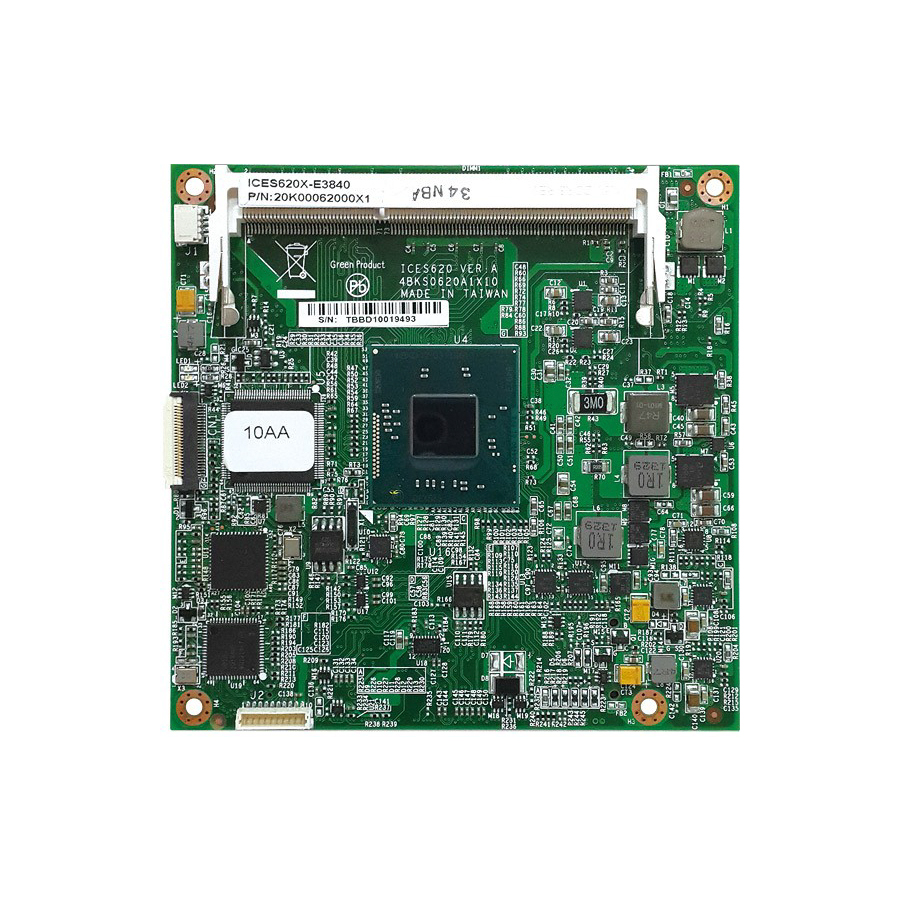

• CPU Support: Intel® Atom™ E3800 Quad core processor up to 1.91GHz
• Main Memory: Dual DDR3L/SO-DIMMs whthout ECC support 1066/1333MHz memory up to 8GB
• BIOS: AMI System BIOS
• Plug and play support: Advanced power management and advanced configuration & power interface support
• Display:

- Intel® HD graphics with DX9 support

- Two DPs interfaces down to the carried board

- Standard VGA interface

• COM Express Connector

- AB:

VGA/HDA/2 x SATA/GbE/4 x PCIex1 (without Gbe)/7 x USB2.0 LPC bus/SDIO (without GPIO)/GPIO/SMBus (I2C)/SPI BIOS

- CD:
1 x USB3.0/2 x DP (HDMI)

• Power Requirements:

- +12V, +5VSB, +3.3V RTC power

- Support both AT and ATX power supply mode

- One 3 pins 90 degree edge-connector for DC +12V fan

• Dimensions: 95mm (W) x 95mm (L)
• Environment:

- Board level operating temperatures: -40°C to 85°C.

- Storage temperatures: -20°C to 80°C

- Relative humidity:

10% to 90% (operating, non-condensing)
5% to 95% (non-operating, non-condensing)

• Certifications: Meet CE/FCC Class B
