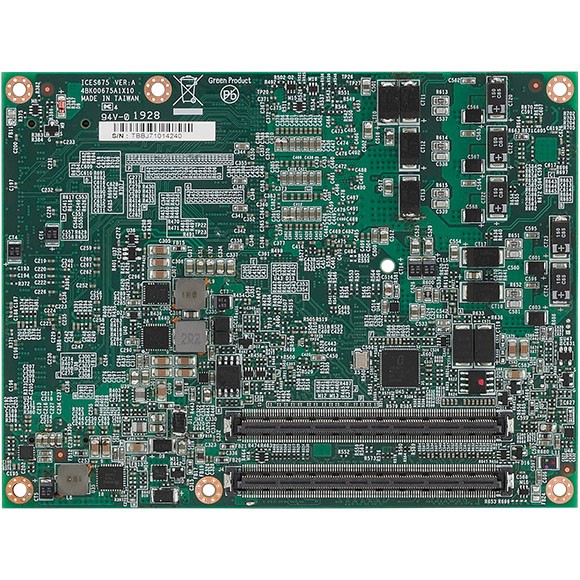

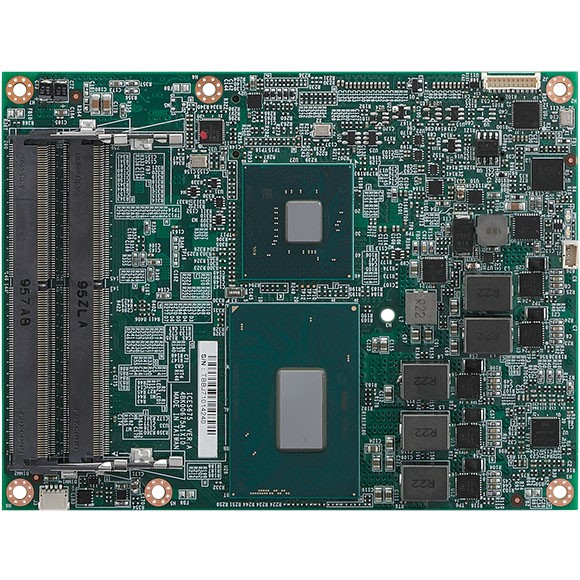

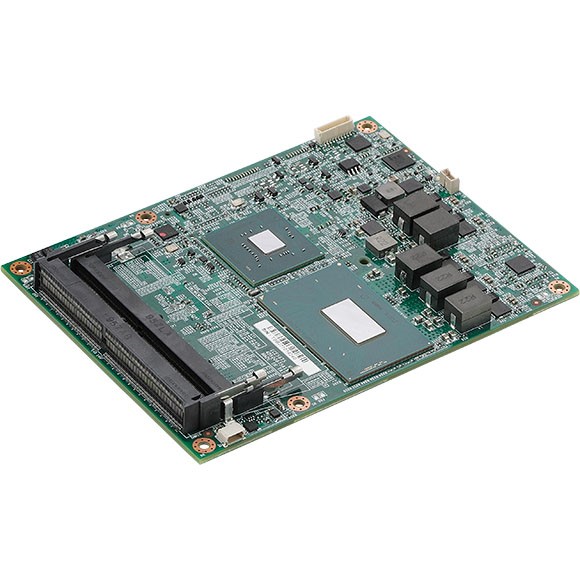

The ICES 675 is a COM express type 6-pinouts basic module which featuring Intel® C240 series PCH chipset supports Intel® 8th and Intel® Xeon® and Intel® Core™ processors 2 channel DDR4 with ECC or non-ECC SO-DIMM 2666MHz up to 32GB. The ICES 675 integrated Intel® HD graphics engines support or expands via PCI express graphic 1 x16 lanes and support three DDI (Digital Display Interface) to follow the standard of PICMG COM2.0 specification. It allows type 6-pinout carrier board to implement DDI and legacy VGA interface.
With the 125 x 95mm type 6 COM express modules, the boards are offered with numerous processor variants: Intel® Xeon® E-2176M processor (support ECC), Intel® Core™ i7-8850H processor (non-ECC) and Intel® Core™ i5-8400H processor (non-ECC).
The high performance ICES 675 COM express basic module supports 1 x GbE LAN, 4 x USB 3.1 GEN1, 8 x USB 2.0, 4 x SATA 3.0, 2 x UART (TX/RX), HD audio, 8-bit DIO, TPM (optional) ICEB 8060 as well as customized solution for your embedded projects.
* Thông tin đặt hàng
Barebone
ICES 675 (P/N: 10K00067500X0)
On-board Intel® 8th Intel® Xeon® E-2176M processorr, 2 x DDR4 SO-DIMM (support ECC), support multiple display from VGA/LVDSD/DDI1/2, 4 x SATA 3.0, 1 x GbE LAN, 2 x COM, 4 x USB 3.0, 8 x USB 2.0, HD audio, 8-bit GPIO
ICES 675-8850H (P/N: 10K00067502X0)
On-board Intel® 8th Intel® Core™ i7-8850H processor, 2 x DDR4 SO-DIMM (non-ECC), support multiple display from VGA/LVDSD/DDI1/2, 4 x SATAIII, 1 x GbE LAN, 2 x COM, 4 x USB 3.0, 8 x USB 2.0, HD audio, 8-bit GPIO
ICES 675-8400H (P/N: 10K00067501X0)
On-board Intel® 8th Intel® Core™ i5-8400H processor, 2 x DDR4 SO-DIMM (non-ECC), support multiple display from VGA/LVDSD/DDI1/2, 4 x SATAIII, 1 x GbE LAN, 2 x COM, 4 x USB 3.0, 8 x USB 2.0, HD audio, 8-bit GPIO
Optional Accessories
CPU cooler (P/N:TBD)
Heat spreader (P/N:TBD)
TPM 2.0 module kit (P/N: 5050300994X00)
