• 2 x 2.5” SATA 3.0 external SSD
• 2 x mSATA

• 24 x LED indicators (including 4 x programmable LED)
• 1 x HDMI 1.4b from Intel CPU (max resolution: 4096 x 2160 at 30Hz)
• 1 x VGA (max resolution: 1920 x 1200@60Hz)
• 4 x HDMI from MXM module
• 1 x ultraONE+ for 10M video + audio output + 24VDC output
• 2 x USB 3.2 (Gen2) type A (5V/1A)
• 2 x Externally accessible SIM sockets, 1 x internal SIM socket
• 2 x 2.5” removable SSD tray
• 1 x Reset button
• 1 x Power button
• 5 x SMA antenna

• 8 x PoE 802.3af/at (max. 60W)
• 1 x LAN, I210-IT 10/100/1000 Mbps
• 1 x 5-pin terminal block for 9V~36VDC
• 1 x Mic-in, 1 x Line-out
• 4 x 2 connector for 12VDC/2A output, power button, 2 x MDI
• 2 x DB9 for full RS232
• 1 x DB9 for full RS232/422/485 (RI, 5V/0.5A, 12V/0.5A)
• 1 x DB15

- 1 x Isolated CANBus 2.0B
- 1 x GPS DR
- 4 x DI and 4 x DO

• 4 x SMA antenna
• 4 x USB 3.2 (Gen2) type A (5V/1A)

• 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0, SATA 3.0)
• 1 x Full size mini-PCIe socket (USB 2.0), optional M.2 key B (3042)
• 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0, SATA 3.0 (option))
• 1 x M.2 key B 3042, (USB 2.0, USB 3.2 (Gen1))

• Selectable boot-up & shut-down voltage for low power protection by software
• Setting 8-level power on/off delay time by software
• Support S3/S4 suspend mode

• Operating temperatures: -30°C~60°C (w/ industrail SSD) with air flow
• Storage temperatures: -40°C~80°C
• Relative humidity: 90% (non-condensing)Vibration (random)

- 2g@5~500 Hz (in operation, SSD)

Vibration (SSD)
- Operating: MIL-STD-810G, Method 514.6, Category 4, commoncarrier US highway truck vibration exposure
- Storage: MIL-STD-810G, Method 514.6, Category 24, minimumintegrity test

Shock (SSD)
- Operating: MIL-STD-810G, Method 516.6, Procedure I, functionalshock=40g
- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crashhazard shock test=75g

• CE approval, FCC Class A, E13 mark, UKCA

• Dimensions:

1. ATC 8010: 260.0 x 256.0 x 90.1 (W x D x H) (mm)
2. ATC 8010-F: 260.0 x 256.0 x 99.0 (W x D x H) (mm)

• Weight: 6 kg

• Windows 10/11/Linux

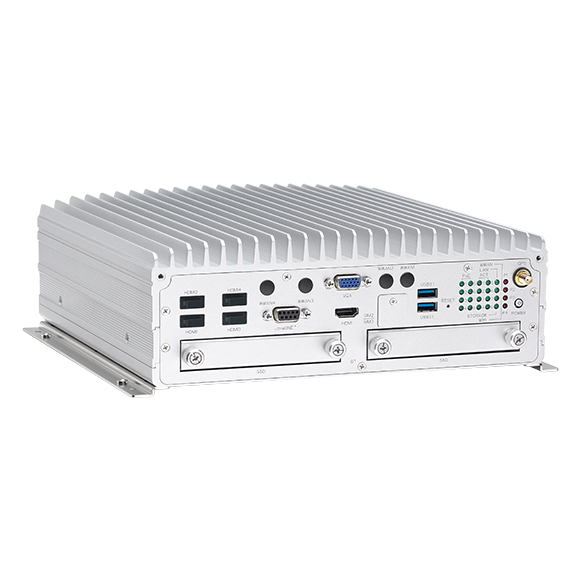

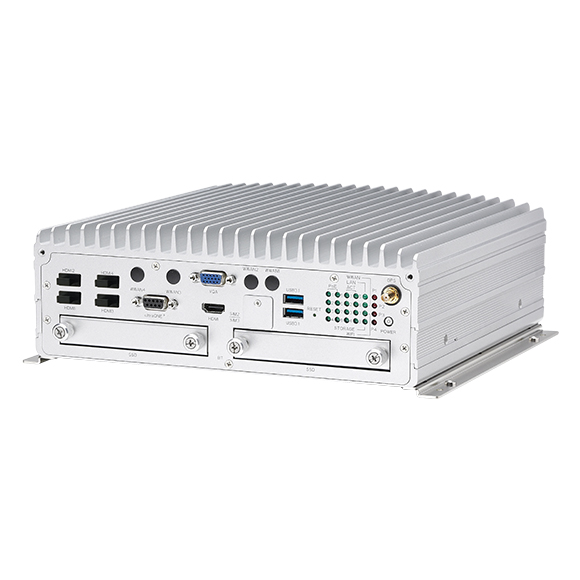

• ATC 8010 (P/N: 10AT0801008X0)

Intel® Core™ 8/9th Gen CPU, 8 x PoE 802.3af/at, 3 x mini-PCIe, 1 x M.2, 3 x SIM, w/o MXM module kit

• ATC 8010-F (P/N: 10AT0801010X0)

Intel® Core™ 8/9th Gen CPU, 8 x PoE 802.3af/at, 3 x mini-PCIe, 1 x M.2, 3 x SIM, fan kit, w/o MXM module kit

T1000 MXM kit (P/N: 88AT0801000X0)
NVDIA RTX T1000 MXM module for ATC8010

A2000 MXM kit (P/N: 88AT0801002X0)
NVDIA RTX A2000 MXM module for ATC8010

A4500 MXM kit (P/N: 88AT0801003X0)
NVDIA RTX A4500 MXM module for ATC8010-F
