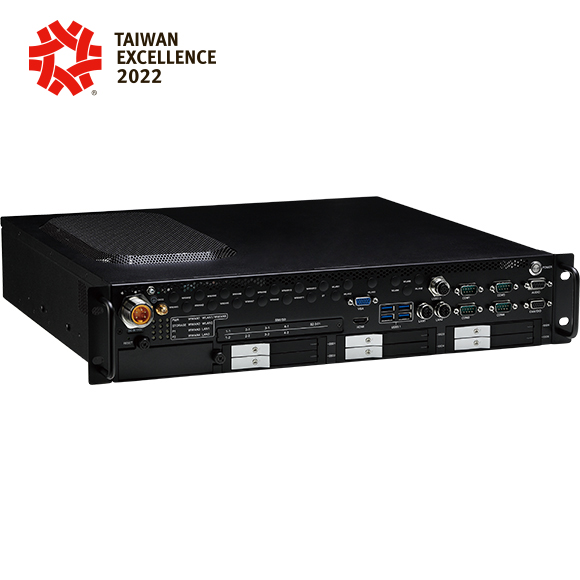

Processor |
- Support 8th/9th generation Intel® Core™ i7/i5/i3 / Xeon® LGA1151 socket
- Intel® Core™ i7-9700TE/i7-8700T, TDP 35W
- Intel® Core™ i5-9500TE/i5-8500T, TDP 35W
- Intel® Core™ i3-9100TE/i3-8100T, TDP 35W
- Intel® Xeon® E-2278GEL, TDP 35W
- Intel® Celeron® G4900T, TDP 35W
|
|
Memory |
- 4 x 260-pin 2400MHz DDR4 SO-DMIM sockets up to 32GB/channel (128GB for four channels)
- ECC memory to support: i3-9100TE/i3-8100T, E-2278GEL, G4900T
|
|
Storage |
- 6 x 2.5” SATA external SSD (compatible with 9.5mm drive)
- 1 x mSATA
- 1 x M.2 2280/2242/2260 Key M socket for SATA 3.0 or PCle 3.0 x4 NVMe 1.3
- 1 x Removable SD 3.0
|
|

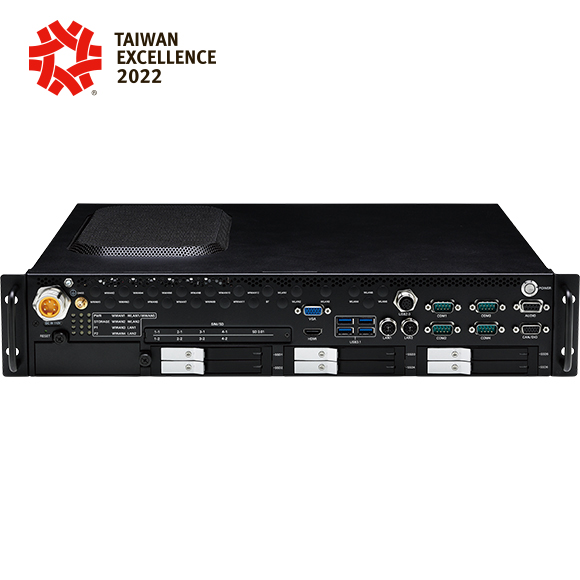

Front I/O Interface |
- 12 x LED indicators (including 2 x programmable LED)
- 1 x HDMI 1.4b
- 1 x VGA
- 1 x M12 A-coded connector for 2 x USB2.0
- 3 x USB 3.1 Gen 2 type A (5V/1A)
- 1 x USB 3.1 Gen 1 type A (5V/1A)
- 8 x Externally accessible SIM card sockets with cover
- 6 x 2.5” removable SSD tray (with locker)
- 1 x SD with cover
- 1 x Reset button
- 1 x Power button
- 20 x SMA antenna
- 2 x LAN M12 X-coded, Intel® I210/I219 (support iAMT) 10/100/1000 Mbps
- 1 x DB9 (AUDIO) for 1 x Mic-in, 2 x Line-out
- 2 x DB9 (COM1/COM2) for full RS232 (isolation)
- 2 x DB9 (COM3/COM4) for full RS232/422/485 (isolation)
- 1 x DB15 (CAN/DIO)
- 1 x Isolated CANBus 2.0B
- 4 x DI and 4 x DO (isolation)
- Power in for DIO isolation, 9~48VDC
- 1 x Waterproof DC input connector with ignition
- 24VDC input with 2.5KVDC isolation
- 110VDC input with 2.5KVDC isolation
|
|
Rear I/O Interface |

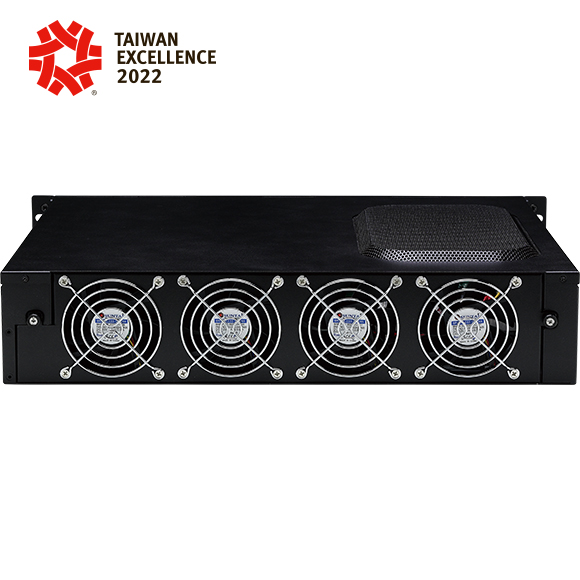

- 4 x Smart fan (swappable) for system cooling
|
|
Chipset |
- Intel® C246 platform controller hub
|
|
Discrete Graphics Card (optional) |
- NVIDIA® GEFORCE® GTX 1650 SUPER up to 100W, 1280 CUDA® cores, 4GB GDDR6
|
|
Expansion |
- 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0)
- 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0), BOM optional full size mini-PCIe socket (USB 2.0) for LTE module with 2 x external SIM
- 1 x Full size mini-PCIe socket (
|
|
GNSS and Onboard Sensor |
- 1 x Default U-blox NEO-M8N GNSS module for GPS/Glonass/QZSS/Galileo/Beidou
- G Sensor (3-axis, 10-bit resolution)
|
|
LAN / PoE |
- 2-Port LAN M12 X-coded, 10/100/1000 Mbps Intel® I210/I219 (support iAMT) GbE
- 2-Port LAN 10GbE SFP+ (optional)
- 4-Port LAN M12 X-coded, 10/100/1000 Mbps, PoE 802.3af/at, max. 60W (optional)
|
|
Security |
- TPM 2.0: Infineon SLB9665TT2.0FW5.62
|
|
I/O Interface (Front) |
- 12 x LED indicators (including 2 x programmable LED)
- 1 x HDMI 1.4b
- 1 x VGA
- 1 x M12 A-coded connector for 2 x USB2.0
- 3 x USB 3.1 Gen 2 type A (5V/1A)
- 1 x USB 3.1 Gen 1 type A (5V/1A)
|
|
Power |
- Power input 24VDC/110VDC w/ isolation
- Selectable boot-up & shut-down voltage for low power protection by software
- Setting 8-level power on/off delay time by software
- Support S3/S4 suspend mode
- 0~255 seconds WDT support, setup by software
- SDK (Windows/Linux) including utility and sample code
|
|
Graphic controller |
- Chipset Intel® UHD graphics 630
|
|
Environment |
- Operating temperatures: EN 50155, class OT4 (-40~70°C), 85°C for 10 minutes (w/ 35W TDP CPU, 100W TDP GPU, industrial SSD) with air flow
- Storage temperatures: -40°C~80°C
- Relative humidity: 90% (non-condensing)
- Vibration (random)
- 2g@5~500 Hz (in operation, SSD)
- Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
- Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test
- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g
- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
|
|
Certifications |
- CE
- FCC Class A
- EN 50155: 2017
- Ambient temperature EN 50155, Class OT4 (-40~70°C), 85°C for 10 minutes
- Interruptions of voltage supply class S1
- Supply change over class C1, C2
- EMC EN 50121-1: 2017, EN 50121-3-2: 2016+A1: 2019
- Environment EN 60068-2-1, EN 60068-2-2, EN 60068-2-30
- Shock and vibration IEC 61373 Class B
- Protective coating class PC1 (PC2, by request)
- EN 45545-2: 2013+A1:2015 (PCB)
|
|
Physical Characteristics |
- Dimensions: 483 x 400 x 95 (W x D x H) (mm)
*Please reserve total 3U height for aROK 5510 in rack
|
|
Video Output |
- Chipset Intel® UHD graphics 630
- 1 x HDMI 1.4b up to 4096 x 2160 @ 30Hz
- 1 x VGA up to 1920 x 1200 @ 60Hz
|
|
Support OS |
|
|
Ordering Information |
- aROK 5510 (P/N: 10A20551003X0)
Intel® Coffee Lake S/Refresh 8th/9th Gen Core™/Xeon® LGA1151 socket-type CPU, 4 x DDR4 SO-DMIM, DC input 24 or 110 VDC w/ isolation, 2 x LAN, 3 x mini-PCIe, 3 x M.2, 8 x SIM, 1 x VGA, 1 x HDMI, 2 x RS232, 2 x RS232/422/485, 4 x DI, 4 x DO, 4 x USB 3.1, 2 x USB 2.0
|
