AIEdge-X®500

Industrial AI Computer Powered by 8th/9th Generation Intel® Core™ Processor, with Large Storage and Optional NVIDIA Graphics Card

Tính năng chính

  • LGA1151 socket for 8th/9th Generation Intel® Core™ processor (35W/65W/95W*)
    * If 95W CPU is desired, please select P/N: 10W20X50001X0
  • 4 x 2.5 inch HDD/SSD slot, supports RAID 0/1/5/10
  • Expandable PCIe x16/PCIe x4/PCI slots, perfect for graphics cards
  • Suitable for all kinds of AI applications
  • 1 x Intel® I219-LM GbE PHY and 1 x Intel® I211 Gigabit Ethernet Controller
  • Supports Intel® AMT

Giá sản phẩm: Liên hệ

Lượt xem 48

Được hỗ trợ bởi bộ xử lý Intel® Core™ thế hệ thứ 8/9, PC biên AIEdge-X®500 được tăng cường GPU xử lý nội dung đa phương tiện mạnh mẽ. Nền tảng đáng tin cậy của nó cũng lý tưởng cho việc thu thập video, cung cấp khe cắm mở rộng PCIe x16 có chiều cao full-height, full-length được thiết kế để lưu trữ các loại thẻ khác nhau, chẳng hạn như bộ lấy khung và card đồ họa mạnh mẽ, bao gồm cả NVIDIA RTX 3090. Một khe cắm PCI và một PCIe x4 cho card bổ sung cũng có sẵn. AIEdge-X®500 không chỉ cung cấp hình ảnh tuyệt đẹp để chiếu hình ảnh và đáp ứng nhu cầu về khối lượng công việc hình ảnh nặng, máy tính có thể mở rộng, lý tưởng cho máy AI/học sâu, tối ưu hóa hình ảnh, thị giác máy và các ứng dụng AI khác. PC cao cấp này còn hỗ trợ thêm màn hình HDMI, cổng LAN và cổng USB 3.0, trong khi bốn khe cắm HDD/SSD 2,5" lý tưởng cho các ứng dụng AI cần dung lượng lưu trữ lớn.



Processor

CPU Support

  • 8th Coffee Lake FCLGA1151 i3-8100T 6M 4 4 3.1GHz 35W
  • 8th Coffee Lake FCLGA1151 i5-8500T 9M 6 6 2.1GHz 35W
  • 8th Coffee Lake FCLGA1151 i7-8700T 12M 6 12 2.4GHz 35W
  • 9th Coffee Lake Refresh FCLGA1151 i3-9100TE 6M 4 4 2.2GHz 35W
  • 9th Coffee Lake Refresh FCLGA1151 i5-9500TE 9M 6 6 2.2GHz 35W
  • 9th Coffee Lake Refresh FCLGA1151 i7-9700TE 12M 8 8 1.8GHz 35W
  • 8th Coffee Lake FCLGA1151 i3-8300 8M 4 4 3.7GHz 65W
  • 8th Coffee Lake FCLGA1151 i5-8500 9M 6 6 3.0GHz 65W
  • 8th Coffee Lake FCLGA1151 i7-8700 12M 6 12 3.2GHz 65W
  • 9th Coffee Lake Refresh FCLGA1151 i3-9300 8M 4 4 3.7GHz 65W
  • 9th Coffee Lake Refresh FCLGA1151 i5-9500 9M 6 6 3.0GHz 65W
  • 9th Coffee Lake Refresh FCLGA1151 i7-9700 9M 8 8 3.0GHz 65W
  • 8th Coffee Lake FCLGA1151 i7-9700K 12M 8 8 3.6GHz 95W
  • 8th Coffee Lake FCLGA1151 i9-9900K 16M 8 16 3.6GHz 95W
Memory
  • 2 x 260-pin SO-DIMM sockets, supports DDR4 2400/2666 non-ECC, unbuffered memory up to 64G (single socket max. 32GB)
Storage
  • 4 x SATA 2.5” HDD/SSD with RAID 0/1/5/10M.2 2280 Key M (SATA/PCIe)
Expansion
  • 1 x PCIe x16 slot
  • 1 x PCIe x4 slot
  • 1 x PCI slot
Power
  • 1 x internal 800W ATX power supply
  • Input: 100VAC to 240VAC
  • Output: +12VDC
  • Supports AT/ATX via jumper setting (default: ATX)
Environment
  • Operating temperature: 0°C to 45°C (active cooling design)
  • Storage temperature: -20°C to 80°C
  • Humidity: 10 to 90% (non-condensing)
  • Shock protection: 50G peak acceleration, 11ms according to IEC60068-2-27
  • Vibration protection: Random: 2Grms @ 5~500 Hz, IEC60068-2-64 (with SSD) Sinusoidal: 2G @ 5~500 Hz, IEC60068-2-6 (with SSD)
Certifications
  • CE Approval
  • FCC Class A
  • LVD
I/O Ports

I/O Interface – Internal

  • 3 x COM, supports RS232
  • 6 x USB 2.0 via JST connector
  • 8-Channel GPIO

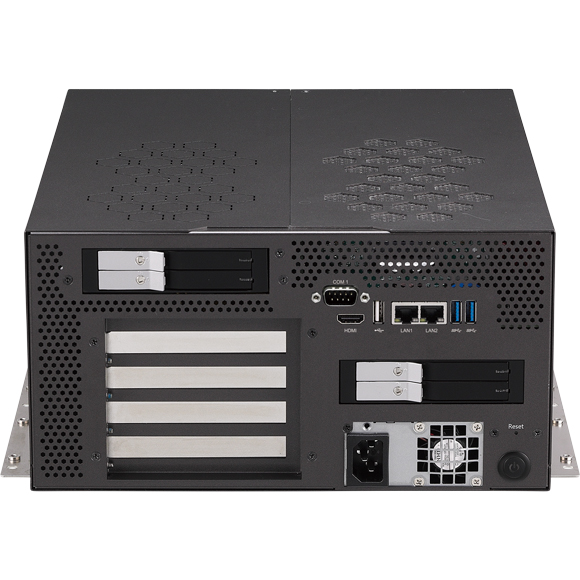

I/O Interface – Front

  • 1 x Power button with LED
  • 1 x Reset button
  • 1 x HDMI 2.0
  • 2 x USB 3.0
  • 1 x USB 2.0
  • 2 x RJ45 with LEDs for Gigabit LAN (Intel® I219-LM GbE PHY and Intel® I211 Gigabit Ethernet controller)
  • 1 x COM4, supports RS232/422/485
Physical Characteristics
  • Dimensions: 360mm x 290mm x 150mm (L x W x H)
Support OS
  • Win10/Linux
Ordering Information
  • AIEdge-X®500 (P/N: 10W20X5000X0)

Industrial AI Computer powered by 8th/9th Generation Intel® Core™ processor, with large storage and optional NVIDIA graphics card, supporting up to 65W CPU



  • AIEdge-X®500 (P/N: 10W20X50001X0)

Industrial AI Computer Powered by 8th/9th Generation Intel® Core™ Processor with large storage and Optional NVIDIA graphics card, supporting up to 95W CPU


AIBooster®-X8 (P/N: 10E000AIB00X0)
Intel® Movidius™ Myriad™ X VPU PCIe deep learning accelerator card with heatsink and bracket

Hãng NEXCOM
Operating System Windows 10, Linux

DATASHEETS
AIEdge-X500-(NVIDIA) nxc.pdf
[ AIEdge-X500-(NVIDIA) nxc.pdf , 0.75MB , May.23.2024 ]
