• 2 x DDR5 4800 SO-DIMM, non ECC, unbuffered, up to 64G, up to 32GB per DIMM

• 1 x M.2 2242 Key M storage for supporting SATA & PCIe signal

• PCIe 4.0 x16

- Compatible with NVIDIA RTX 50 series and Quadro series,
extending up to the optional RTX 6000 Ada
(graphics card not included).
- 3 slots space available for graphics card
- Suggested expansion card dimension within the limit of
340mm (L) x 141mm (W) x 70mm (H)

• 1 x 850W power supplyInput: 100VAC to 240VAC
• Output: +12VDC

• Operating temperature: 0°C~45°C
• Storage temperature: -20°C~80°C
• Humidity: 10%~90% (non-condensing)
• Shock protection: 20G peak acceleration, 11ms according to IEC 60068-2-27
• Vibration protection:

- Random: 2Grms@5~500Hz, IEC 60068-2-64 (with SSD)
- Sinusoidal: 2Grms@5~500Hz, IEC 60068-2-6 (with SSD)

• CE (EMC EN55032 + EN55024)
• FCC Class A (EMI part 15B)
• LVD

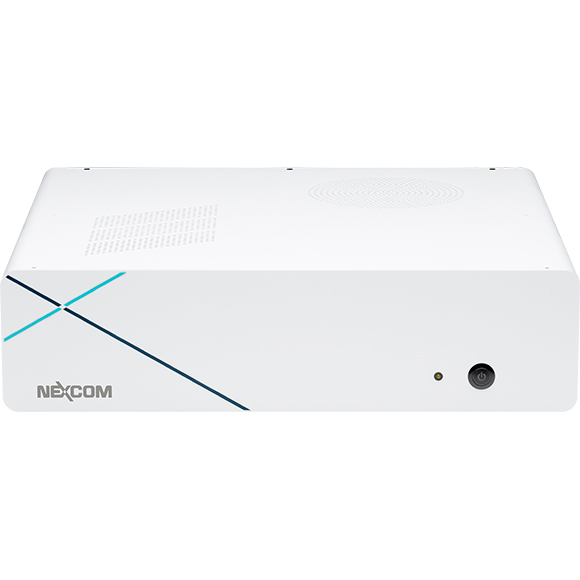

I/O Interface-Front

• 2 x Antenna hole
• 1 x COM port (DB9), supports RS-232/422/485
• 1 x Storage active LEDI/O

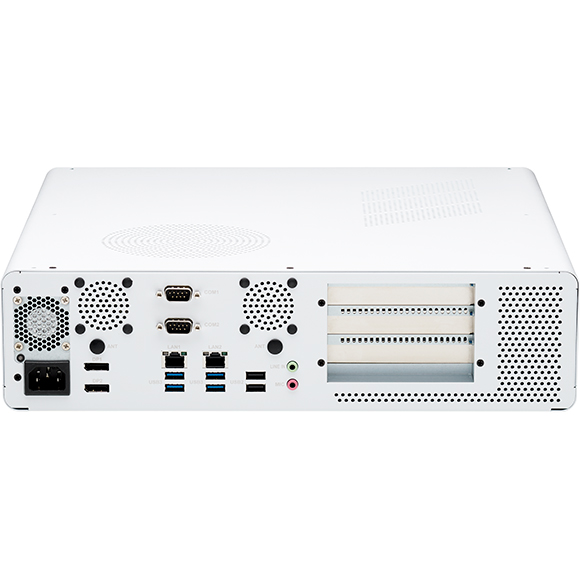

Interface-Rear

• 2 x 2.5GbE RJ45 port with LEDs
• 2 x HDMI® 2.0, up to 3840x2160@30Hz
• 4 x USB 3.2 Gen 2
• 1 x Power button with LED
• 1 x DC in jack with lock

Internal I/O

• 1 x 9-pin header for COM (RS-232, RI/5V/12V)
• 1 x 9-pin header for audio line out
• 2 x 6-pin header for three USB 2.0 ports
• 1 x 10-pin header for GPIO, 4 x GPI, 4 x GPO

• System Unit

- Dimension: 390mm (W) x 380mm (D) x 98.5mm (H)
- Net Weight: 6.7kg/Unit

• Package Carton

- Gross Weight: 7.3kg 1unit/per carton
- Carton dimension: 535mm (W) x 480mm (D) x 196mm (H)

• Windows 10, 64bit
• Linux
