AIEdge-X®300

Industrial AI Computing System at the Edge Powered by Intel® 8th/9th Gen. Intel® Core™ CPU for Optional NVIDIA Graphics Card

Tính năng chính

  • Supports 8th/9th Gen Intel® Core™ i5/i7/i9 and socket type processor up to 65W
  • PCIe slot supports PCIe x16 graphics card up to 160W
  • Validated with NVIDIA RTX 2060 graphics card
  • Industrial AI system compact in size
  • Support optional M.2 module for Wi-Fi and flash storage
  • Support 1 x SATA 2.5” HDD/SSD or 1 x 3.5” HDD/SSD

Giá sản phẩm: Liên hệ

Lượt xem 52

Được trang bị bộ xử lý Intel® Core™ thế hệ thứ 8/9, PC Edge cải tiến GPU AIEdge-X® 300 có thể xử lý nội dung đa phương tiện mạnh mẽ. Ngoài ra, nó còn bao gồm một khe cắm mở rộng cho card đồ họa hỗ trợ GPU NVIDIA RTX 2060 với sức mạnh lên tới 240 Tensor Cores, không chỉ mang lại hình ảnh tuyệt đẹp để chiếu hình ảnh mà còn tối ưu cho máy AI/học sâu. AIEdge-X®300 thực hiện “call to action” bằng các tương tác ảo để tăng sự quan tâm đến sản phẩm và thời gian dừng lại.

AIEdge-X®300, hỗ trợ màn hình HDMI, cổng LAN, cổng USB 3.0 và giao diện RS232/RS422/RS485, là một PC cao cấp lý tưởng để tối ưu hóa phân tích hình ảnh, trình chiếu tương tác, trực quan hóa thông tin, truyền tải thông điệp thương hiệu, khách hàng sự tham gia và hiệu quả quản lý bán lẻ thông minh để tăng sự tương tác của khách hàng và nhận thức về thương hiệu. AIEdge-X®300 cũng có thể hỗ trợ sử dụng trong giáo dục, thực tế ảo và thực tế tăng cường...

Máy tính biên AIEdge-X® 300



Processor
  • CPU support

Socket LGA1151, Intel® 8/9th Generation Core™ i9/i7/i5/i3 processor, 14nm process
- i3-8100T Quad cord, 3.10 GHz, TDP 35W
- i5-8500T 6 cord, 2.10 GHz, TDP 35W
- i7-8700T 6 cord, 2.40 GHz, TDP 35W
- i3-8300 Quad cord, 3.70 GHz, TDP 65W
- i5-8500 6 cord, 3.0 GHz, TDP 65W
- i7-8700 6 cord, 3.2 GHz, TDP 65W
- i3-9100TE Quad cord, 2.20 GHz, TDP 35W
- i5-9500TE 6 cord, 2.2 GHz, TDP 35W
- i7-9700TE 8 cord, 1.8 GHz, TDP 35W
- i9-9900T 8 cord, 2.1 GHz, TDP 35

Memory
  • 2 x 260-pin SO-DIMM sockets Support DDR4-2400/2666 MHz non ECC, un-buffered memory up to 32G (single socket max 16GB)
Storage
  • 1 x SATA 2.5” HDD/SSD or 1 x 3.5” HDD/SSD
  • 1 x M.2 M Key 2280 SSD with SATA/PCIe signal
Expansion
  • PCIe x16 Gen 3 slot (2 slot space available for graphics card)
  • 1 x M.2 E key 2230 supporting Wi-Fi module
Power
  • 1 x 500W flex ATX power supply
Environment
  • Operating temperature: 0°C to 45°C
  • Storage temperature: -20°C to 80°C
  • Humidity: 10% to 90% (non-condensing)
Certifications
  • CE (EMC EN55032 + EN55024)
  • FCC Class A (EMI Part 15B)
  • LVD

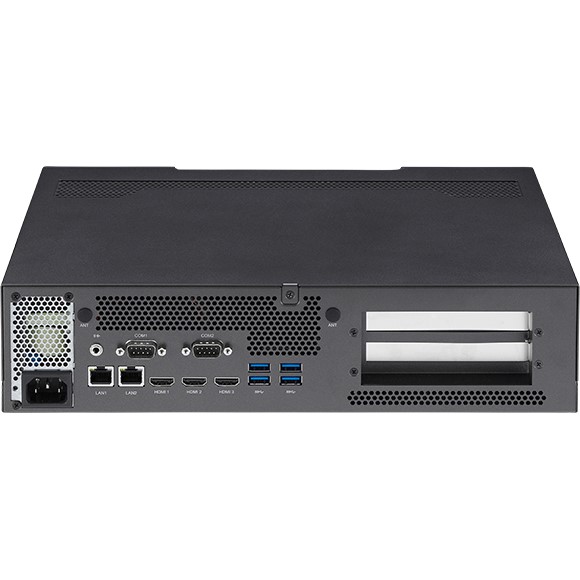

I/O Ports
  • 1 x Power button with LED
  • 1 x HDD LED
  • 2 x Antenna hole
  • 3 x HDMI 2.0
  • 4 x USB 3.0
  • 2 x RJ45 with LEDs for Gigabit LAN (Intel® I219-LM/I211-AT)
  • 1 x COM 1 port RS232/RS422/RS485
  • 1 x COM 2 port RS232
  • 1 x Audio Line-out
Physical Characteristics
  • Dimensions: 360mm (W) x 250mm (D) x 85mm (H)
Internal I/O
  • 2 x RS232 COM port box header
  • 8 Channels GPIO pin header
  • 4 x USB 2.0 pin header
  • 1 x SATA connector
Support OS
  • Win10/Linux
Ordering Information

Barebone

  • AIEdge-X®300 (P/N: 10W20X30000X0)

Industrial AI computing system at the edge powered by Intel® 8th/9th Gen. Intel® Core™ CPU for optional NVIDIA graphics card



Optional
AIBooster®-X8 (P/N: 10E000AIB00X0)
Intel® Movidius™ Myriad™ X VPU PCIe deep learning accelerator card with heatsink and bracket

Hãng NEXCOM
CPU Support Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron®
Operating System Windows 10, Linux

DATASHEETS
AIEdge-X300.pdf
[ AIEdge-X300.pdf , 0.54MB , May.23.2024 ]
