Modal title ModalDatasheet

• 2 x 262-pin DDR5 5200 SO-DIMM, non-ECC, unbuffered, up to 96GB

• 1 x M.2 Key M 2280 for optional SSD (PCIe 3.0 x4, SATA 3.0)

• Intel® Graphics
• 2 x HDMI® 1.4, up to 4096x2160@30Hz

• 1 x M.2 Key E 2230 for optional Wi-Fi module
• 1 x M.2 Key B 3052/2242 for optional 5G/LTE module (PCIe 3.0 x1, USB 3.2, USB 2.0)

• Nominal voltage: DC +12V~24V input

• Temperature

- Ambient with air flow: -20°C~70°C
- Storage temperature: -20°C~85°C

• Relative humidity: 0%~90% (non-condensing)
• Shock protection: 50G peak acceleration, 11ms according to IEC 60068-2-27
• Vibration protection

- Random: 2Grms@5Hz~500Hz, IEC 60068-2-64
- Sinusoidal: 2G@5Hz~500Hz, IEC 60068-2-6

• CE approval (EN 50035 + EN 50032)
• FCC Class A (Part 15B)

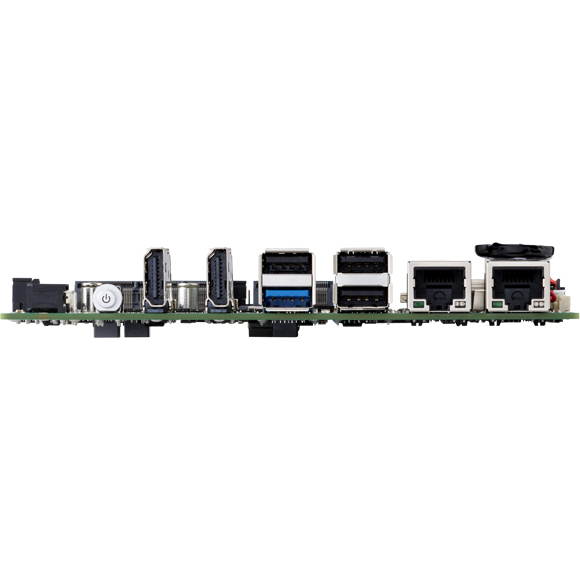

Edge I/O Interface

• 1 x Power button with LED
• 2 x HDMI® 1.4, up to 4096x2160@30H
• z1 x 2.5GbE RJ45 port, Intel® I226
• 1 x GbE RJ45 port, Intel® I219
• 1 x USB 3.2 Gen 1x1, Type-A
• 3 x USB 2.0DC +12V input

Onboard Internal I/O

• 1 x 2-pin EDID connector
• 1 x eDP/LVDS connector, resolution up to 1920x1200@60Hz
• 2 x 6-pin header for USB 2.0 ports
• 2 x 9-pin header for COM port, RS-232/422/485
• 2 x 9-pin header for COM port, RS-232
• 1 x 10-pin header for GPIO, 4 x DI, 4 x DO
• 1 x 4-pin header for 2W/4Ω speaker out
• 1 x 9-pin header supports Mic in and Line out
• 1 x 2-pin header for reset

Dimensions: 146mm (W) x 102mm (D) (5.7” (W) x 4.0” (D))

• Windows 11
• Windows 10, 64bit
• Linux
