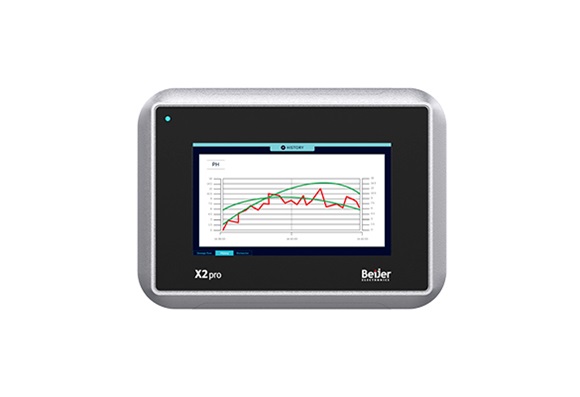

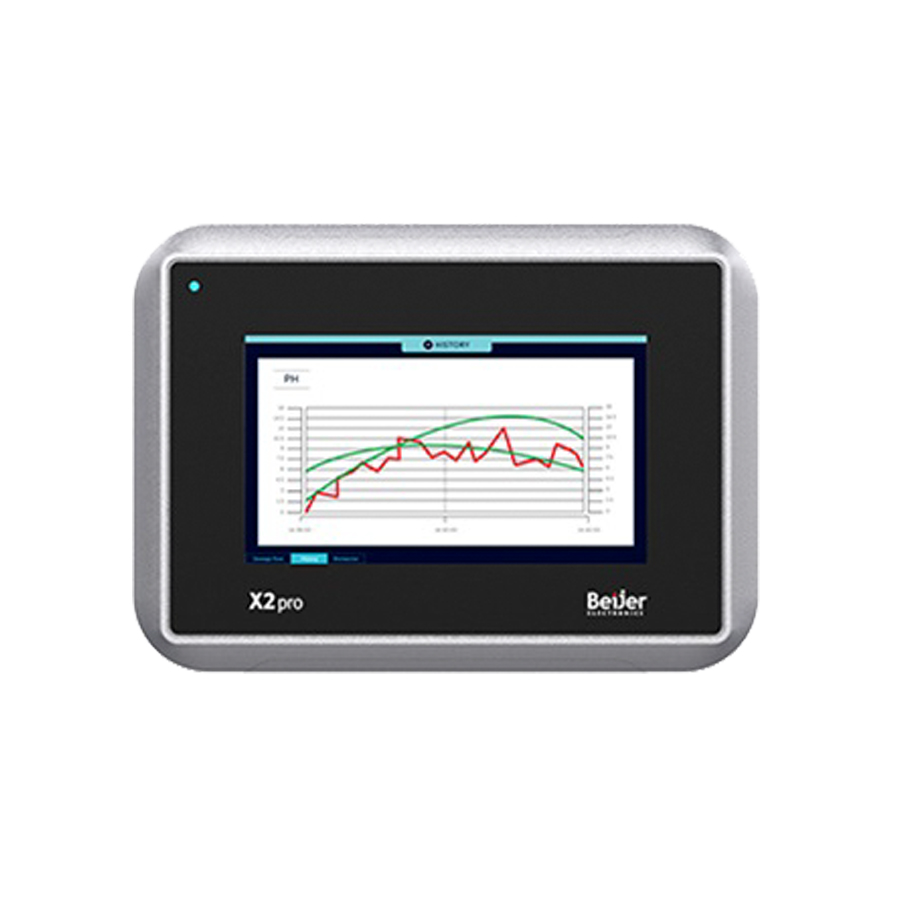

X2 pro 4

4\'\' HMI with iX runtime

Tính năng chính

480 × 272 pixel (16:9)
TFT-LCD touch screen
1.5 GB application memory
Ethernet 1x100 Mbit
-10°C to +60°C operating temperature
CE, FCC, KCC, UL approvals
DNV GL, KR, LR, ABS, CCS, BV, NK, RS marine approvals

Giá sản phẩm: Liên hệ

X2 pro includes a wide range of high-performance industrial HMI panels from ultra-compact 4-inch to 21-inch panels designed for demanding applications. All with the high performance of powerful ARM Cortex-A9 processors, the latest screen technology, and a wide range of connectivity options to cover all your automation needs.

X2 pro also include a number of web HMI panels perfect for enterprises and users who wants to utilize HTML5 web technologies in industrial environments. The X2 web HMI panels enable visualization of the same content across different target platforms such as mobile, tablet, pc, etc. without any conversion or re-engineering.

Processor	CPU: i.MX6Solo Single Cortex-A9 1.0GHz 512kBL2cache
Memory	RAM: 512 MB
Storage	FLASH: 2GB SSD(eMMC), 1.5GB free for application
Display	Size diagonal: 4.3″ diagonal Resolution: 480x272 pixels Backlight: LED Backlight Backlight life time: 50000 hours Backlight brightness: 300 cd/m2 Backlight dimming: Industrial Dimming Display type: TFT-LCD with LED backlight
Expansion	Expansion port: Yes, ciX expansion module SD card: SD and SDHC USB: 1xUSB 2.0 500mA
Power	Input voltage: 24 V DC (18 to 32 VDC)CE: The power supply must conformwith the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supplymust conformwith the requirements for class II power supplies. Power consumption (max): 12W Input fuse: Internal DC fuse
Environment	Operating temperature: -10°C to +60°C Storage temperature: -20°C to +70°C Shock: 15g, half-sine, 11ms according to IEC60068-2-27 Vibration: 1g, according to IEC 60068-2-6, Test Fc Sealing front: IP66, NEMA 4X/ 12 and UL50E Type 4X/ 12 Sealing back: IP20 Humidity: 5% – 85% non-condensed Altitude (max)< 3000m
Certifications	General: CE, FCC, KCC Marine: KR, LR, ABS, BV, CCS, NK, DNV GL, RS Safety: UL 61010-1, UL 61010-2-201, CAN/CSA-C22.2 No. 61010-1, CAN/CSA-C22.2 No. 61010-2-201
I/O Ports	Serial communication Number of serial ports: 1 Port 9pin DSUB Serial port 1RS 232 (RTS/CTS) Serial port 2RS422/485 Serial port 3RS485 (only if COM 2 is RS485) Ethernet communication Number of Ethernet ports: 1 Ethernet port 1: 1x10/100 Base-T (shielded RJ45)
Physical Characteristics	Mechanical size: 145 x 104 x 50mm Mounting option: Panel Mount, VESA 50 x 50 Number of touches: 1million finger touch operations Touch type: Resistive Cut-out size: 130 x 89mm Weight: 0.5 kg Housing material: Powder-coated aluminum, Gray
IP Rating	IP66
Hãng	BEIJER ELECTRONICS
