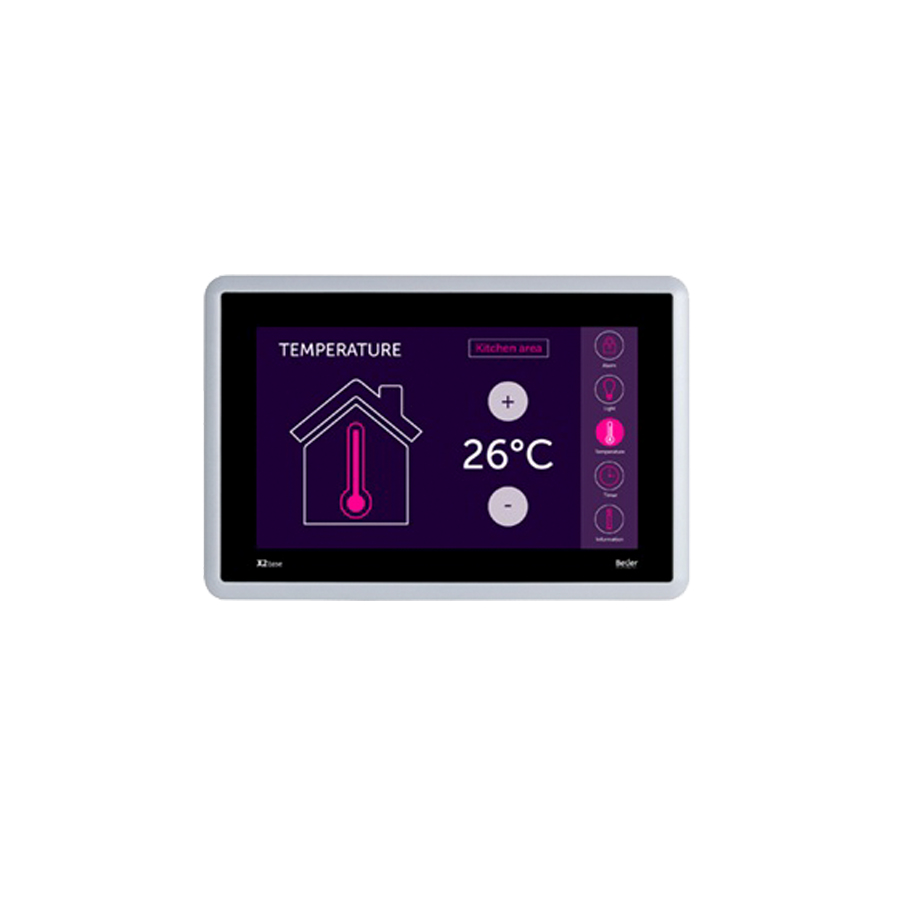

X2 base 10 v2 HP

10\'\' HMI with iX runtime

Tính năng chính

1024 × 600 pixel (17:10)
TFT-LCD touch screen
2 × Ethernet, 6 × serial, 2 × USB as standard
Operating temperature -10° to +50° C
CE, FCC, UL approvals

Giá sản phẩm: Liên hệ

The X2 base family is now updated with the new range of X2 base v2 HMI panels offering improved performance, more display sizes, and an additional range of high-performance HMIs. The X2 base v2 panels are cost-effective industrial HMIs with high-resolution touch screens and modern design. The HMIs combine IP65 corrosion-resistant plastic housing with the full version of the iX software, providing a cost-effective yet advanced HMI solution for small to medium applications.

X2 base v2 HMIs are available in 5, 7, and 10-inch and in 7, 10, and 15-inch high-performance versions.

Processor	CPU: ARM Cortex A8 1000MHz
Memory	RAM: 512 MB
Storage	FLASH: 2 GB
Display	Size diagonal: 10.1" diagonal Resolution: 1024 × 600 pixel (17:10) Backlight: LED Backlight Backlight life time: 30000 hours Backlight brightness: 350 cd/m² Backlight dimming: Industrial Dimming Display type: TFT-LCD with LED backlight
Expansion	Expansion port: No SD card: Yes USB: 2
Power	Input voltage: 24 V DC (18 to 32 VDC) CE: The power supply has to be conform with the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supply has to be conform with the requirements for class II power supplies. Power consumption (max): 8.1 W Input fuse: Internal DC fuse
Environment	Operating temperature: -10°C to +50°C Storage temperature: -20°C to +60°C Shock: 15g, half-sine, 11ms according to IEC60068-2-27 Vibration: 1g, according to IEC 60068-2-6, Test Fc Sealing front: IP65, NEMA 4X/ 12 and UL 50E Type 4X/ 12 Sealing back: IP20 Humidity: 5% – 85% non-condensed
Certifications	General: CE, FCC, UL 61010-2-201 Safety: UL 61010-1, UL 61010-2-201, CAN/CSA-C22.2 No. 61010-1, CAN/CSA-C22.2 No. 61010-2-201
I/O Ports	Digtal IO Digital output: No Serial communication Number of serial ports: 2port9pinDsub, 1port3pinScrew Serial port 1: RS 232 (RTS/CTS) Serial port 2: RS422/485 Serial port 3: RS 485 Serial port 4: RS 232 Serial port 5: RS422/485 Serial port 6: RS 485 Ethernet communication Number of Ethernet ports: 2 Ethernet port 1: 1x10/100 Base-T (shielded RJ45) Ethernet port 2: 1x10/100 Base-T (shielded RJ45)
Physical Characteristics	Mechanical size: 290 x 193 x 40mm Mounting option: Panel Mount Number of touches: 1million finger touch operations Touch type: Resistive Cut-out size: 275 x 177mm Weight: 0.86 kg Housing material: Plastic (PC+ABS), Gray Buzzer: No LED: No
IP Rating	IP65
Size	10" - 11"
Hãng	BEIJER ELECTRONICS
