Màn hình công nghiệp 21" IP65 NEXCOM

Màn hình công nghiệp APPD 2100-2

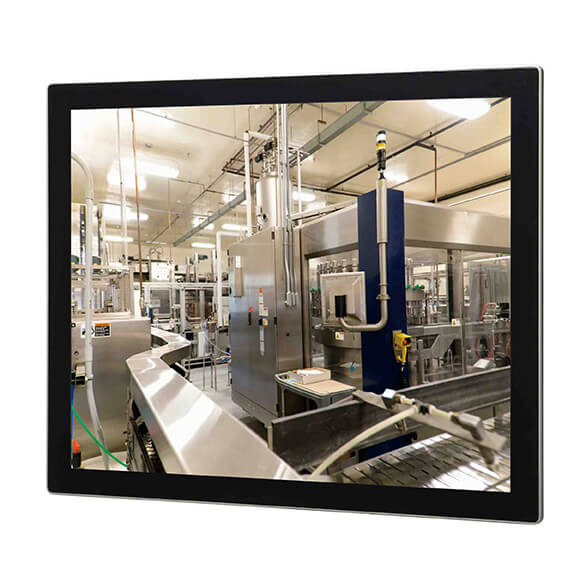

21.5” IP65 Industrial 16:9 FHD LCD Flush Touch Monitor

Tính năng chính

IP65 compliant aluminum front bezel with zero bezel flush front design
7H Hardness 10 points P-Cap multi-touch
Triple display input interface: analog VGA/DVI-D/DisplayPort
Shares identical appearance with the APPC series
Ultra slim in depth
Multiple mounting ways for easy integration

Giá sản phẩm: Liên hệ

The 21.5-inch 16:9 LCD display APPD 2100-2 features a 10-point P-Cap multi-touch screen, 500 cd/m2 brightness, and supports resolutions up to 1920 x 1080. APPD 2100-2 is ideal for space-constrained environments where systems and displays are separated. Its flush panel design with a slim bezel and IP65-rated front panel ensures durability in demanding industrial settings.

APPD 2100-2 offers a variety of video interfaces, including VGA, DVI, and DisplayPort, supporting both digital and analog signals. APPD 2100-2 accepts 24VDC ±20% power input and provides panel mount and VESA mount options for flexible installation. APPD 2100-2 is the perfect companion for NEXCOM NISE fanless computers, NIFE Automation PC series, and APPC panel PCs when a second display is needed.

Rear I/O Interface	Touch screen interface port: USB Type-A Video port: VGA (1 x DB15) / DVI-D (1 x DVI-I connector) / Display PortDC power input connector: 3-pin Phoenix terminal block
Display	Panel LCD size: 21.5”, 16:9 Resolution: FHD 1920 x 1080 Luminance: 500cd/m² Contrast ratio: 1000:1 LCD Color: 16.7M Viewing angle: 89 (U), 89 (D), 89 (L), 89 (R) Backlight: LED Touch Screen: Ten points P-Cap (projected capacitive touch) Touch light transmission: 85% Anti-scratch surface: 7H hardness Touch interface: USB
Environment	Vibration: - 2G@sine, 5~500Hz, 1hr/axis (Panel Mounting operating), IEC 60068 2-6 - 2Grms@random condition, 5~500Hz, 0.5hr/axis (Panel Mounting operating), IEC 60068-2-64 - 1G@sine, 5~500Hz, 1hr/axis (VESA Mounting operating), IEC60068 2-6 - 1Grms@random condition, 5~500Hz, 0.5hr/axis (VESA Mounting operating), IEC 60068-2-64 Shock: - 20G@wall mount, half sine, 11ms (operating), IEC 60068-2-27 Temperature: - Operating temperature: 0°C to 50°C (Ambient with air flow) - Storage temperature: -20°C to 75°COperating humidity: 10% to 90%, non-condensing (limits to beat 90%RH at max 40°C ; limits to be at 44% RH at max 50°C)
Certifications	CE approval (EN 55032, EN 55035) FCC Class A
Physical Characteristics	Color: Black silver IP protection: IP65 front Mounting: panel/wall/stand/VESA 100mm x 100mm Power - Power input: 24V DC ± 20% - Power adapter: optional AC/DC power adapter (24V DC, 60W) Dimension: 524.9mm x 321.2mm x 54.8mm Weight: 6.3Kg
IP Rating	IP65
Size	21.5"
Hãng	NEXCOM

DATASHEETS

APPD2100-2.pdf

[ APPD2100-2.pdf , 0.47MB , Jul.02.2025 ]
