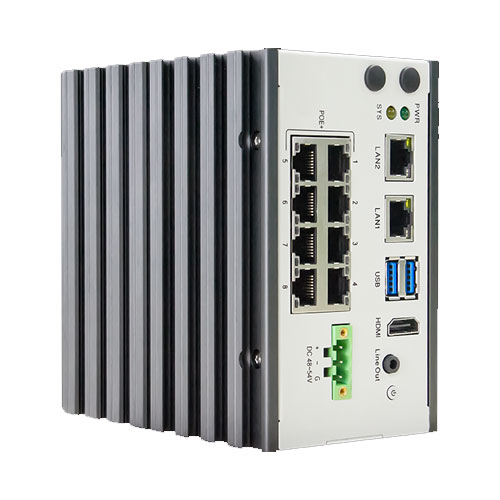

Coeus 3608P

NVIDIA® Jetson Xavier™ NX

Tính năng chính

• Powerful 21 TOPS computing power with NVIDIA® Jetson Xavier™ NX
• Supports multiple AI frameworks including TensorFlow, Caffe, and PyTorch
• Compatible with various AI tools such as TensorRT and DeepStream SDK
• Supports 8 × PoE+ ports, supports 5G, 4G, and Wi-Fi
• Fanless design, supports wide temperature range of -10 to 55°C, wide voltage input range of DC 9 to 30V Rich I/O interfaces, supports wall-mounting and rail installation.

Giá sản phẩm: Liên hệ

Lượt xem 21

Coeus 3608P là máy tính dạng box-pc có thiết kế không quạt với mô-đun NVIDIA® Jetson Xavier™ NX. Nó hỗ trợ PoE x 8 và Accelerated computing lên tới 21 teraflop cung cấp hiệu suất đủ để cho phép người dùng song song hóa nhiều mạng nơ-ron hiện đại và xử lý dữ liệu từ nhiều cảm biến có độ phân giải cao để đáp ứng nhu cầu của hệ thống trí tuệ nhân tạo hoàn chỉnh. Trong thời gian thực, NexRTOS + IGH của chúng tôi có thể giúp bạn phát triển ứng dụng EtherCAT Master và điều khiển động cơ servo & I/O phân tán trong thời gian thực. Đây là giải pháp rất lý tưởng, có thể nhanh chóng tạo ra nguyên mẫu sản phẩm trí tuệ nhân tạo và đẩy nhanh thời gian đưa sản phẩm ra thị trường.

* Thông tin đặt hàng

Coeus 3608P (P/N: 10JD3608P00XH)

  • NVIDIA® Jetson Xavier™ NX, LAN1, COM x 2 (1*DB9 extension), Line Out, USB x 3, HDMI, GPIO (4I & 4O), Micro USB (OTG), M.2 B key (4G/5G), Micro SD, CAN, 9 to 30V DC power supply terminal, indicator light



Processor
  • 6-core NVIDIA® Carmel ARM® v8.2 64-bit CPU
Memory
  • 8GB 128- bit LPDDR4x
Storage
  • 16G eMMC
Front I/O Interface
  • 2 × USB3.0
  • 2 × RJ45LAN
  • 8 × RJ45 PoE+, IEEE802.3at, Single port 30W
  • 1 × HDMI
  • 1 × SYS lamp 1 × PWR lamp
  • 1 × Line Out
  • 1 × Power switch
  • 2 × Antenna reservation
Rear I/O Interface
  • 1 × Power connector
  • 1 × GPIO (4DI & 4DO)
  • 2 × COM (Non-full signal, 1*DB9 form lead, COM1 RS-232/422/485; COM2 RS-232)
  • 1 × OTG
  • 1 × Recovery
  • 1 × Ground screw hole
Expansion
  • 1 × Micro SD
  • 1 × M.2 M-Key 2280
  • 1 × M.2 B-Key 3052 support 5G, 4G
  • 1 × miniPCIe Full-size slot with mSATA support
Power
  • DC 48V
Environment
  • Operating temperature: -10°C to 55°C with air flow
  • Storage temperature: -20°C to 80°C
  • Working humidity: 40°C, 95% no condensation
Physical Characteristics
  • Dimensions: 85.4mm (W) x 137mm (D) x 176mm (H)
  • Installation: wall-mounting and rail installation
Specifications
  • DL Accelerator: 2 × NVDLA Engines
  • Vision Accelerator: 7- Way VLIW Vision Processor
GPU
  • 384-core NVIDIA® Volta™ GPU with 48 Tensor Cores
Hãng NEXCOM
CPU Support NVIDIA® Jetson™

DATASHEETS
Coeus_3608P.pdf
[ Coeus_3608P.pdf , 0.32MB , Mar.26.2024 ]
