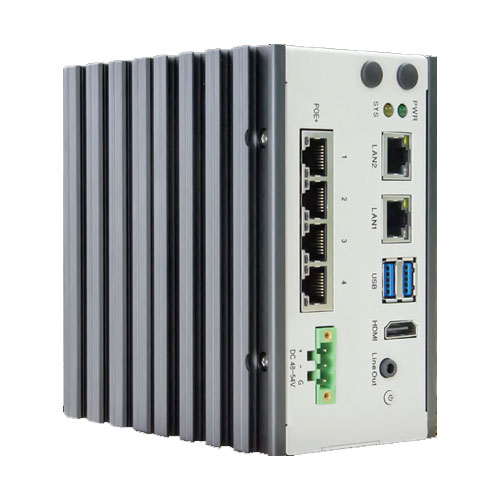

Coeus 3604P

NVIDIA® Jetson Xavier™ NX

Tính năng chính

• NVIDIA® Volta™ architecture with 384 NVIDIA® CUDA® cores and 48 Tensor cores
• Supports 4-way PoE+ network ports, expandable to 5G, 4G, and Wi-Fi
• Compatible with various AI tools such as TensorRT and DeepStream SDK
• Supports multiple AI frameworks including TensorFlow, Caffe, and PyTorch
• Fanless embedded design, -10 to 55°C wide temperature operation, DC 48V input, rich I/O interfaces, supports wall hanging and rail installation

Giá sản phẩm: Liên hệ

Lượt xem 40

Coeus 3604P là máy tính dạng box-pc, thiết kế không quạt với mô-đun NVIDIA® Jetson Xavier™ NX. Nó hỗ trợ PoE x 4 và Accelerated computing 21 teraflop, cung cấp hiệu suất đủ để cho phép người dùng song song hóa nhiều mạng nơ-ron hiện đại và xử lý dữ liệu từ nhiều cảm biến có độ phân giải cao để đáp ứng nhu cầu của hệ thống trí tuệ nhân tạo hoàn chỉnh.
Trong thời gian thực, NexRTOS + IGH có thể giúp bạn phát triển ứng dụng EtherCAT Master và điều khiển động cơ servo & I/O phân tán trong thời gian thực. Đây là giải pháp rất lý tưởng, có thể nhanh chóng tạo ra nguyên mẫu sản phẩm trí tuệ nhân tạo và đẩy nhanh thời gian đưa sản phẩm ra thị trường.

* Thông tin đặt hàng

Coeus 3604P (P/N: 10JD3604P00XH)

NVIDIA® Jetson Xavier™ NX, 2xLAN, 4xPoE, 1xHDMI, 1xLin out, 4xDI, 4xDO, 1xRS232, 1xRS232/422/485, 1xOTG.



Processor
  • CPU Support: 6-core NVIDIA® Carmel ARM® v8.2 64-bit CPU
Memory
  • 8GB 128-bit LPDDR4x
Storage
  • 16G eMMC
Front I/O Interface
  • 2 × USB3.0
  • 2 × RJ45LAN
  • 4 × RJ45 100M PoE+ network ports, IEEE802.3at, Single port 30W
  • 1 × HDMI
  • 1 × SYS indicator light
  • 1 × PWR indicator light
  • 1 × Line Out
  • 1 × Power switch
  • 2 × Antenna reservation
Rear I/O Interface
  • 1 × Power connector
  • 1 × GPIO (4DI & 4DO)
  • 2 × COM (Non-full signal, 1*DB9 form lead, COM1 RS-232/422/485; COM2 RS-232)
  • 1 × OTG
  • 1 × Recovery
  • 1 × Ground screw hole
Expansion
  • 1 × Micro SD
  • 1 × M.2 M Key 2280
  • 1 × M.2 B Key 3052 support 5G, 4G modules
  • 1 × miniPCIe Full-size slot with mSATA support
Power
  • DC 48V
Environment
  • Operating temperature: -10°C to 55°C with air flow
  • Storage temperature: -20°C to 80°C
  • Working humidity: 40°C, 95% no condensation
Physical Characteristics
  • Dimensions: 73.4mm (W) x 137mm (D) x 176mm (H)
  • Installation: Wall-mounting and rail installation
Specifications
  • DL Accelerator: 2 × NVDLA Engines
  • Vision Accelerator: 7-Way VLIW Vision Processor
GPU
  • 384-core NVIDIA® Volta™ GPU with 48 Tensor Cores
Hãng NEXCOM
CPU Support NVIDIA® Jetson™

DATASHEETS
Coeus_3604P.pdf
[ Coeus_3604P.pdf , 0.39MB , Mar.26.2024 ]
