Coeus 3601T

NVIDIA® Jetson Xavier™ NX

Tính năng chính

  • NVIDIA® VoltaTM architecture with 384 NVIDIA® CUDA® cores and 48 Tensor cores
  • Supports multiple AI frameworks including Tensorflow, Caffe, and PyTorch
  • Support TensorRT, DeepStream SDK and other AI tools
  • Support 5G, 4G, Wi-Fi, optional PoE interface expansion
  • Fanless embedded design, DC 9 to 30V wide voltage input, complete I/O interface, supports wall hanging and rail installation

Giá sản phẩm: Liên hệ

Lượt xem 22

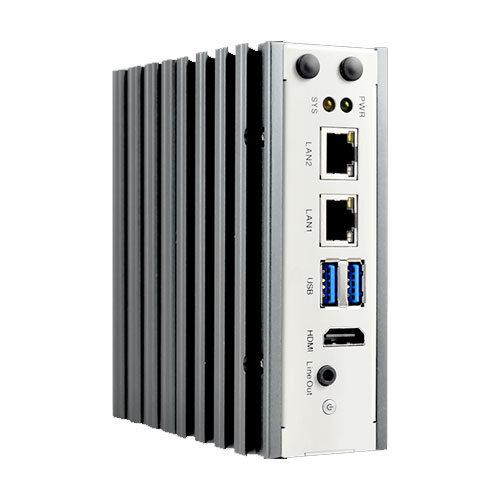

Coeus 3601T là máy tính dạng box-pc thiết kế không quạt với mô-đun NVIDIA® Jetson XavierTM NX. Khả năng tính toán tăng tốc lên tới 21 teraflop cung cấp đủ hiệu năng để cho phép người dùng song song nhiều mạng nor-ron hiện đại và xử lý dữ liệu từ nhiều cảm biến có độ phân giải cao nhằm đáp ứng nhu cầu của hệ thống trí tuệ nhân tạo hoàn chỉnh. Trong thời gian thực, NexRTOS + IGH có thể giúp bạn phát triển ứng dụng EtherCAT Master và điều khiển động cơ servo & I/O phân tán trong thời gian thực. Đây là giải pháp rất lý tưởng, có thể nhanh chóng tạo ra nguyên mẫu sản phẩm trí tuệ nhân tạo và đẩy nhanh thời gian đưa sản phẩm ra thị trường.

* Thông tin đặt hàng

  • Coeus-3601T (P/N: 10JD3601T00XH)

NVIDIA® Jetson Xavier™ NX, 2xLAN, 1xHDMI, 1xLin out, 4xDI, 4xDO, 1xRS232, 1xRS232/422/485, 1xOTG



Processor
  • 6-core NVIDIA® Carmel ARM® v8.2 64-bit CPU
Memory
  • 8GB 128-bit LPDDR4x
Storage
  • 16G eMMC
Front I/O Interface
  • 2 × USB3.0
  • 2 × RJ45LAN
  • 1 × HDMI
  • 1 × PWR indicator light
  • 1 × SYS indicator light
  • 1 × Line Out
  • 1 × Power switch
  • 2 × Antenna reservation
Rear I/O Interface

I/O Interface - Bottom

  • 1 × Power connector
  • 1 × GPIO (4DI & 4DO)
  • 2 × COM (Non-full signal, 1*DB9 form lead, COM1 RS-232/422/485; COM2 RS-232)
  • 1 × OTG
  • 1 × Recovery
  • 1 × Ground screw hole
Expansion
  • 1 × Micro SD
  • 1 × M.2 M Key 2280
  • 1 × M.2 B Key 3052 support 5G, 4G modules
  • 1 × miniPCIe Full-size slot with mSATA support
Power
  • DC 9 to 30V
Environment
  • Operating temperature: -10°C to 55°C with air flow
  • Storage temperature: -20°C to 80°C
  • Working humidity: 40°C, 95% relative humidity, no condensation
Physical Characteristics
  • Dimensions: 52.4mm (W) x 137mm (D) x 176mm (H)
  • Installation: wall-mounting and rail installation
Specifications
  • DL Accelerator: 2 × NVDLA Engines
  • Vision Accelerator: 7-Way VLIW Vision Processor
GPU
  • 384-core NVIDIA® VoltaTM GPU with 48 Tensor Cores
Hãng NEXCOM
CPU Support NVIDIA® Jetson™

DATASHEETS
Coeus_3601T.pdf
[ Coeus_3601T.pdf , 0.28MB , Mar.26.2024 ]
